Redarc Smart Start SBI12KIT Quick Start Manual
12v dual battery isolator & wire kit
Hide thumbs
Also See for Smart Start SBI12KIT:
- Install manual (16 pages) ,
- Manual (4 pages) ,
- Quick start manual (4 pages)
Advertisement

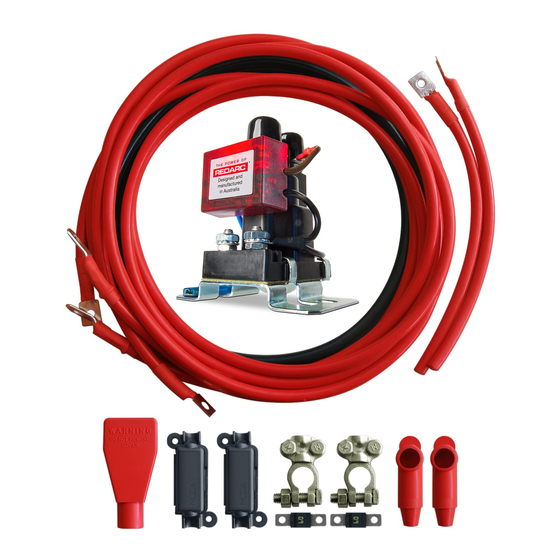

KIT CONTENTS
1. 200mm Battery Positive
cable (red)
2. 1800mm Battery Positive
cable (red)
3. Fuses (60A)
4. Fuse holders (incl.
mounting nuts)
5. Battery Terminals
6. Isolator Terminal protectors
7. SBI12 Battery Isolator
8. 750mm Auxiliary battery
ground cable (black)
9. Battery terminal protector
for Auxiliary Battery
Positive Terminal.
1. REMOVE Main Battery Earth *
2. Place fuses in fuse holders and attach red cables as shown in diagram A.
Numbers refer to
the contents list
1
12V Dual Battery Isolator & Wire Kit
SBI12KIT
FUNCTION
×2
The Smart Start
SBI12KIT) comes with everything required to install your Smart
Start
Dual Battery Isolator, including the Smart Start
®
×2
Perfectly suited to the Do-It-Yourself installer, the SBI12KIT
×2
requires no crimping or soldering, it's just plug and play.
×2
The SBI12KIT features high quality MTA 60 Amp fuses and fuse
holders with the corresponding ring terminals already attached to
the wires.
×2
×2
×1
9
×1
6
4
×1
Please refer to the Smart Start
2
3
4
Dual Battery Isolator & Wire Kit (part number
®
1
2
7
SBI Manual for more info.
®
itself.
®
5
3
8
