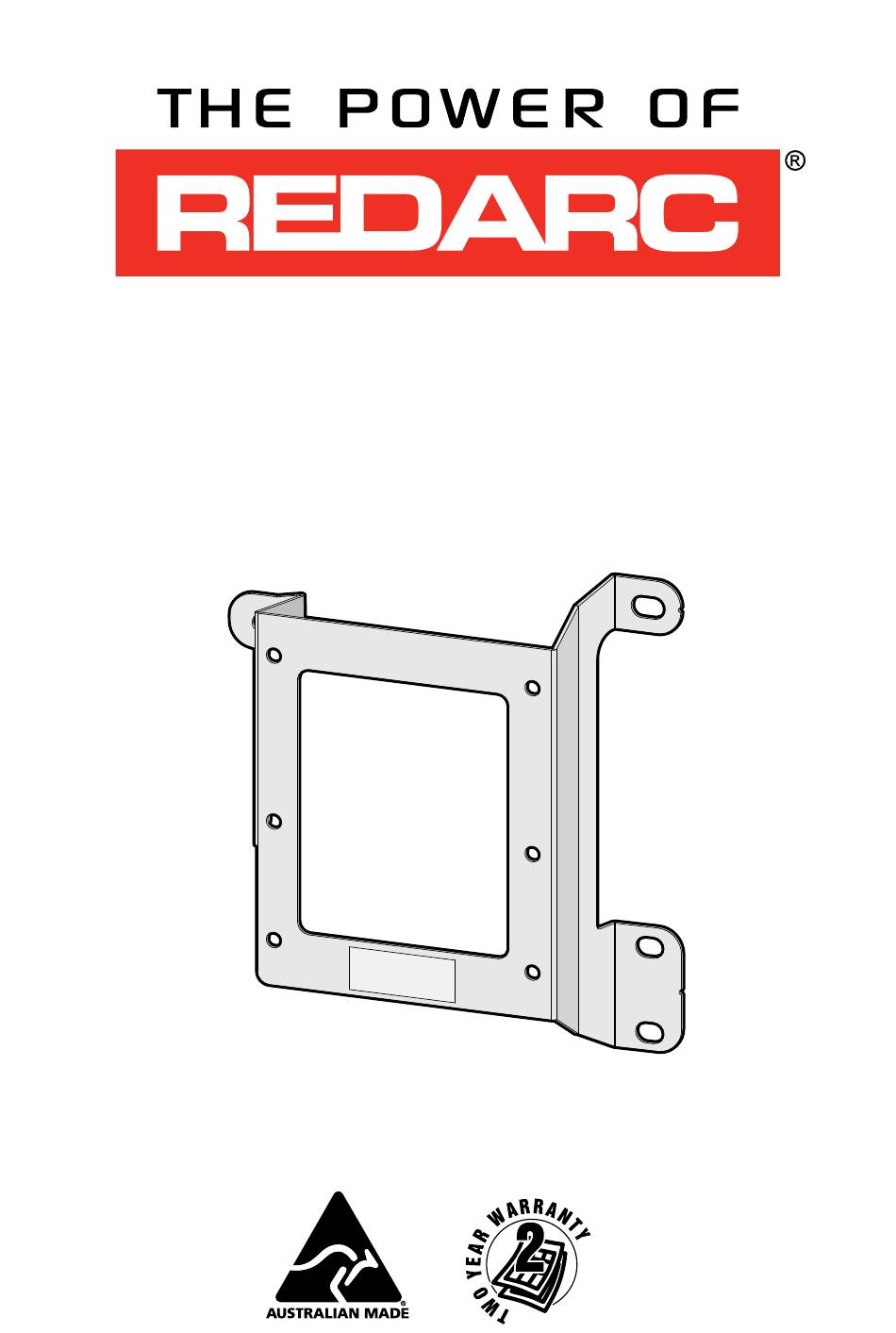

- Page 1 BCDC Mounting Bracket SUITABLE FOR Mitsubishi Triton MR Diesel (2019 – On) Mitsubishi Pajero Sport QF (2019 – On) BCDCMB-009...

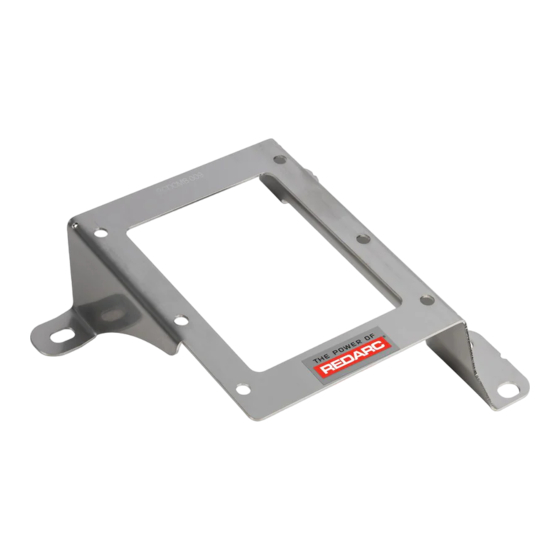

- Page 2 THE BCDC MOUNTING BRACKET The REDARC BCDC Mounting Bracket is designed to install your BCDC in the cool airflow at the front of your vehicle, away from high temperature areas for maximum performance. The BCDC Mounting Bracket is constructed from durable stainless steel and has been designed to fit existing mounting points in your vehicle for ease of installation.
- Page 3 KIT CONTENTS PART DESCRIPTION BCDCMB-009 BCDC Mounting Bracket Installation Template M6 × 20 Hex Bolt M6 × 12 Pan Head Bolt M6 Nylon Locking Nut M6 Flat Washer M6 Spring Washer YOU WILL ALSO NEED: #3 Phillips screw driver 10 mm socket wrench For this installation, the listed items and tools (or their equivalents) are required.
- Page 4 COMPLETED INSTALLATION The installed BCDCMB-009 Mounting Bracket locates on the passenger side of the radiator. INSTALLATION STEP 1 Remove the 11 clips from the upper plastic shroud. To do this, unscrew the centre before pulling upwards.
- Page 5 INSTALLATION STEP 2 4 × M6 × 12 Pan Head Bolt 4 × M6 Flat Washer 4 × M6 Nylon Locking Nut Fit the BCDC unit to the Mounting Bracket using the supplied M6 hardware using a #3 Phillips screw driver and a 10 mm socket wrench or equivalent.
- Page 6 INSTALLATION STEP 3 (OPTIONAL) It is not necessary to remove the grille to complete the BCDC installation, however if installing additional accessories at the same time, removing the grille may be helpful. To do this, remove the two partially concealed clips located at each end of the grille before lifting the grille away from the bumper.
- Page 7 (1 × bolt and 2 × nuts) removed in Step 4 to their original locations. Fix the top left of the bracket using the remaining supplied M6 hardware. STEP 6 To complete the installation, use a suitable REDARC Fuse Kit and follow the instructions as per the BCDC Instruction Manual.
- Page 8 INSTALLATION STEP 7 In order to view the BCDC display panel LEDs, a slot must be cut out of the plastic panel before it is refitted to the vehicle. 1. Cut out the template along the solid black line. 2. Place template with the red arrow towards the engine. 3.
- Page 9 NOTES...
- Page 10 NOTES...
- Page 11 2 Year Limited Warranty For full warranty terms and conditions, visit the Warranty page of the REDARC website. Refer to the web address and contact details applicable to your region. Australia, New Zealand & Europe North America www.redarc.com.au redarcelectronics.com REDARC Electronics Pty Ltd...
- Page 12 For product and technical support contact your regional distributor, call our head office between 8:00 a.m. to 5:30 p.m. Australian Central Standard Time, Monday to Friday, or send us an e-mail. Australia (and other Global regions) power@redarc.com.au www.redarc.com.au +61 8 8322 4848 New Zealand power@redarcelectronics.co.nz...
