Safety
This device must be installed and maintained only by qualified, trained personnel. Observe the safety requirements of
EN 60950-1. Operate the sensor only with an SELV supply with a limited output of up to 100 W. Use a T2.5 A fuse, for example, to
reliably limit the power output.
Use standard electrostatic discharge precautions when handling sensitive components.

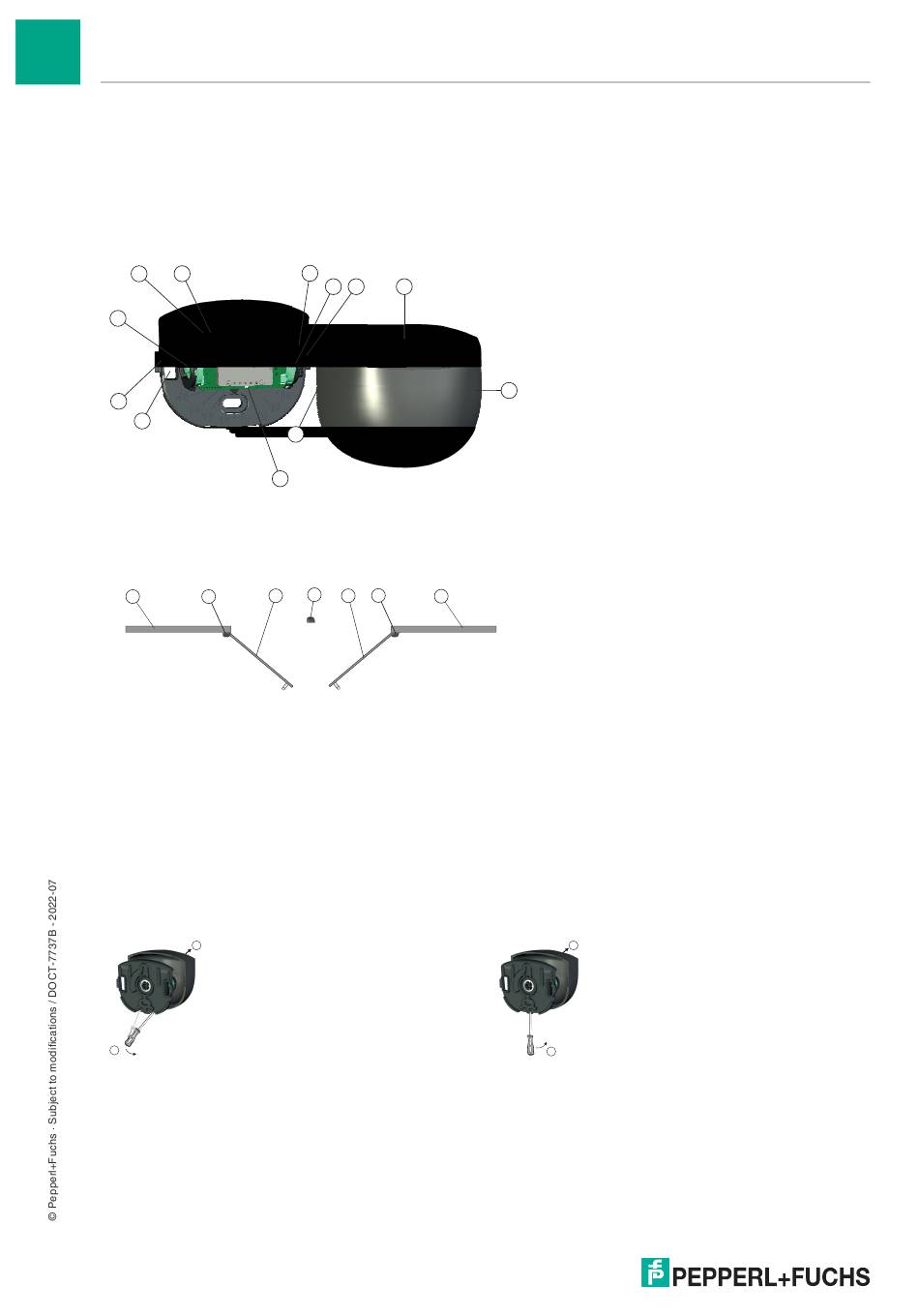

Description
2 3
1
6
4
Application
Installation Notes for Double Swing Door
3
1 2
Mount the sensor (2) facing the opening door blade directly above the hinge. Preferably, use ECHO-D narrow at the door hinge
side. The sensor is slightly tilted towards the door, approximately 20°.
To ensure that the moving door blade is suppressed, enable cross-traffic suppression.
There are no restrictions for the sensor (4) facing away from the door.
Installation Notes for outdoor installation or close to fluorescent lamps
Turn on Immunity to suppress influences from rain, vibration and fluorescent lamps.
Installation Notes for cross traffic suppression
Tilt the sensor between 30° ... 45°.
Removing the Cover
Before wall mounting
2
1
Refer to "General Notes Relating to Pepperl+Fuchs Product Information"
Pepperl+Fuchs Group
www.pepperl-fuchs.com
4
5 6 7
6
8
4
3 2
1
Tel: +49 621 776-0
E-Mail: info@de.pepperl-fuchs.com
1 Push button, left: -
2 Push button and detection indication: LED
green
3 Push button indication: LED yellow
4 Cable entry (default)
5 Push button, right: +
6 Side cable entry (optional)
6
7 Cover
8 Detection: LED green
1 Wall
2 ECHO-D (narrow)
3 Door
4 ECHO-D
After wall mounting
2
1
1
