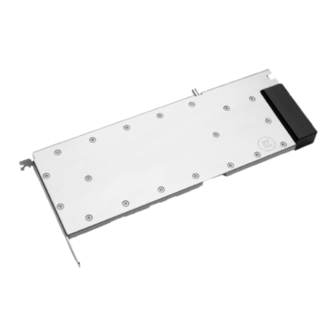

ekwb EK-PRO GPU WB RTX A100 80GB User Manual

Gpu water block
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EK-PRO
GPU WB RTX A100 80GB
GPU WATER BLOCK
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-PRO GPU WB RTX A100 80GB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ekwb EK-PRO GPU WB RTX A100 80GB

Summary of Contents for ekwb EK-PRO GPU WB RTX A100 80GB

  • Page 1 EK-PRO GPU WB RTX A100 80GB GPU WATER BLOCK USER GUIDE...
  • Page 2 Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process. Remove your graphics card from the computer for the safest mounting process to prevent any possible damage to your GPU or its circuit board (PCB).

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING YOUR GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE WATER BLOCK CHECKING THE CONTACT IN CASE OF HIGH TEMPERATURES INSERTING THE GRAPHICS CARD INTO THE CHASSIS...

  • Page 4: Box Contents

    BOX CONTENTS Washer POLYAMID M2.5 0.7mm Screw UNC 6/32x5 (1x) 8483 with self-adhesive tape (2x) 8627 EK-Pro GPU WB RTX A100 Ni +Inox (1x) Thermal PAD G 1.0mm - (120x24mm) 3831109847961 (2x) 3830046996770 EK-TIM Ectotherm (1g) (1x) 3830046998446 Screw M2.5x8 ax1 (2x) 8104A Thermal PAD F 1.0mm - (120x16mm) Screw M3x6 ISO 14581 - TX-INOX (2x) 3830046996732...

  • Page 5: Water Block Dimensions

    WATER BLOCK DIMENSIONS 14 mm 267 mm 19.5 mm 278.4 mm - 5 -...

  • Page 6: Technical Specifications And Water Block Parts

    TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Position Description Quantity 105670 055 - alu - RTX A100 80GB coldplate 105671 055 - top acetal - A100 80GB insert 5028 OR 5 x 1.5 5196 OR 180 x 2 103090 Screw M3 x 6 ISO 14581 - TX-INOX 100845 Distancer M4/M2.5 x 2.5 - HEX 103767 top acetal - FC terminal Direct (2x G1-4)

  • Page 7: Preparing Your Graphics Card

    PREPARING YOUR GRAPHICS CARD STEP 1 REMOVING THE STOCK COOLER Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the EK-Pro GPU RTX A100 water block onto the graphics card.

  • Page 8: Cutting And Placing Thermal Pads

    CUTTING AND PLACING THERMAL PADS Your GPU water block comes with un-cuted thermal pads to cover all the VRM components, such as COILs, MOSFETs, and drivers. Please Thermal Pad F 1.0 mm use 1,0mm thick thermal pads which should be placed on the water block, as illustrated below.

  • Page 9: Installing The Water Block

    INSTALLING THE WATER BLOCK STEP 1 PLACING THE BLOCK ON THE GRAPHICS CARD This procedure is the same for all full-cover water blocks. Carefully position the water block with preinstalled standoffs on the graphics card. During this process, make sure you have aligned mounting holes of the PCB with holes of the water block.
  • Page 10 STEP 4 Secure power cable with mounting it into included inox power adapter. STEP 4a Stick the two included plastics pads (M3) on to inox power addapter as shown on picture. STEP 4b Insert 8-pin power connector in to the inox adapter. Pads on the power adapter must be alligned with openings in inox power adapter.

  • Page 11: Checking The Contact In Case Of High Temperatures

    In case you fail to obtain good contact, please check again or contact our support service at https://www.ekwb.com/customer-support/. INSERTING THE GRAPHICS CARD INTO THE CHASSIS Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCI express expansion slot.

  • Page 12: Testing The Loop

    TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components.

  • Page 13: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
