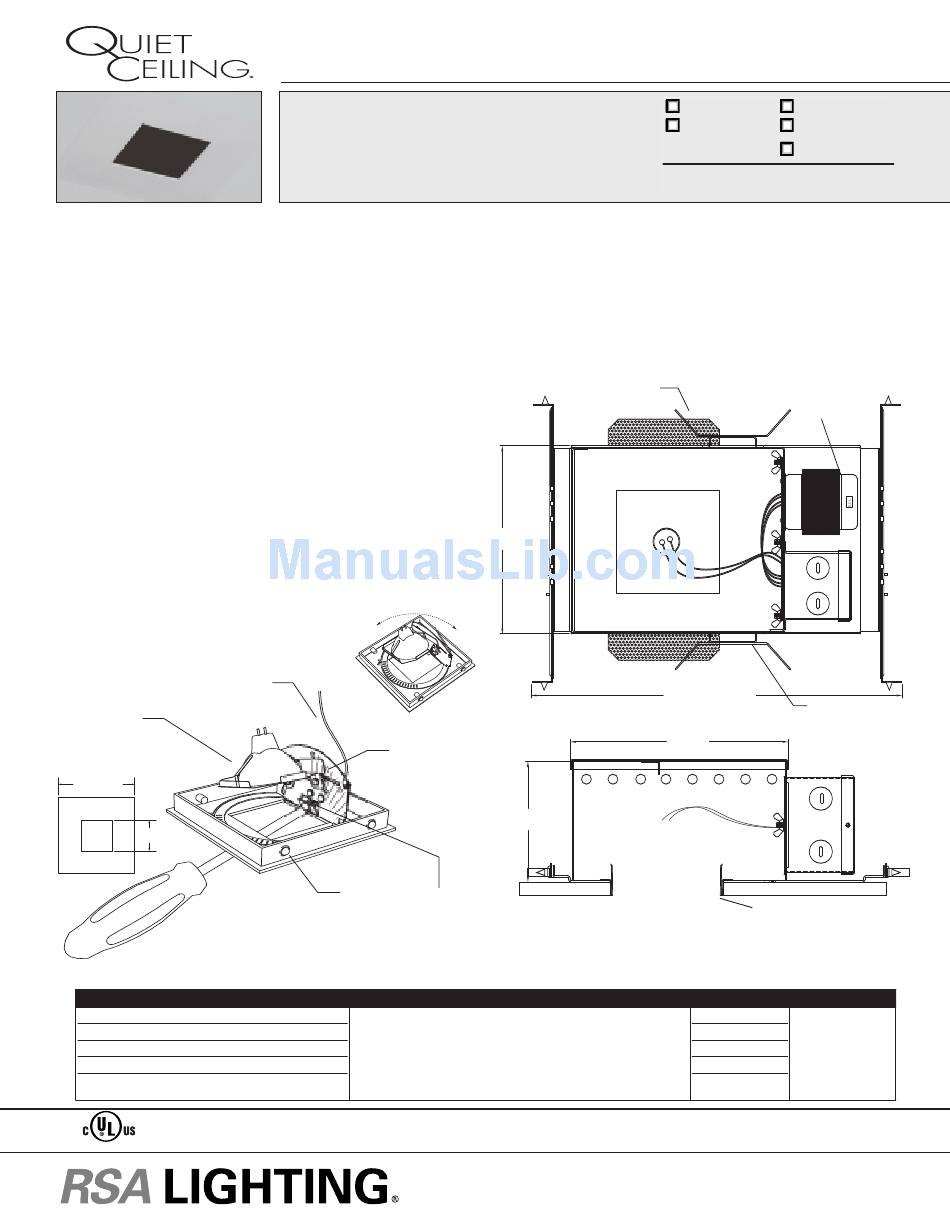

RSA Lighting QCT-1875BK Specification Sheet

DESCRIPTION:
Recessed square trimless fixture. 360
rotational adjustability and 45
o
to 45 tilt) angle adjust with angle locking
mechanism in trim.
ELECTRICAL:
120V input, 12V output. Junction box is
U.L. listed for through branch wiring.
CONSTRUCTION:
Housing and plaster frame: 18 gauge CRS
Trim ring, j-box and hanger assemblies:
16 gauge CRS.
SYSTEM PROTECTION:
Thermal protection provided to guard
against overheating and misuse of insu-
lation over and around fixture. Vent holes
in housing provide cooler operation.
Lamp holder can accept
up to three (3) optical
accessories
4.00" sq.
1.69" sq.
HOT AIMING lamp
adjustment with a regular
phillips screwdriver
Item #
QCT-1875WH / QCT-907-SP
QCT-1875BK / QCT-907-SP
QCT-1875S / QCT-907-SP
QCT-1875SS / QCT-907-SP
QCT-1875PM / QCT-907-SP
For 277 volt transformer add "277" to end of item #.
Suitable for Damp Location.
Type:
4" Adjustable Square Trimless Fixture
w/ Hot Aiming Adjustability
Special Ceiling Housing - 4.75" Height
12V Bi-Pin Base MR16 Lamp 75 Watts Max.
SPECIAL CEILING HOUSING
o
• SUITABLE FOR SPECIAL CEILING TYPES SUCH AS WOOD OR MARBLE
o o
(0 vertical
• APERTURE RING DEPTH IS FACTORY CONFIGURED TO ACCOMMODATE
SPECIFIED CEILING THICKNESS UP TO 1-1/2"
• HOUSING REQUIRES PRECISE 4.141" DIAMETER CEILING CUT-OUT FOR
ROUND TRIM OR 4.141" X 4.141" CEILING CUT-OUT FOR SQUARE TRIM
Hanger Bars extend from
14.00" to 25.25" max.
Internal rotation
ring with locking
adjustment.
Provides 360º
rotation.
Steel Safety
Cable
Angle
Indicators
Ball
Detent
Retainers
Description
Quiet Ceiling Series Adjustable Square Trimless Fixture
with Special Ceiling Housing w/ Magnetic Transformer
For 277 Volt Transformer, add '277' to the end of the catalog number.
Project:
Perforated flap for secure
drywall installation
7.25"
4.63"
45º locking rack & pinion angle
adjustment mechanism
w/ Hot Aiming feature
RSA LIGHTING 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2004 RSA Lighting All Rights Reserved • Specifications subject to change without notice.
QCT-1875WH QCT-1875BK
QCT-1875S QCT-1875SS
QCT-1875PM
w/ QCT-907-SP Housing
Magnetic
Transformer
13.25"
Butterfly Brackets
for commercial
8.25"
installations
Housing is factory
pre-configured to
accommodate special ceiling
materials and thicknesses
Finish Voltage / Wattage
White 12V / 75W Max.
Black
Silver
Stainless Steel
Primer
REV 062904
QC10
