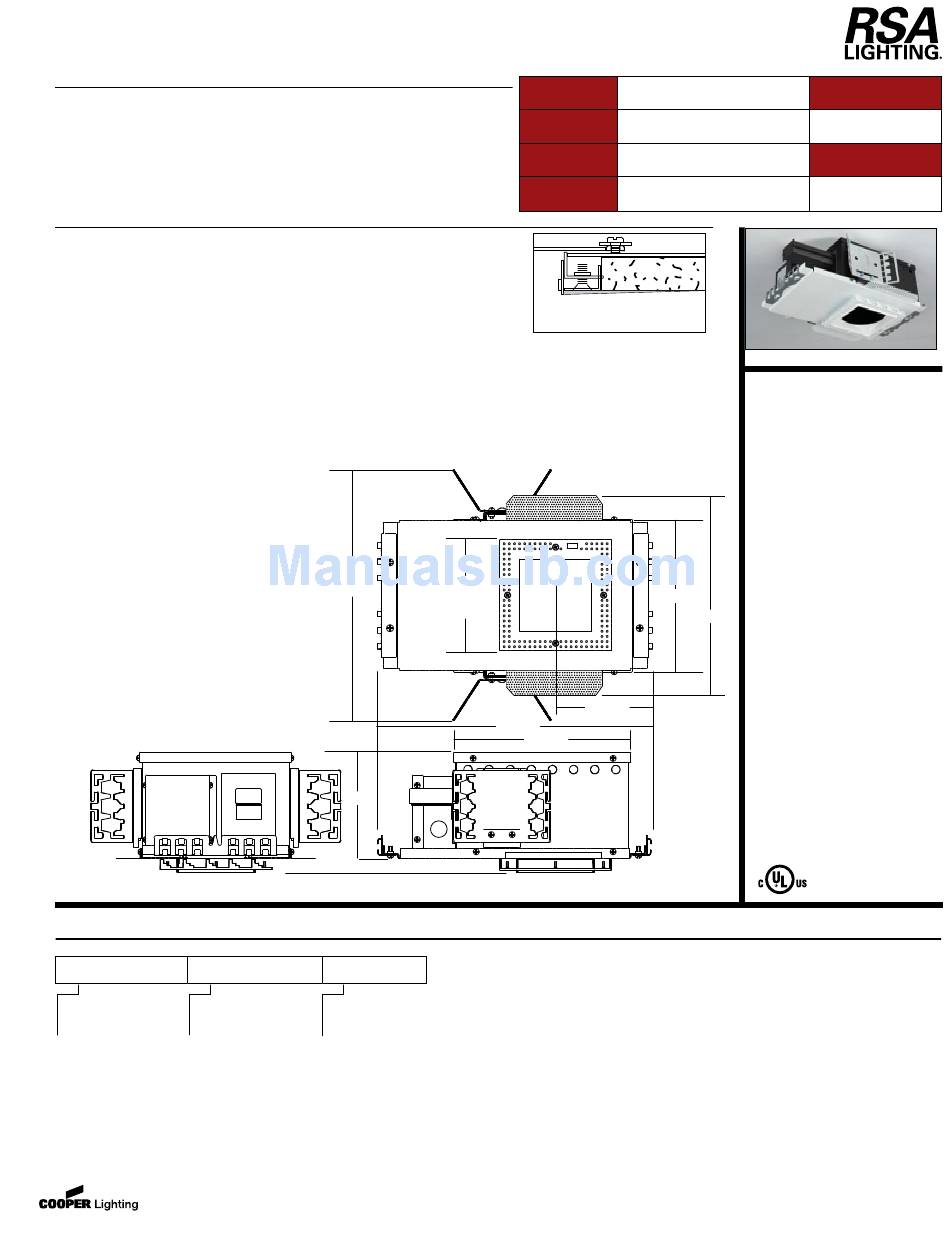

RSA Lighting Mini Quiet Ceiling Trimless QCM510MH Specifications

DESCRIPTION

New construction housing for Mini Quiet Ceiling small aperture square
trimless fixtures (QCM5101, QCM5102, QCM5103, QCM5104).
For new construction non-I.C. applications. Insulation must be kept 3"
from all sides and at least 1" above the housing.

SPECIFICATION FEATURES

A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable trimless mud-ring can
accommodate 1/2", 5/8", 3/4" & 1" ceiling
thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and metal halide ballast.
120V input. Junction box is U.L. listed for
through branch wiring. Includes five 1/2
trade size knockouts.
D ...Lamp
CMH MR16 20W or ES16 BriteSpot 39W
Internal rotation ring with
(not included).
locking adjustment. Provides 360º rotation
of trim and secures original trim position
after relamping. GX10 twist-lock lamp
socket.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively. Perforated
flaps for secure drywall installation.
Ceiling Cut-Out: 5.50" sq.

ORDERING INFORMATION

QCM510MH
__
Housing Metal Halide Ballast
QCM510MH =
20 =
Mini Quiet Ceiling
39 ES16 BriteSpot 39W
=
New Construction Housing
for Square Trim
w/Integral Ballast
www.cooperlighting.com
12.00"
4.63"
0.5" - 1.0"
__
Voltage
CMH MR16 20W
120 = 120 volts primary
277
= 277 volts primary*
*Consult factory for 277V ballast availability.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Ceiling mudding compound is applied
right to the edge of the fixture.
Ceiling
Cut-Out
5.50"sq.
4.63"
13.00"
8.18"
Type
Date
QUIET CEILING
TRIMLESS
QCM510MH
New Construction
for Square Trim
FOR CMH MR16 20W
7.25"
or ES16 BriteSpot 39W
9.75"
MINI
Housing
rev. 091806
