RSA Lighting Combolight MR11 Specifications

DESCRIPTION

An adjustable Multi-lamp Recessed fixture for trimless installation suitable for
downlighting and accent applications. Utilizes TWO (2) 12V MR11 lamps.
For new construction applications. Insulation must be kept 3" from all sides
and at least 1" above the housing.

SPECIFICATION FEATURES

A ... Housing
Housing, junction box & trimless
meshplate assembly are all steel
construction. Perforated meshplate allows
for trimless installation in drywall/plaster
ceilings by allowing the ceiling's mudding
compound to be applied right up to the
edge of the fixture opening. Includes
a beveled "knife-edge" lips to ensure a
clean edge. Can accommodate 0.50" to
1.25" ceiling thickness. Optional Chicago
Plenum configuration available.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through
NOTES:
De-Rated wattage labels are available.
12V Primary voltage is available.

ORDERING INFORMATION

C2
Configuration
C2
= COMBOLIGHT
Recessed Two (2) Light
Housing
N New Construction
=
C
= Chicago Plenum
www.cooperlighting.com
branch wiring, 6 #12 90º C supply
conductors or 60º C for end of run. The
fixture is also UL listed as 'access above
ceiling not required'.
D ... Electrical
Electrical accessible through ceiling
opening. J-Box located on the side wall
of the housing behind removable access
doors. Integral electronic or magnetic
low voltage transformers on individually
removable "trays" for easy maintenance.
May also be configured for remote power.
E ... Lamps
Two (2) 12V MR11 lamps mounted in
adjustable double gimbals. Lamp holders
are individually removable and may be re-
gressed 1" for additional cut-off. Lamp can
accept up to three optical accessories (i.e.
lens + hex louver + snoot). 45º x 45º locking

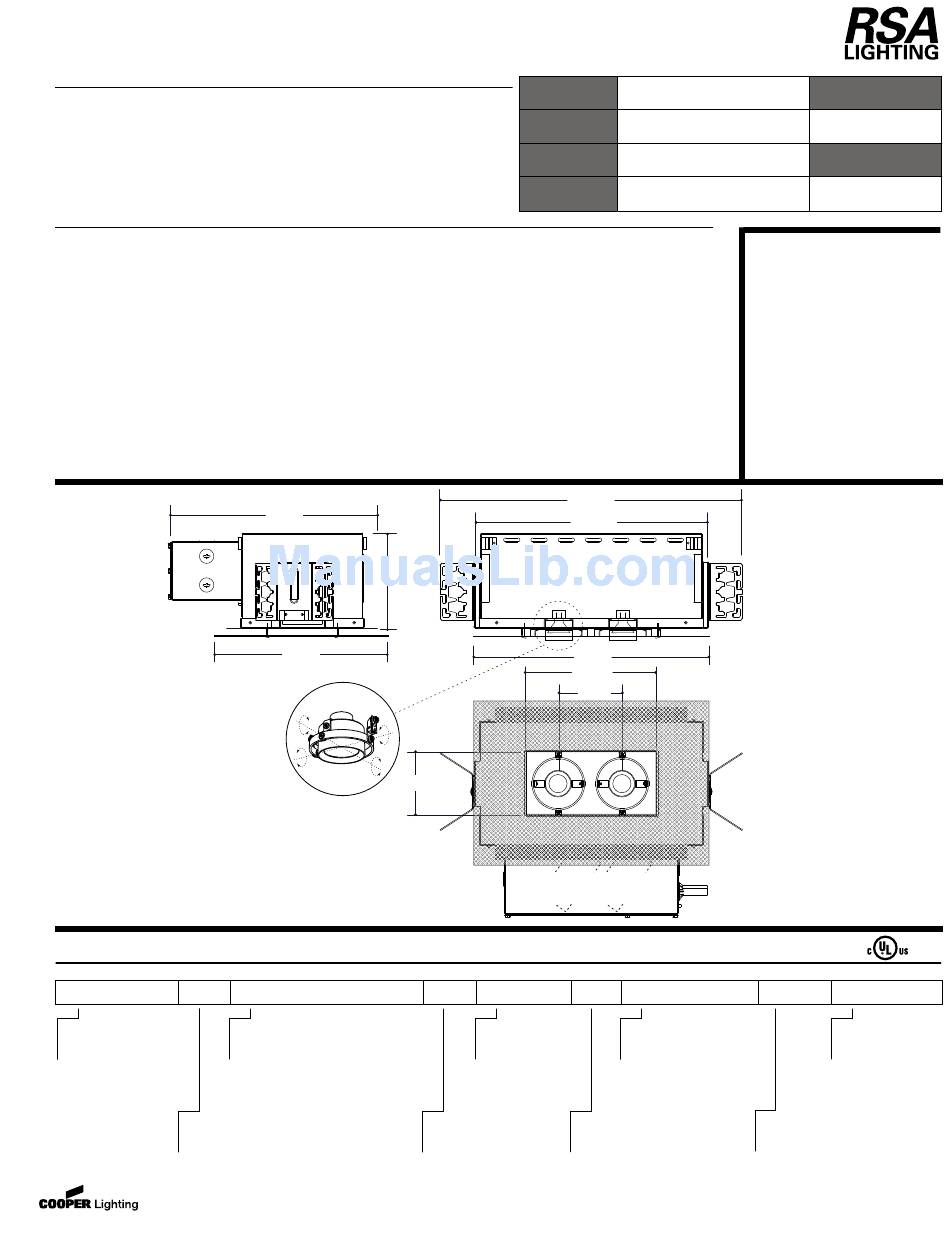

13.19"
5.75"
10.24"
Double
Gimbal
45º x 45º
3.88"
Adjust
Lamp Type / Wattage Label
020M11 = 20 Watt max. MR11 12V
035M11 35 Watt max. MR11 12V
=
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
lamp adjustment. Beveled-edge lamp ring
is secured with threadless, bayonet action.
Optional retractable arm is available for
lamp pulldown and extreme aiming.
F ... Mounting
Butterfly Brackets accept 1/2" EMT,
C Channel, Tbar fasteners, and bar
hangers. Four tabs on housing for
securing to structure. Perforated flaps
along housing sides for securing trimless
insert to fixture and drywall.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 4.67" x 8.55"
18.20"
14.07"
14.11"
7.75"
3.88"
Integral Low Voltage
Transformers
N
Power Supply
Voltage
1 120V
=
2 = 277V
Power Supply
Trim Insert
E Electronic Low Voltage
= N = Trimless
Transformer
M Magnetic Low Voltage
=
Transformer
COMBOLIGHT
Multi-Lamp Fixture
New Construction
Perforated
Meshplate
Thermal
Protector
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door/Sleeve
Finish
W
= White
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
Two (2) Light
12V MR11
Housing
Trimless
N
Trim Insert Finish
N
