Summary of Contents for RSA Lighting Microgem

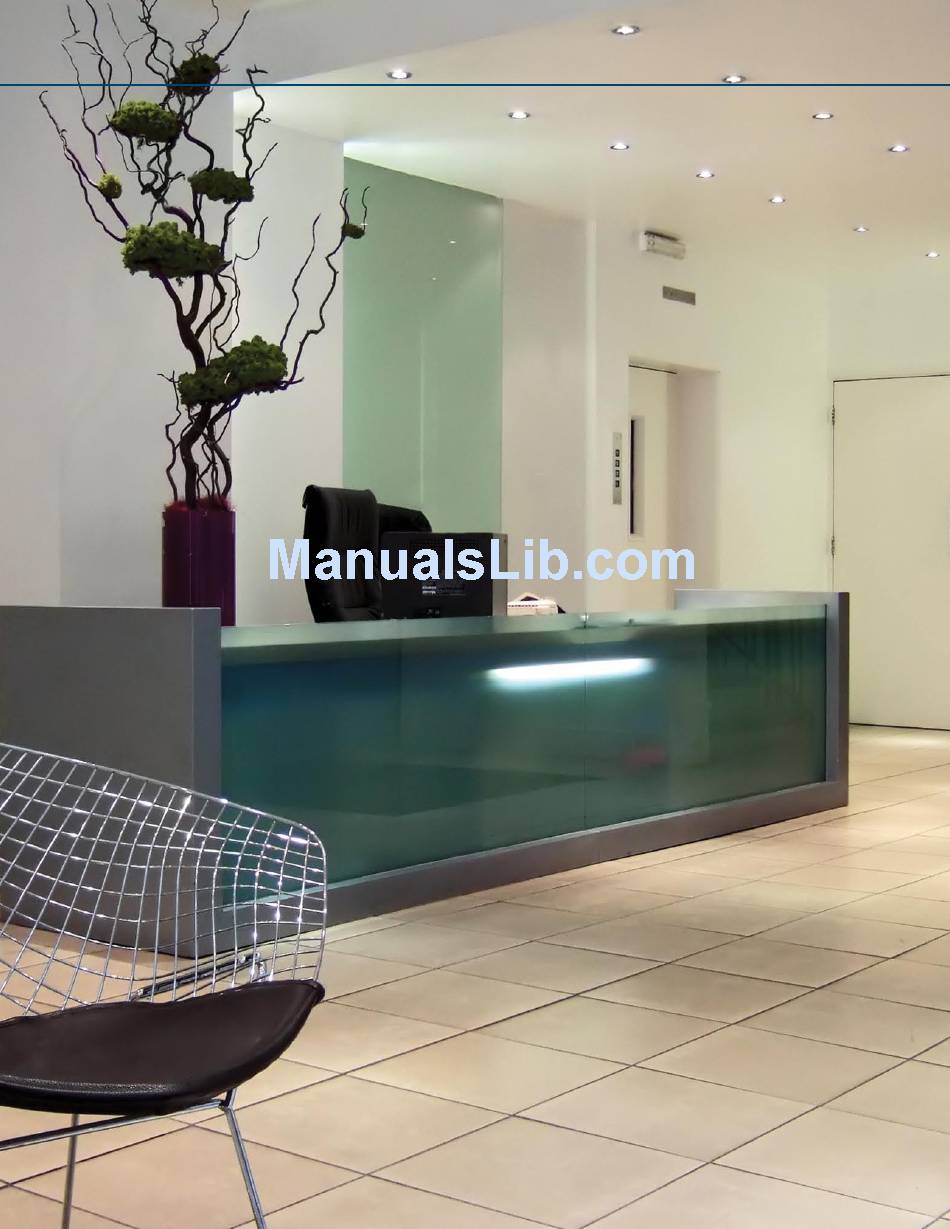

- Page 1 MICROGEM - DIE CAST low voltage recessed lighting...
- Page 2 U.L. listed showerlights, Microgem can meet any recessed lighting design need. The miniature size of Microgem (trim diameter of only 4.313”) helps make it one of the most sought after lighting products of its kind.
- Page 3 MICROGEM - DIE CAST TRIMS GLASS DOME SHOWERLIGHT Die Cast Shower Light Trim w/ Dome Glass for Wet Location Halogen GY6.35 12 volts 50 watts max. Item # MLV2033 White Trim w/ Dome Frosted Dome Glass Lens • Internal clear anodized reflector •...
- Page 4 MICROGEM - DIE CAST TRIMS GLASS COLLAR TRIM Die Cast Trim w/ Frosted Glass Collar Halogen MR16 12 volts 71 watts max. Item # MLV3080 White Trim w/ Frosted Glass Collar • Can accept up to two (2) optical accessories...
- Page 5 MICROGEM - DIE CAST TRIMS SLOT APERTURE TRIM Die Cast Slot Aperture Trim - 50º Adjustability Halogen MR16 12 volts 71 watts max. Item # MLV3064 White Trim MLV3066 Black Trim MLV3067 Industrial Silver Trim • 50º Adjustability • Can accept up to two (2) optical accessories PINHOLE TRIM Die Cast Pinhole Trim - 2”...
- Page 6 MICROGEM - DIE CAST TRIMS ADJUSTABLE CONICAL WALL ACCENT Die Cast Conical Wall Accent Trim - 358º x 85º Adjustability Halogen MR16 12 volts 71 watts max. Item # MLV3084 White Trim (shown) MLV3086 Black Trim MLV3087 Industrial Silver Trim •...
- Page 7 MICROGEM - RECESSED HOUSINGS 5.50" (C500) 6.50” (C500-75) 3.75" 10.5" 14" min. 25.25" max. OVER ALL WIDTH: 5.75”, ABOVE CEILING CLEARANCE: 5.00” (C500) / 6.00” (C500-75) CEILING CUT-OUT: 3.75” NEW ENLARGED JUNCTION BOX PROVIDES EASIER INSTALLATION AND ACCOMMODATES 5 #12 SUPPLY WIRE IN/OUT J-BOX SIZE: 3.00”W x 3.25”H X 2.55”D...
- Page 8 OVER ALL WIDTH: 4.50”, ABOVE CEILING CLEARANCE: 4.50” CEILING CUT-OUT: 3.75” 11.50" 5.00" 3.75" OVER ALL WIDTH: 5.25”, ABOVE CEILING CLEARANCE: 4.50” CEILING CUT-OUT: 3.75” MICROGEM - RECESSED HOUSINGS REMODEL HOUSING - MAGNETIC XFMR Item # C600 Remodel - Mag. Xfmr. - 50W max. Voltage 120V (Standard) 277V •...
- Page 9 MICROGEM - RECESSED HOUSINGS 19.13" 17.13" 14.20" OVER ALL WIDTH: 10.75”, ABOVE CEILING CLEARANCE: 7.13” CEILING CUT-OUT: 3.75” 20.13" 18.13" 15.19" OVER ALL WIDTH: 14.13”, ABOVE CEILING CLEARANCE: 5.00” CEILING CUT-OUT: 3.75” INSULATED CEILING HOUSING Item # C700 I.C. Insulated Ceiling - Mag. Xfmr. - 50W max.
- Page 10 CEILING CUT-OUT: 3.75” 3.50" 3.63" OVER ALL WIDTH (including mounting clips): 5.25”, ABOVE CEILING CLEARANCE: 3.00” CEILING CUT-OUT: 3.75” MICROGEM - RECESSED HOUSINGS SHALLOW REMODEL HOUSING - ELECTRONIC Item # C800 Shallow Remodel - Elec. Xfmr. - 35W max. Voltage...
