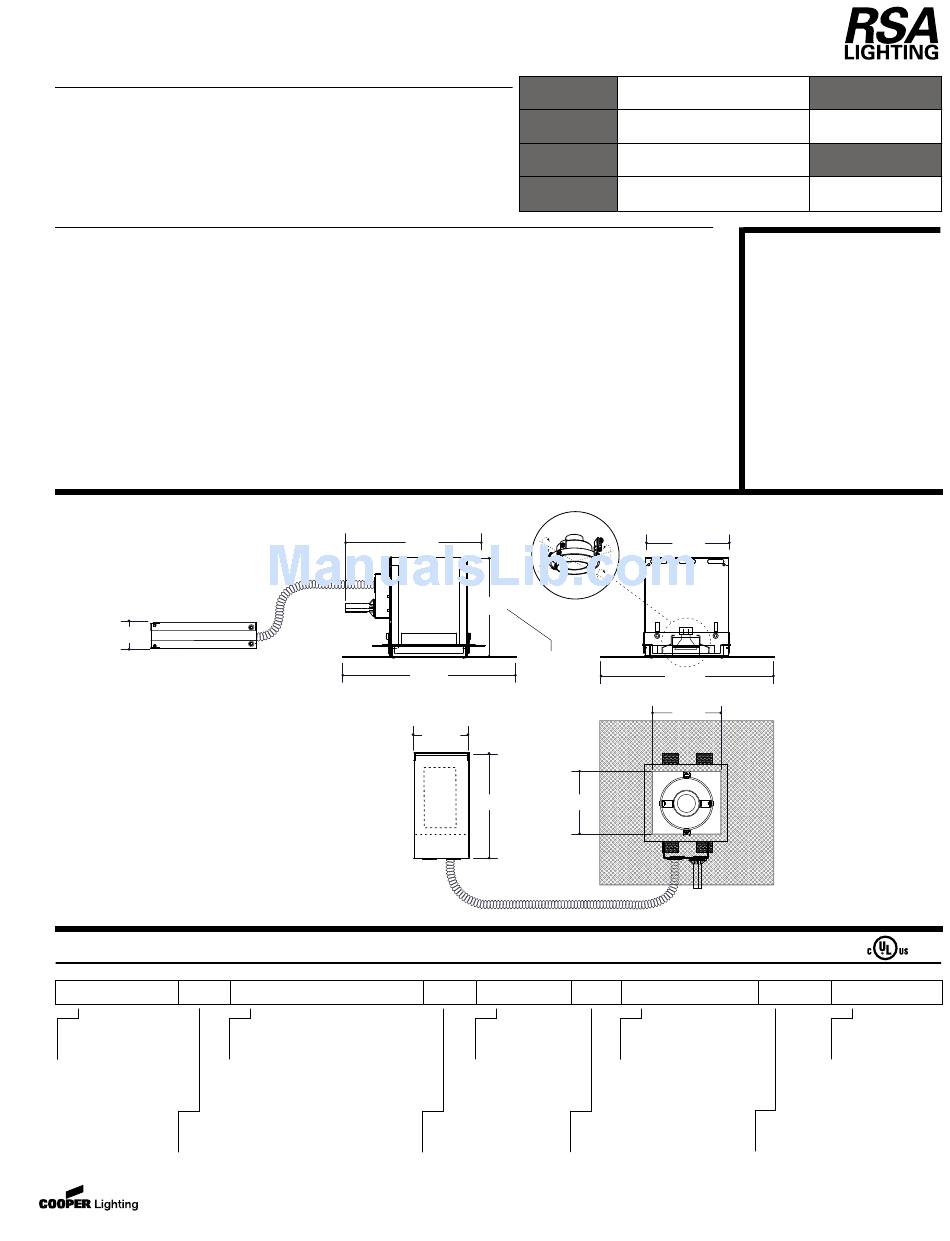

RSA Lighting Combolight 12V MR11 Specification

DESCRIPTION
An adjustable Single-lamp Recessed fixture for trimless installation suitable for
downlighting and accent applications. Utilizes ONE (1) 12V MR11 lamp.
For remodel applications. Insulation must be kept 3" from all sides and at least
1" above the housing.
SPECIFICATION FEATURES
A ... Housing
Housing and junction box are aluminum,
trimless meshplate is steel with powder
coated finish. Perforated meshplate
allows for trimless installation in drywall/
plaster ceilings by allowing the ceiling's
mudding compound to be applied right
up to the edge of the fixture opening.
Includes a beveled "knife-edge" lips to
ensure a clean edge. Can accommodate
various ceiling thickness.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through branch
wiring, 6 #12 90º C supply conductors or
60º C for end of run. The fixture is also UL
listed as 'access above ceiling not required'.
1.60"
NOTES:
De-Rated wattage labels are available.
12V Primary voltage is available.
ORDERING INFORMATION
C1 R
Configuration
C1
= COMBOLIGHT
Recessed One (1) Light
Housing
R Remodel
=
www.cooperlighting.com
D ... Electrical
Integral electronic or magnetic low voltage
transformers. Transformers and electrical
are mounted in a separate metal enclosure
box attached to the junction box with 18"
of flexible conduit. Transformer enclosure
includes a separated wiring compartment
and two knockouts for conduit entry.
Transformer enclosure features perforated
metal door for easy maintenance access
and cooler operation. Entire electrical
assembly (jbox and transformer enclosure)
is removable from the housing for easy
maintenance.
E ... Lamps
One (1) 12V MR11 lamp mounted in
adjustable double gimbal. Lamp holder is
removable and may be regressed 1" for
additional cut-off. Lamp can accept up to
three optical accessories (i.e. lens + hex
louver + snoot). 45º x 45º locking lamp
adjustment. Beveled-edge lamp ring is
8.50"
10.24"
Integral Low Voltage
Transformers
Separate Wiring
Compartment
Lamp Type / Wattage Label
020M11 = 20 Watt max. MR11 12V
035M11 35 Watt max. MR11 12V
=
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
secured with threadless, bayonet action.
Optional retractable arm is available for
lamp pulldown and extreme aiming.
F ... Mounting
Mounting clips are provided which
mount the housing edge flush with the
finished ceiling line. Mounting clips are
secured to the housing through the
meshplate with screws.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 5.00" x 5.00
Double
Gimbal
45º x 45º
Adjust
6.25"
5.75"
Required
above
ceiling
3.39"
6.50" 3.88"
18" flexible conduit
N
Power Supply
Voltage
1 120V
=
2 = 277V
Power Supply
Trim Insert
E Electronic Low Voltage
= N = Trimless
Transformer
M Magnetic Low Voltage
=
Transformer
COMBOLIGHT
Single-Lamp Fixture
Remodel Housing
4.70"
10.24"
3.88"
Perforated
Meshplate
Thermal
Protector
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door/Sleeve
Finish
W
= White
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
One (1) Light
12V MR11
Trimless
N
Trim Insert Finish
N
= Trimless
rev 121107
