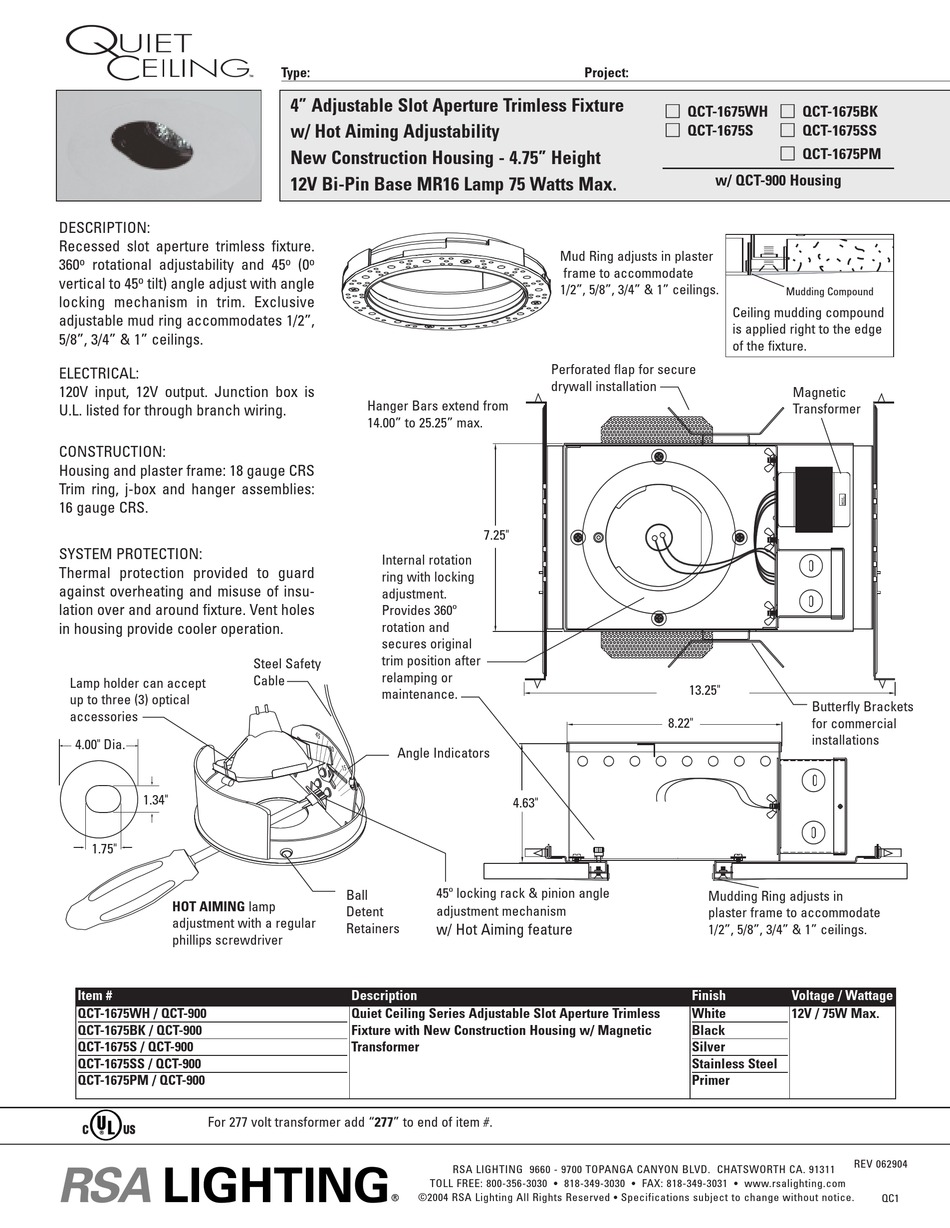

RSA Lighting QCT-1675BK Specification Sheet

DESCRIPTION:
Recessed slot aperture trimless fixture.
o
360 rotational adjustability and 45
o
vertical to 45 tilt) angle adjust with angle
locking mechanism in trim. Exclusive
adjustable mud ring accommodates 1/2",
5/8", 3/4" & 1" ceilings.
ELECTRICAL:
120V input, 12V output. Junction box is
U.L. listed for through branch wiring.
CONSTRUCTION:
Housing and plaster frame: 18 gauge CRS
Trim ring, j-box and hanger assemblies:
16 gauge CRS.
SYSTEM PROTECTION:
Thermal protection provided to guard
against overheating and misuse of insu-
lation over and around fixture. Vent holes
in housing provide cooler operation.
Lamp holder can accept
up to three (3) optical
accessories
4.00" Dia.
1.34"
1.75"
HOT AIMING lamp
adjustment with a regular
phillips screwdriver
Item #
QCT-1675WH / QCT-900
QCT-1675BK / QCT-900
QCT-1675S / QCT-900
QCT-1675SS / QCT-900
QCT-1675PM / QCT-900
For 277 volt transformer add "277" to end of item #.
Suitable for Damp Location.
Type:
4" Adjustable Slot Aperture Trimless Fixture
w/ Hot Aiming Adjustability
New Construction Housing - 4.75" Height
12V Bi-Pin Base MR16 Lamp 75 Watts Max.
o o
(0
Hanger Bars extend from
14.00" to 25.25" max.
Internal rotation
ring with locking
adjustment.
Provides 360º
rotation and
secures original
trim position after
Steel Safety
relamping or
Cable
maintenance.
Angle Indicators
Ball
Detent
Retainers
Description
Quiet Ceiling Series Adjustable Slot Aperture Trimless
Fixture with New Construction Housing w/ Magnetic
Transformer
For 277 Volt Transformer, add '277' to the end of the catalog number.
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2004 RSA Lighting All Rights Reserved • Specifications subject to change without notice.
Project:
Mud Ring adjusts in plaster
frame to accommodate
1/2", 5/8", 3/4" & 1" ceilings.
Perforated flap for secure
drywall installation
7.25"
4.63"
45º locking rack & pinion angle
adjustment mechanism
w/ Hot Aiming feature
RSA LIGHTING 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
QCT-1675WH QCT-1675BK
QCT-1675S QCT-1675SS
QCT-1675PM
w/ QCT-900 Housing
Mudding Compound
Ceiling mudding compound
is applied right to the edge
of the fixture.
Magnetic
Transformer
13.25"
Butterfly Brackets
8.22" for commercial
installations
Mudding Ring adjusts in
plaster frame to accommodate
1/2", 5/8", 3/4" & 1" ceilings.
Finish Voltage / Wattage
White 12V / 75W Max.
Black
Silver
Stainless Steel
Primer
REV 062904
QC1
