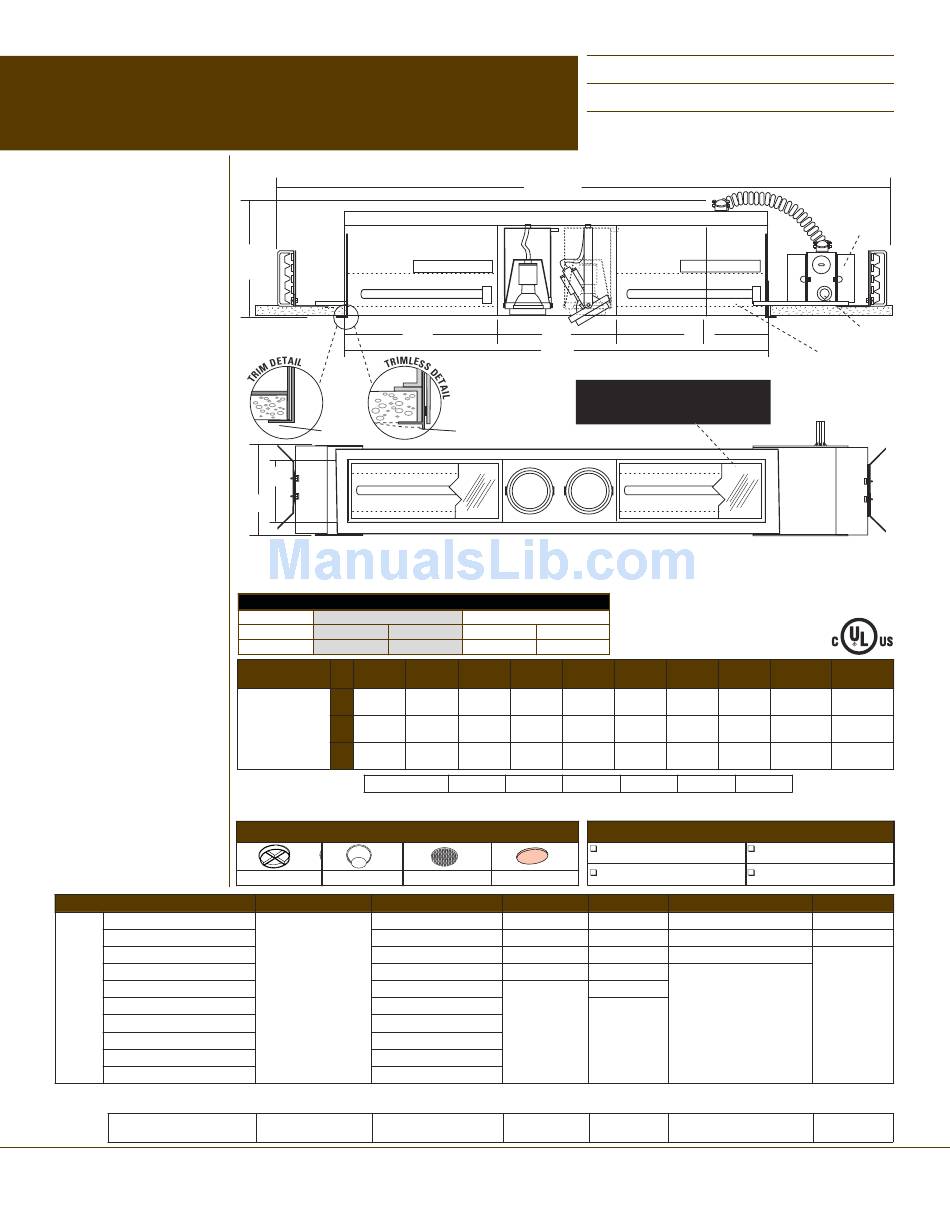

RSA Lighting Combolight Combo Classic CR2TC35 Specifications

COMBOLIGHT® COMBO CLASSIC RECESSED
LAMP GROUP 2 - CONFIGURATION "C"
TWO (2) T4 G8.5 Metal Halide lamp cells - TWO (2) Fluorescent lamp cells
New Construction Recessed Housing - Trim or Trimless

DESCRIPTION:

An adjustable recessed fixture
suitable for multiple downlighting
applications with one point of elec-
trical entry. Mixes the use of metal
halide lamps with fluorescent
lamps. Powder coat finish on hous-
ing & lamp assembly.

CONSTRUCTION:

Housing, Plaster Frame & Trim
Assembly: 18 gauge CRS. J-Box
Assembly: 16 gauge CRS (galva-
nized). Fixture is offered with a .75"
ceiling trim or as a trimless fixture.
Can accommodate 0.50" to 1.00"
ceiling thickness.

LAMP ASSEMBLY:

Two T4 G8.5 Metal Halide lamp
cells with two fluorescent lamp
cells . Can accept up to two optical
accessories. 380º x 45º locking
lamp adjustment. Provides 45º
visual cut-off. Utilizes a sophisti-
cated all aluminum reflector with
distributions of 15º, 27º and 55º
spreads.

SYSTEM PROTECTION:

Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation

ELECTRICAL:

Fixture is two circuit.
Circuit 1: Integral Aromat® elec-
tronic metal halide ballasts for
T4 G8.5 metal halide lamps.
Circuit 2: Integral electronic bal-
lasts for fluorescent lamps.
Lutron® dimming ballasts avail-
able upon request.
Junction box is UL listed for
through branch wiring, for 8 #12,
90°C supply conductors or 60°C for
end of run (access above ceiling
not required).
Item # / Lamp Type
Lamp CR2TC35 - T4 G8.5 MH 35W C - Two T4 G8.5
Group 2
CR2TC70 - T4 G8.5 MH 70W
Metal
Halide
___

SPECIFY -

RSA LIGHTING
Dual Fluorescent lamp cells
w/ integral ballast accessible
from below
9.50"
Integral reflector
0.75" Trim
7.00"
8.75"

Luminance / Performance Comparison to Regular H.I.D. Lamps

Regular MH Lamp
Initial Lumens 35W = 2000 70W = 4850
Rated Lamp Life 35W = 9000 hrs 70W = 9000 hrs 35W = 9000 hrs 70W = 9000 hrs
Fluorescent >> BX40
65.18" 65.18" 65.18" 30.18" 31.18" 33.18" 112.18" 136.18" 88.18"
A
Lamp Group 2
81.98" 81.98" 81.98" 46.98" 47.98" 49.98" 128.98" 152.98" 104.48"
B
Metal Halide
25.50" 25.50" 25.50"
C
CR2TC35

ORDERING EXAMPLE:

= Two T4 G8.5 Metal Halide 35W lamps with Two BIAX® 40W Fluorescent • Black Interior • White Trim • 27º reflector • 120 volts
Optional Accessories - See RSA Combo Classic accessory page for details.
Baffle Snoots
Configuration Fluorescent Lamp
BX40 - 40W BIAX®
BX50 - 50W BIAX®
Metal Halide
PLL80 - 80W PL-L
lamp cells with
PLT26 - 26W PL-T
Two Fluorescent
PLT32 - 32W PL-T
lamp cells
PLT42 - 42W PL-T
T528 - 28W T5
T535 - 35W T5
T5HO39 - 39W T5HO
T5HO54 - 54W T5HO
T8 lamps also available
C
___
®
Catalog #
Type
Project
B
Ballast
C
13.80"
A
Must specify a diffuser or louver
Ceiling compund
for fluorescent cell. See below.
is applied right
to the edge of the
fixture opening
T4 G8.5 MH Lamp
35W = 3300 70W = 6600
BX50 PLL80 PLT26 PLT32 PLT42
8.00" 8.50"
C BX40 BK
Fluorescent Diffusers and Louvers - Please specify
Louvers Lenses
Interior Finish Trim Finish
BK - Black BK - Black
WH - White WH - White
S - Silver S - Silver
PT - Custom PT - Custom
TR - Trimless
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
Ballast
Integral reflector
C
Custom configurations are available
with Combo Classic fixtures. Also
available with T8 fluorescent lamps.
Consult RSA for details
T535 T5HO39 T5HO54
T528
9.50" 49.00" 61.00"
WH 27 120
TWD - Textured White Diffuser CB1 - 2" Parabolic Louver
MPD - Conical Prism Diffuser CB2 - 1" Parabolic Louver
Distribution
15 - 15º Narrow Reflector 120 - 120 Volts
27 - 27º Medium Reflector 277 - 277 Volts
55 - 55º Wide Reflector
___ ___
Aromat®
Electronic
Metal Halide
Ballasts
Thermal Protector
380º x 45º locking
angular adjustment
45º visual cut-off
Butterfly
Brackets
for Black Iron
Mounting
112.18"
128.98
37.00" 49.00"
Voltage
