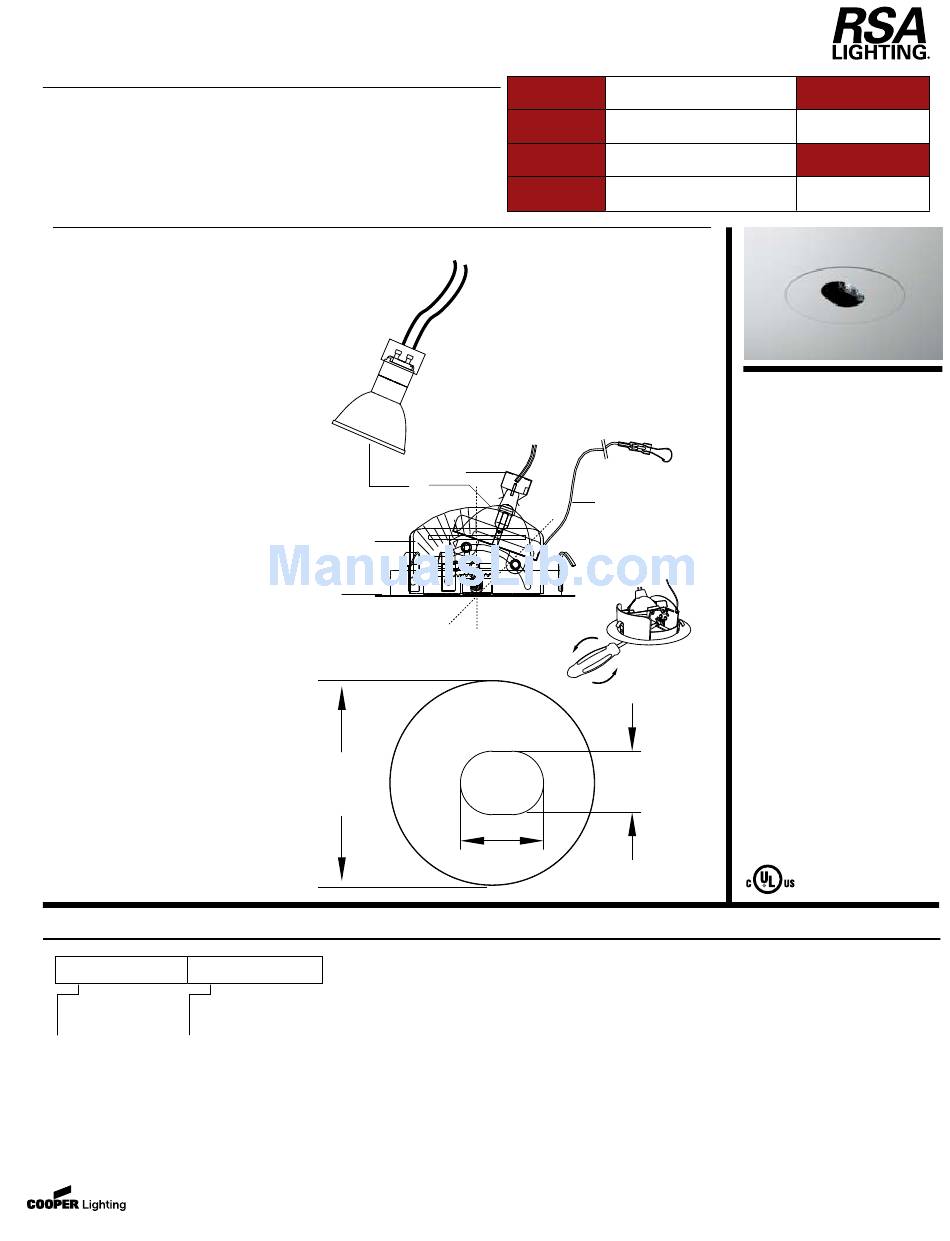

RSA Lighting ACCURUS TRIM ACT1685 Specification Sheet

DESCRIPTION
5" round recessed adjustable slot aperture fixture with hot aiming
feature. For use with 12V MR16 lamp 71W max., Metal Halide MR16 20W
or 39W.
For use in downlighting / accent applications.
SPECIFICATION FEATURES
A ...Trim
5" Round adjustable slot aperture trim
fixture.
B ...Lamp
For use with 12V MR16 lamp 71W max.
Metal Halide MR16 20W or 39W. Lamp
not included. Lamp holder has 45º HOT
AIMING adjustability. 12V MR16 fixture
includes clear protective glass lens
and can accept up to three (3) optical
accessories total.
C ...Socket
Posi-Grip bi-pin socket for 12V MR16.
GX10 for metal halide lamps. (Included
with Accurus Housing sold separately)
D ...Hot Aiming
Lamp may be adjusted with the power
on by using a philips screwdriver for up
to 45º tilt. Self locking rack and pinion
mechanism and visual angle indicators
ensure precise adjustment.
E ...Finish
Trim face is powder coated in white,
black, industrial silver, stainless
steel or primer finish for painting in
existing ceiling color. All other internal
components are flat black.
F....Safety
Steel safety cable provided. Attaches
to tab inside housing to prevent falling
during maintenance or as a result of
accidental dislodging of the trim.
ORDERING INFORMATION
ACT1685
__
Fixture Finish
ACT1685 =
WH
5" Round Trim Slot Aperture
BK
Fixture
S
SS
PM
www.cooperlighting.com
D
A
5.00"
DIA.
White
=
Black
=
Industrial Silver
=
Stainless Steel (painted)
=
Primer
=
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
• 12V MR16 71W max.
• Metal Halide MR16 20W or 39W
C
B
45
30
15
0
0º - 45º
1.75"
F
METAL HALIDE MR16 20W or 39W
Hot Aiming
ACT954RM / ACT954RMMH
1.34"
Type
Date
ACCURUS
TRIM
ACT1685
5" Round
Recessed Slot
Aperture Fixture
12V MR16 71W max.
Compatible Housings:
ACT950 / ACT950MH
ACT952IC / ACT952ICMH
Suitable for Damp
Location
rev 122007
