Stinger RB10JK11B Manual

RB10JK11B
Introduction and Features
The RB10JK11B is a complete radio replacement kit for Jeep Wrangler JK. All modules and cables are included to retain
important features of the factory system, including: steering wheel-mounted radio controls, factory amplifier (if equipped)
and AM/FM reception. Plug & Play wiring harnesses allow for quick and easy installation without the need to cut or splice any
wiring.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself
with the entire process prior to beginning the installation.
1. Does not retain the following factory features:
● uConnect
● In Premium Amplified Systems, only two input channels can be used from the aftermarket radio,
therefore there will be no fading capability of the aftermarket stereo.
● SiriusXM Satellite Radio
2. To retain SiriusXM Satellite Radio would require purchasing a SXV300 SiriusXM tuner.
Recommended Tools
Plastic Panel Tool
7mm Socket
Ratchet
Ratchet Extension

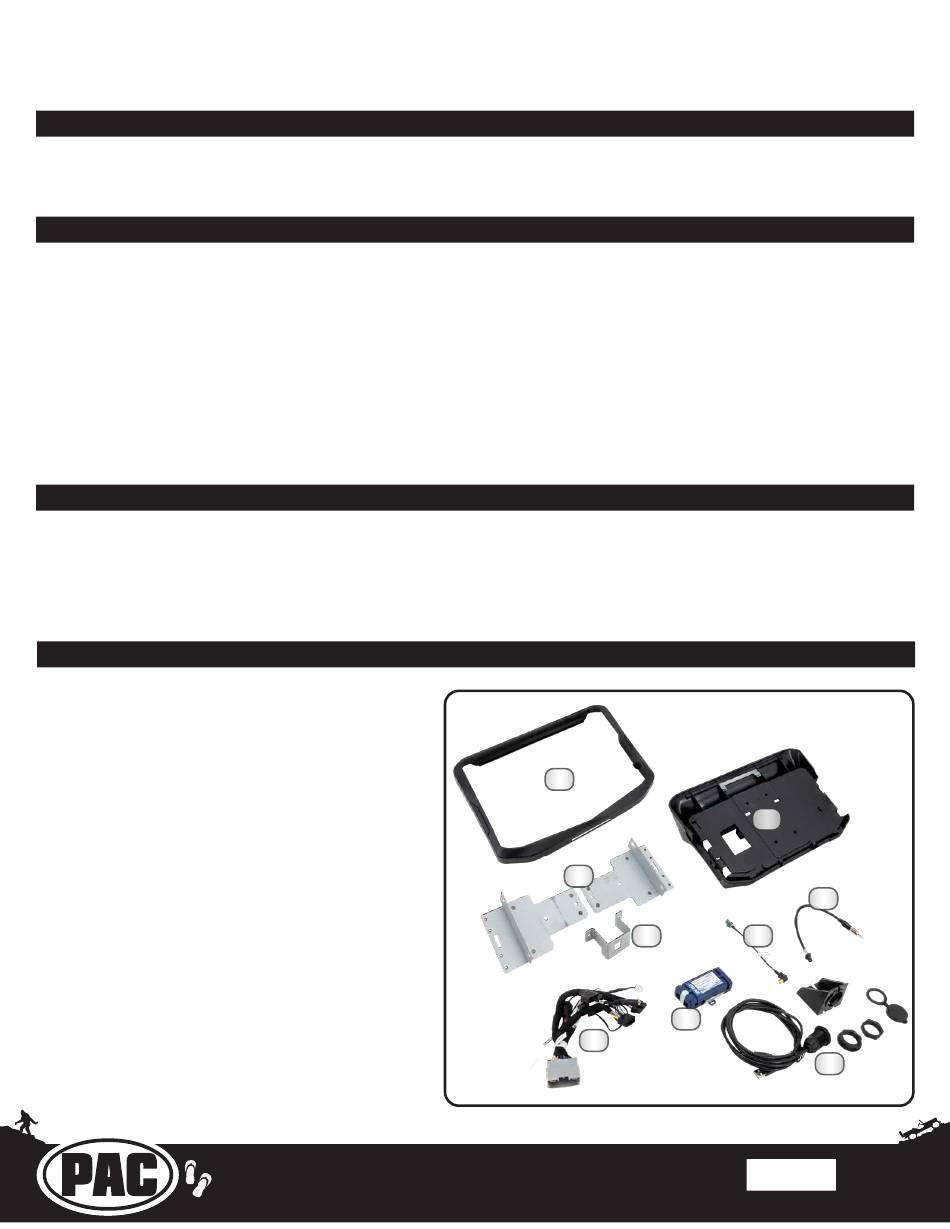

Included Components
1. Mounting Panel Front Frame
2. HEIGH10 Display Mounting Panel
3. Side Mounting Brackets
4. Top Support Bracket
5. Main Wiring Harness (RP4-JK07-HAR)
6. Radio Replacement Interface Module (RP4-CH11)
7. Satellite Antenna Adapter (SAT-01)
8. AM / FM Antenna Adapter (BAA22)
9. Dual USB Extension (SSUSB2)
NOTE: Along with the SR-JK11H components,
additional hardware and wire harnesses from the
HEIGH10 (UN1810) kit will also be used in the
installation. There is a component list, hardware
guide, wire harness descriptions and illustrations
in the UN1810 Installation Guide for reference.
®
Pacific Accessory Corporation
Phillips Screwdriver
Pick Tool
Flush Cutters
Wire Feeder
