Image modes

The camera can capture thermal and visual images at the same time. By choosing the
image mode, you select which type of image to display on the screen.
The camera supports the following image modes:
• Thermal MSX (Multi Spectral Dynamic Imaging): An infrared image where the edges
of the objects are enhanced with visual image details.
• Thermal: An infrared image.
• Picture in picture: An infrared image frame is displayed on top of the visual image.
• Digital camera: The visual image captured by the digital camera.
Note
• For the Thermal MSX, Thermal, and Picture in picture modes, all thermal and visual
information is stored when an image is saved. This means that you can edit the image
later, in the camera image gallery or in a FLIR Thermography software, and select any
of the image modes.
• For the Digital camera image mode, a digital image with full resolution is stored when
an image is saved. However, no thermal information is stored.
• You can choose to turn off the digital camera. This can, for example, be required in re-
stricted areas and in confidential situations. Select Settings > Save options & storage
> Digital camera = Off. When the digital camera is off, only the image mode Thermal
is enabled.

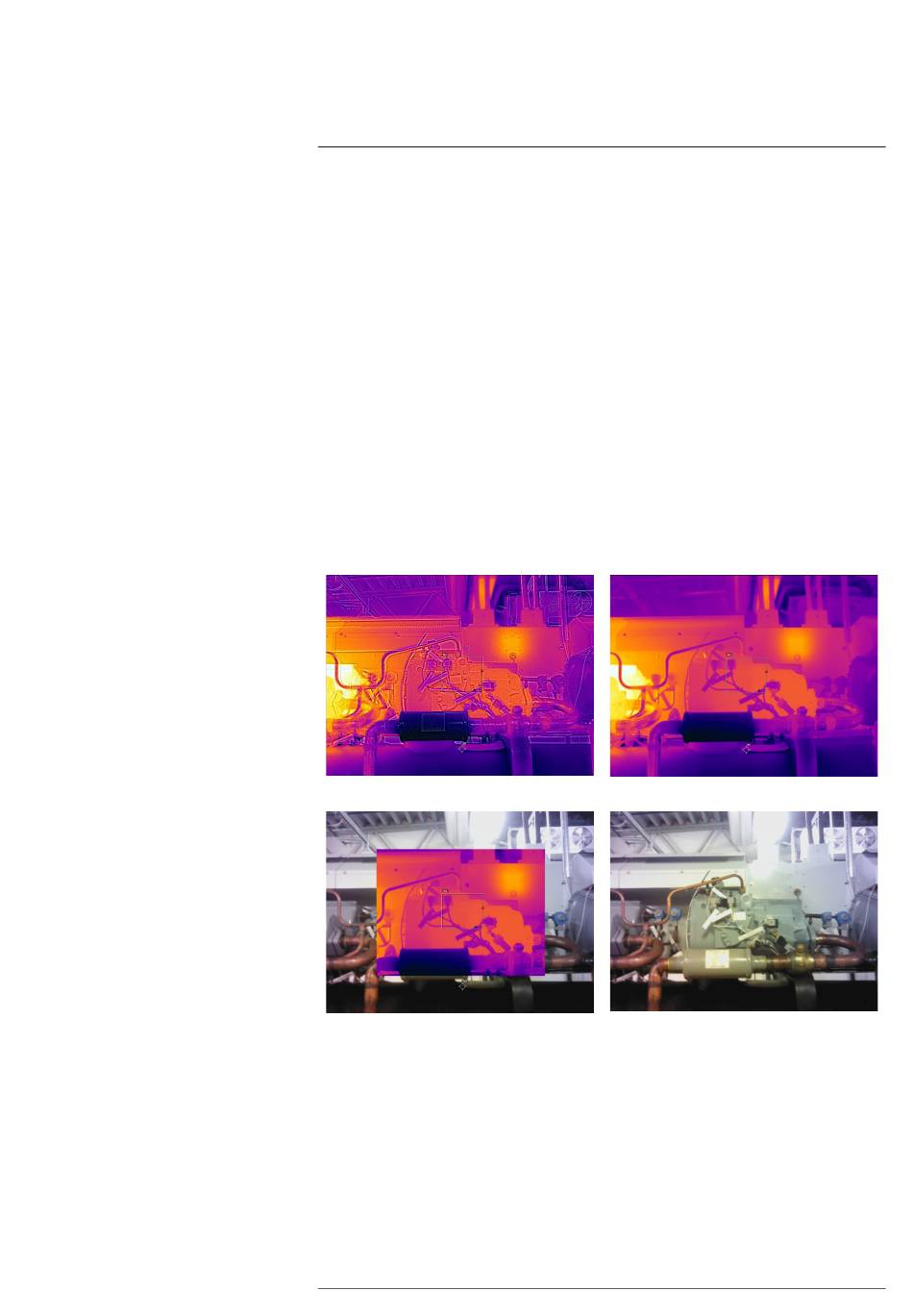

Thermal MSX
Picture in picture

7.1 Change image mode

To change the image mode, select Image mode on the main toolbar. This displays a tool-
bar where you can select the image mode.
#T810624; r. AB/92323/92323; en-US
Thermal
Digital camera
