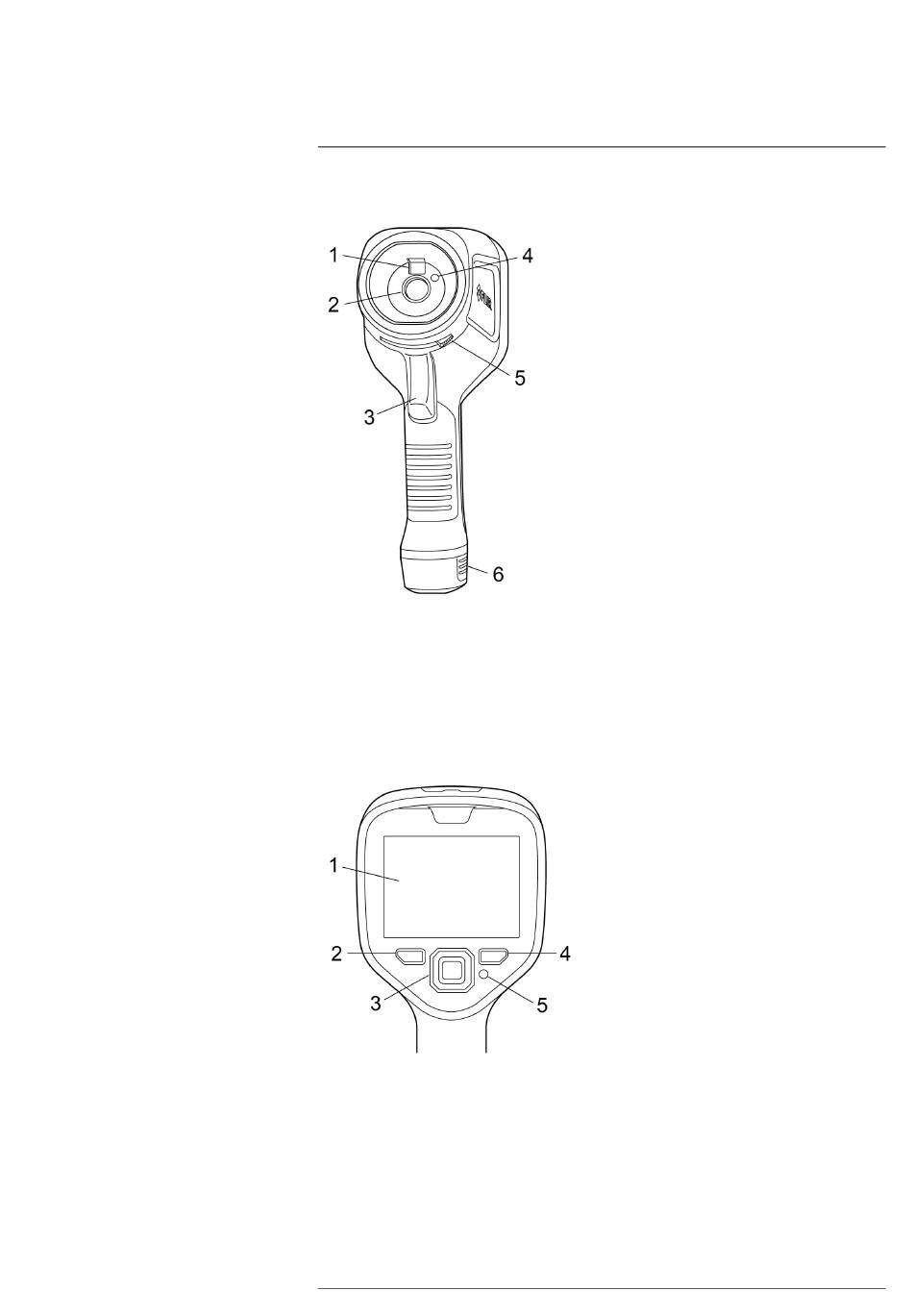

Camera parts

4.1 View from the front

1. Digital camera
2. Infrared lens
3. Trigger to save an image
4. Camera lamp
5. Lever to open and close the lens cap
6. Battery

4.2 View from the rear

1. Touch screen
2. Archive button
3. Navigation pad
4. Back button
5. On/Off button
5
#T810624; r. AB/92323/92323; en-US
