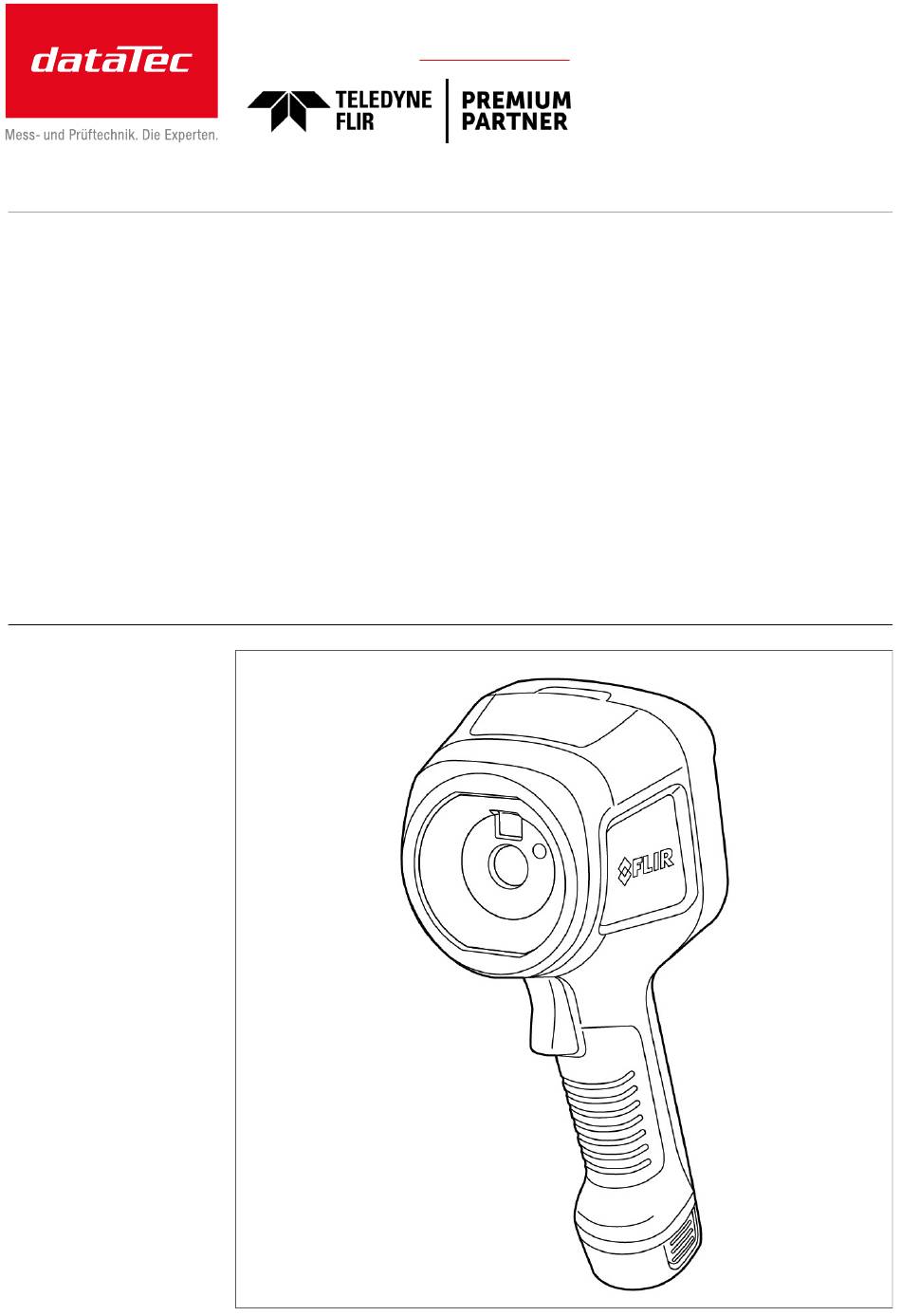

- Page 1 Ihr Ansprechpartner / dataTec AG Your Partner: E-Mail: info@datatec.eu >>> www.datatec.eu User’s manual FLIR Ex series...
- Page 2 Important note Before operating the device, you must read, understand, and follow all instructions, warnings, cautions, and legal disclaimers. Důležitá poznámka Před použitím zařízení si přečtěte veškeré pokyny, upozornění, varování a vyvázání se ze záruky, ujistěte se, že jim rozumíte, a řiďte se jimi.
-
Page 3: Table Of Contents
Table of contents Safety information ................1 Radio ..................1 Battery and charging ..............2 Handling and operation .............. 2 Declaration of conformity ............3 Notice to user ...................4 Register your camera..............4 Online documentation..............4 About this manual ..............4 Support .................. - Page 4 Table of contents 8.2.4 Difference calculations (delta) ......... 17 8.2.5 Display box values in the result table ........ 17 Temperature range..............18 Thermal image adjustment............18 8.4.1 General..............18 8.4.2 Change mode ............. 19 8.4.3 Manual adjustment by touching the screen ......19 8.4.4 Manual adjustment using the navigation pad ......
- Page 5 Table of contents 13.2 Measurement parameters............32 13.3 Connections ................32 13.4 Camera temperature range ............32 13.5 Save options & storage ............32 13.6 Device settings............... 33 Maintenance and cleaning ..............34 14.1 Calibration................34 14.2 Clean the camera ..............34 14.2.1 Camera housing, cables, and other items ......
-
Page 6: Safety Information
Safety information 1.1 Radio WARNING Applicability: Class B digital devices. This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Battery And Charging
Safety information 1.2 Battery and charging WARNING If you do not obey these Warnings, an explosion or an ignition can occur. This can cause injury to per- sons and damage to the equipment. • Do not disassemble or do a modification to the battery. •... -
Page 8: Declaration Of Conformity
Safety information 1.4 Declaration of conformity The full text of the Declaration of conformity is available at the following internet address: https://support.flir.com/resources/2758. #T810624; r. AF/93316/93316; en-US... -
Page 9: Notice To User
Notice to user 2.1 Register your camera Register your camera to receive an extended warranty and other related benefits. To register the camera, go to http://support.flir.com/camreg. To access the registration form, you must log in to your FLIR account or sign up for a new account. -
Page 10: Getting Started
Getting started Note Before operating the camera, you must read, understand, and follow the warnings and cautions in section 1 Safety information. 1. Charge the battery. 2. Push the battery into the camera battery compartment. 3. Push the On/Off button to power on the camera. 4. -
Page 11: Camera Parts
Camera parts 4.1 View from the front 1. Digital camera 2. Infrared lens 3. Trigger to save an image 4. Camera lamp 5. Lever to open and close the lens cap 6. Battery 4.2 View from the rear 1. Touch screen 2. -
Page 12: Connector Compartment
Camera parts 4.3 Connector compartment 1. USB port 4.4 Serial number A label with the serial number is visible when the battery is removed. The serial number is available in the camera settings. Select Settings > Device settings > Camera information. #T810624;... -
Page 13: User Interface
User interface 5.1 Screen elements 5.1.1 General 1. Result table 2. Status icons and indicators 3. Spotmeter 4. Temperature scale 5. Menu button 5.1.2 Status icons and indicators Battery level • Green: above 75% • Yellow: up to 75% • Red: up to 25% •... -
Page 14: Main Toolbar
User interface 5.2 Main toolbar 1. Temperature scale 2. Image mode 3. Measurement 4. Color 5. Settings 5.2.1 Navigation To navigate the user interface, you can use the touch screen and/or the navigation pad and Back button. • To display the main toolbar, do one of the following: ◦... -
Page 15: Quick Menu
User interface 5.3 Quick menu 1. Storage status of the camera memory. 2. Battery level. 3. Enable/disable Bluetooth or open the Bluetooth settings menu. See also section 12.2 Bluetooth. 4. Enable/disable Wi-Fi or open the Wi-Fi settings menu. See also section 12.1 Wi-Fi. 5. -
Page 16: Basic Operation
Basic operation 6.1 Safety information Before operating the camera, you must read, understand, and follow the warnings and cautions in section 1 Safety information. 6.2 Battery 6.2.1 Install the battery Push the battery into the battery compartment. 6.2.2 Remove the battery 1. -
Page 17: Charge The Battery In The Camera - Via A Computer
Basic operation 6.3.3 Charge the battery in the camera — via a computer 1. Open the cover at the top of the camera. 2. Connect the camera to a computer, using the USB cable. 3. Power on the camera. Note Charging the battery via a computer takes considerably longer time than using the battery charger or power supply. -
Page 18: Transfer Files Via Usb Cable
Basic operation 6.6.1 Transfer files via USB cable 1. Open the cover at the top of the camera. 2. Connect the camera to the computer, using the USB cable. 3. Power on the camera. 4. Move the files to the computer using a drag-and-drop operation. Note This does not delete the files in the camera. -
Page 19: Image Modes
Image modes The camera can capture thermal and visual images at the same time. By choosing the image mode, you select which type of image to display on the screen. The camera supports the following image modes: • Thermal MSX (Multi Spectral Dynamic Imaging): An infrared image where the edges of the objects are enhanced with visual image details. -
Page 20: Align The Thermal And Visual Images
Image modes 7.2 Align the thermal and visual images In Thermal MSX and Picture in picture modes, the camera displays a combination of thermal and visual images. When looking at an object close up or far away, you may need to adjust the distance setting in the camera to align the thermal and visual images. To align the thermal and visual images, do the following: 1. -
Page 21: Measuring Temperatures
Measuring temperatures 8.1 Basic steps to temperature measurements • Select a temperature range that matches the expected temperature of the object you are inspecting. • Adjusting the temperature scale manually can make it possible to detect anomalies and smaller temperature differences in the part of the image of interest. •... -
Page 22: Move And Resize A Box
Measuring temperatures 3. On the toolbar, do one or more of the following: • Select Move and push the navigation pad. Push the navigation pad up/down and left/right to move the tool. You can also tap and drag the spot. •... -
Page 23: Temperature Range
Measuring temperatures To display values in the result table, do the following: 1. Activate edit mode by tapping one of the corners of the box. The box is now displayed with handles in the center and in the corners. 2. Push the navigation pad or tap the menu button. This displays a toolbar. 3. -
Page 24: Change Mode
Measuring temperatures Automatic Manual Here are two infrared images of an isolator in a power line. To make it easier to analyze the temperature variations in the isolator, the temperature scale in the right image has been changed to values close to the temperature of the isolator. Automatic Manual 8.4.2 Change mode... -
Page 25: Manual Adjustment Using The Navigation Pad
Measuring temperatures To manually adjust the image, do the following: 1. To enter manual adjustment mode, select Temperature scale > Manual on the main toolbar. 2. To simultaneously change the maximum and minimum limits of the temperature scale, place your finger on the screen and move it up/down. 3. -
Page 26: Color Palettes
Measuring temperatures 8.4.4.2 Manual adjustment in Level, Max, Min mode 1. To enter manual adjustment mode, select Temperature scale > Manual on the main toolbar. 2. To simultaneously change the temperature scale minimum and maximum limits, push the navigation pad up/down. 3. -
Page 27: Change The Color Palette
Measuring temperatures 8.5.1 Change the color palette On the main toolbar, select Color. This displays a toolbar where you can select a color palette. 8.6 Color alarms and isotherms By using color alarms (isotherms), anomalies can easily be discovered in an infrared im- age. -
Page 28: Recommended Values
Measuring temperatures To set the measurement parameters, do the following: 1. On the main toolbar, select Settings > Measurement parameters. 2. Select the measurement parameter you want to change. 3. Select the appropriate parameter setting. 8.7.2 Recommended values If you are unsure about the measurement parameter values, the following are recommended: Emissivity 0.95... -
Page 29: Working With Images
Working with images 9.1 Save an image To save an image, pull the trigger. When you save an image, the camera stores the image file in the camera memory. You can also set up the camera to upload images for storage online, see section 11 Cloud connectivity, page 29. -
Page 30: Edit A Saved Image
Working with images 9.5 Edit a saved image 1. Open the image in the Gallery. 2. Push the navigation pad or tap the screen to display the top toolbar. 3. On the top toolbar, select 4. On the right toolbar, select . -
Page 31: Gallery - Image Archive
Gallery — image archive When you save an image, the camera stores the image file in the camera memory. You can open an image and, for example, change the color palette, apply another image mode, and add measurement tools. In the camera, the image archive is called Gallery. The Gallery can include one or several folders. -
Page 32: Move Files Between Folders
Gallery — image archive 3. Select the folder that new images should be saved to. 4. On the right toolbar, select 5. The selected folder is moved to the top of the Gallery. 10.6 Move files between folders 1. Go to a folder in the Gallery. 2. -
Page 33: Delete All Files
Gallery — image archive 10.8.4 Delete all files To delete all files from the camera memory, select Settings > Save options & storage > Delete all saved files..This displays a dialog box where you can select to permanently delete all saved files in the camera memory. #T810624;... -
Page 34: Cloud Connectivity
Cloud connectivity FLIR Ignite is a cloud storage service for thermal images. Upload images from your cam- era and your data will be instantly available on your computer and mobile devices. With FLIR Ignite you can edit images and create basic reports. You can also share images with colleagues and clients and invite team members to work in the same folder and files. -
Page 35: Manual Upload
Cloud connectivity 11.6 Manual upload You can manually upload files and folders from the Gallery when the camera is paired with a FLIR Ignite account and connected to the internet. You can monitor the upload progress at the top of the Gallery. Note Before uploading, make sure that: •... -
Page 36: Wireless Connectivity
Wireless connectivity 12.1 Wi-Fi You can connect the camera to a Wi-Fi network. The Wi-Fi functionality is managed on the Settings menu. You can also enable/disable Wi-Fi on the Quick menu. 12.1.1 Connect the camera to Wi-Fi You can connect the camera to a Wi-Fi network as part of the initial setup of the camera. You can also connect the camera at any time via the Settings menu. -
Page 37: Camera Settings
Camera settings On the Settings menu, you can set up the camera according to your preferences and view information about your camera. The Settings menu includes the following: • FLIR Ignite • Measurement parameters. • Connections • Camera temperature range •... -
Page 38: Device Settings
Camera settings 13.6 Device settings • Language, time & units: Select the language, units, and date and time formats to be used in the camera. • Screen brightness: Adjust the brightness of the screen. Note You can also adjust the screen brightness on the Quick menu, see section 5.3 Quick menu. -
Page 39: Maintenance And Cleaning
Maintenance and cleaning 14.1 Calibration We recommend that you send in the camera for calibration once a year. Contact your lo- cal sales office for instructions on where to send the camera. 14.2 Clean the camera 14.2.1 Camera housing, cables, and other items Use one of these liquids: •... -
Page 40: Updating The Camera
Updating the camera To take advantage of our latest camera firmware, it is important that you keep your cam- era updated. There are several ways to update the camera: • When the camera is connected to the internet, the camera automatically searches for firmware updates. -
Page 41: Disposal Of Electronic Waste
Disposal of electronic waste Waste of Electrical and Electronic Equipment (WEEE) poses a risk to human health and the environment when not disposed of properly. This product should not be discarded as unsorted waste but must be sent to separate collection facilities for recovery and recy- cling. -
Page 42: Disclaimers
Disclaimers 17.1 Legal disclaimer For warranty terms, refer to https://www.flir.com/warranty. 17.2 Export controls Products described herein may be subject to export regulations. This document does not contain export-controlled information. 17.3 Patents This product is protected by patents, design patents, patents pending, or design patents pending. - Page 43 Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Ihr Ansprechpartner / dataTec AG Your Partner: E-Mail: info@datatec.eu >>>...
