OWNER'S MANUAL
Wired Controller
KC-01 S
IMPORTANT NOTE:
Thank you very much for purchasing our product. Before using your unit, please
read this manual carefully and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC-01 S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kaysun KC-01 S

Summary of Contents for Kaysun KC-01 S

  • Page 1 OWNER’S MANUAL Wired Controller KC-01 S IMPORTANT NOTE: Thank you very much for purchasing our product. Before using your unit, please read this manual carefully and keep it for future reference.
  • Page 2 • This manual gives detailed description of the precautions that should be brought to your attention during operation. • In order to ensure correct service of the wired controller please read this manual carefully before using the unit. • For convenience of future reference, keep this manual after reading it. •...

  • Page 3: Table Of Contents

    CONTENTS ..............1 SAFETY PRECAUTION ..............2 SUMMARIZE ..............2 FUNCTION SUMMARY NAME AND FUNCTION OF INDICATORS ..............3 ON THE WIRE CONTROLLER ..............4 INSTALLATION METHOD. NAME AND OPERATION OF THE BUTTON ..............5 ON THE WIRE CONTROLLER ..............8 USING METHOD ..............

  • Page 4: Safety Precaution

    SAFETY PRECAUTIONS The following contents are stated on the product and the operation manual, including usage, precautions against personal harm and property loss, and the methods of using the product correctly and safely. After fully understanding the following contents (identifiers and icons), read the text body and observe the following rules.

  • Page 5: Summarize

    Warning Please entrust the distributor or professionals to install the unit. The installers must have the relevant know- Delegate how. Improper installation performed by installation Warning the user without perm ission may cause fire, electric,shock, personal injury or water leakage. Do not spray flammable aerosol to the wire controller Forbid directly.

  • Page 6: Name And Function Of Indicators On The Wire Controller

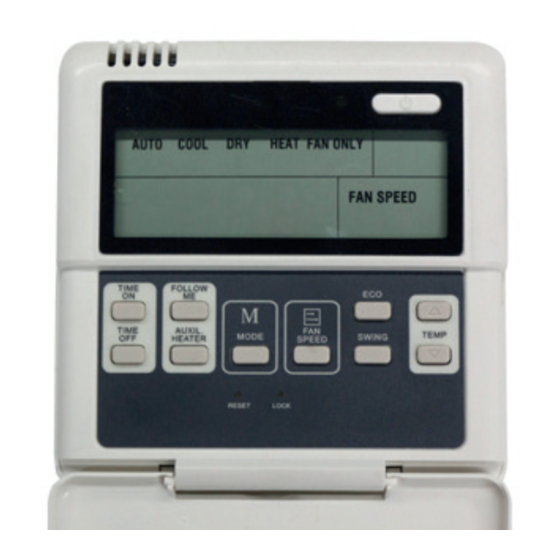

    4. NAME AND FUCTION OF INDICATORS ON THE CONTROLLER 1. Operation mode indication 3. Follow me function 4. ON / OFF indication 5. Fan speed indication 6. Lock 2. Timer ON / OFF 7. Temperature display zone 1. Operation mode indication: When press “...

  • Page 7: Installation Method

    4. ON/OFF indication: When it is on, the icon display, otherwise it is extinguished. 5. Fan speed indication: There are four fan modes: low, middle, high, auto. For some models, no middle fan then the middle fan is seen as high speed. 6.

  • Page 8: Name And Operation Of The Button On The Wire Controller

    When a wire controller is needed, a small 5-way terminal should be added,fix an infrared emitter with gumwater near the receiver on the switch board. Connect its anode and cathode to A and B,and +5V, GND, RUN to C, D, E on the switch board. 6.
  • Page 9 Mode botton:  When press this botton,the operation mode change as the following sequence: Remark: For the cooling only model, the heating mode is skipped. Timer on button:  Press this button, timer on function is active. Then every press, the time increase 0.5h, after 10h, 1h increasement after each press.
  • Page 10 Swing button:  First press, start swing function;second press, stop swing. (Match to some model with swing function).  ECO button / Sleep button: Press this button, the indoor unit operates in economy mode, press again, exit this mode (it may be ineffective for some models).

  • Page 11: Using Method

    USING METHOD AUTOMATIC OPERATION Connect to power,indoor operation lamp flash. Press “MODE” button, select “ AUTO “ ; Press the button “▲” and “▼”, set temperature you want, generally it is among 17°C(62°F)~30°C(88°F); Press “ ON/OFF” button, operation lamp is on, the air-conditioner work in auto mode, indoor fan is auto, and can not be changed.

  • Page 12: Timer Setting

    TIMER SETTING Timer on only: Press “ TIME ON “ button, it display “TIMER” on LCD, and display “ h “ and “ON” , is waiting for timer on setting. Press “ timer “ on button repeatedly to adjust time setting. If press this button and hold on, the time will increase at 0.5h, after 10h, it increase at 1h.

  • Page 13: Methods Of Indoor Unit Address Setting And Query

    NOTE The timer time is relative time,that is delay after setting time METHODS OF INDOOR UNIT ADDRESS SETTING AND QUERY Long press the “LOCK” key for 5 seconds, enter into the indoor unit address setting interface; The temperature display area will display the address of the indoor unit that last time the user adjusted, and represent the address you are going to set, press “▲”and“▼...

  • Page 14: Technical Indication And Requirement

    8. TECHNICAL INDICATION AND REQUIREMENT EMC and EMI comply with the CE certification requirements.
  • Page 15 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. MD16U-004AW 16117100000921...
