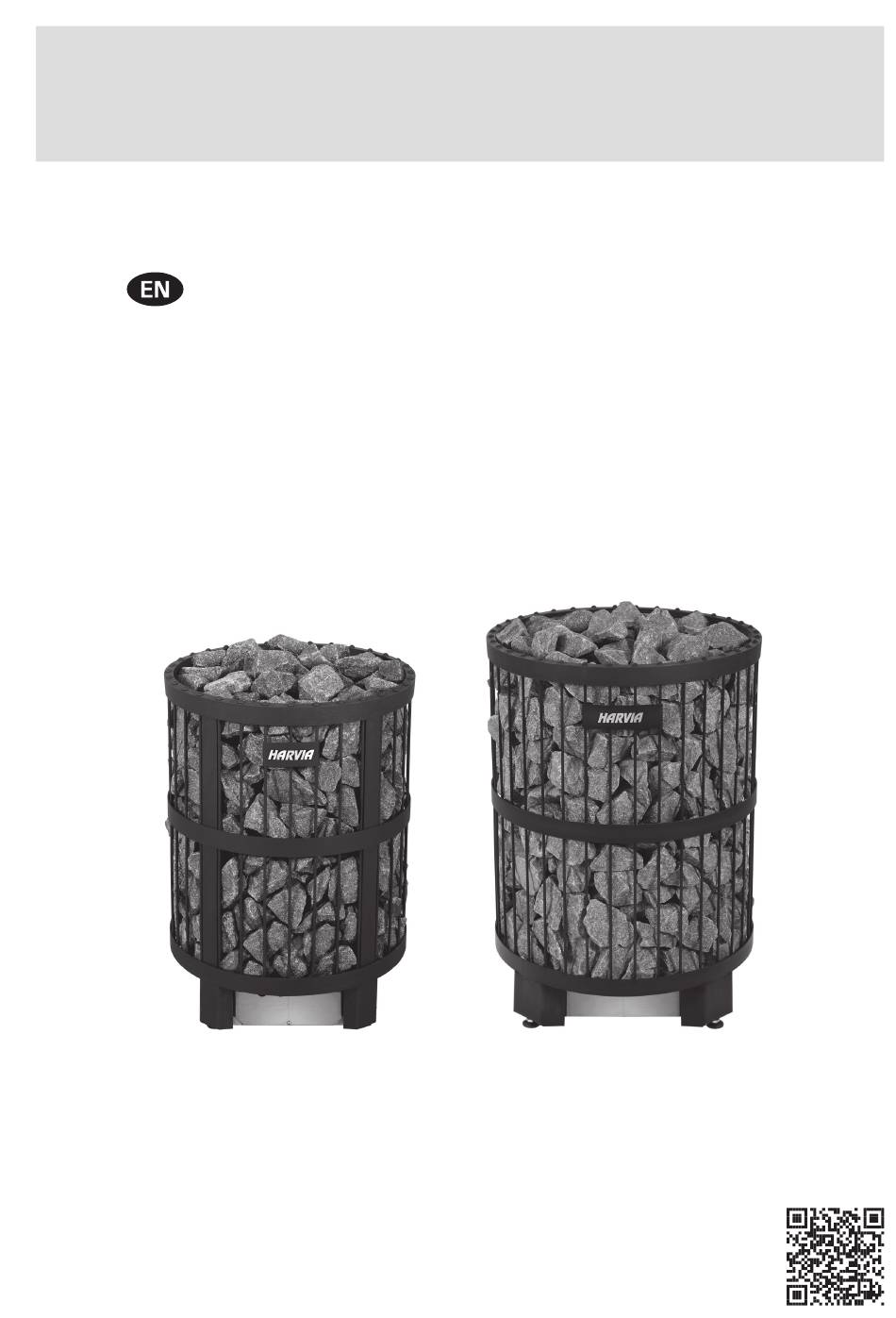

- Page 1 PO10E, PO12E, PO15E Instructions for Installation and Use of Electric Sauna Heater PO10E, PO12E PO15E 20032023 / Y05-0914 B...
-
Page 2: Table Of Contents
These instructions for installation and use are intended for the owner or the person in charge of the sauna, as well as for the electrician in charge of the electrical installation of the heater. After completing the installation, the person in charge of the installation should give these instructions to the owner of the sauna or to the person in charge of its operation. -
Page 3: Instructions For Use
The piling of the stones is illustrated in figure 1. Due to large variation in temperature, the sauna stones disintegrate in use. Therefore, they should PO10E, PO12E: You will need be rearranged at least once a year or even more ca 40 kgs of small stones (diameter 5–10 cm) often if the sauna is in frequent use. -
Page 4: Throwing Water On Heated Stones
Water properties Effect Recommendation Humus concentration Colour, taste, precipitates <12 mg/l Iron concentration Colour, odour, taste, precipitates <0,2 mg/l Manganese (Mn) concentration Colour, odour, taste, precipitates <0,10 mg/l Hardness: most important substances Precipitates Mg: <100 mg/l are magnesium (Mg) and lime, i.e. Ca: <100 mg/l calcium (Ca) Chloride-containing water... -
Page 5: Sauna Room
arranged correctly ( 2.2.). flow through the heater, which may result in overheating of surrounding materials. The sauna room heats quickly, but the Check that no heating elements can be seen • behind the stones. If heating elements can be temperature of the stones remain insufficient. -
Page 6: Blackening Of The Sauna Walls
min. 1000 mm 360° min. 500 mm 180° Figure 3. 2.4. Sauna Room Hygiene 2.1.1. Blackening of the Sauna Walls It is perfectly normal for the wooden surfaces of the Bench towels should be used during bathing to pre- sauna room to blacken in time. The blackening may vent sweat from getting onto the benches. -
Page 7: Instructions For Installation
Weight Stones Cubic vol. Height 2.3. min. max. min. PO10E 10,0 1900 PO12E 12,5 2100 PO15E 15,0 2100 Table 2. Installation details PO10E: min. 100 min. PO12E: min. 150 PO15E: min. 150 Figure 4. Safety distances (all dimensions in millimeters) -
Page 8: Installation Of Control Unit And Sensor
The heater’s electrical connections Fuses [A] 200 VAC Heater Output 3-Phase PO10E 10,0 3x30 PO12E 12,5 3x40 PO15E 15,0 3x45 3.3.1. 4x2,5 mm² (SSJ) Junction box Figure 5. Electrical connections 3.3.1. Installation of Control Unit and Sensor reason for this is that the insulating material of the Install the sensor as shown in figure 6. - Page 9 Sensor (installed on wall) min. 1 000 360° min. 180° A min.- max. B min. - max. PO10E / PO12E 100-150 100-200 PO15E 200-300 150-300 Figure 6. Installing the Temperature Sensor (all dimensions in millimeters) Figure 7. Installing the heater...
-
Page 10: Spare Parts
4. SPARE PARTS HEATER HEATING ELEMENT OUTPUT PART NO. PO10E 1640W / 208V ZSS-120 PO12E 2050W / 208V ZSP-250I PO15E 3000W / 208V ZSP-255I We recommend to use only the manufacturer’s spare parts. - Page 12 GLOBAL: P.O.Box 12 | Teollisuustie 1-7 | 40951 Muurame | FINLAND | +358 207 464 000 | harvia@harvia.fi | www.harvia.com CENTRAL EUROPE: Sentiotec GmbH | Division of Harvia Group | Wartenburger Straße 31, A-4840 Vöcklabruck T +43 (0) 7672/22 900-50 | F -80 | info@sentiotec.com | www.sentiotec.com...
