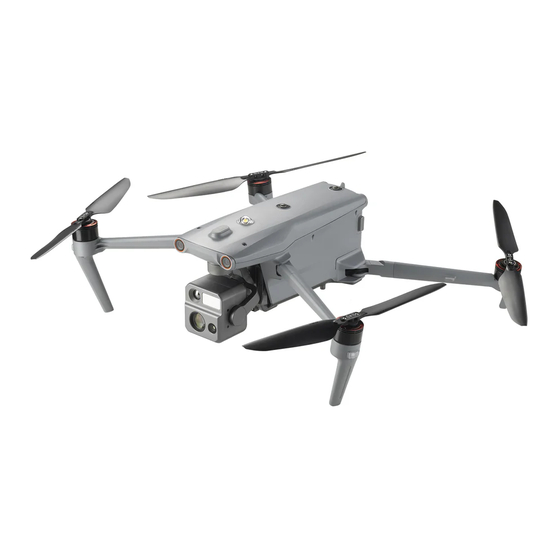

Summary of Contents for Autel EVO Max 4N
- Page 1 EVO Max 4N Maintenance Manual May 2023...
-
Page 2: Table Of Contents
Contents Introduction And Overview Usage Agreement Safe Flight Guidelines Flight Condition Requirements Operational Requirements Flight Restriction Transportation Guidelines Firmware Upgrade Maintenance And Checks Pre-flight Checks Maintenance And Checks Component Inspection Power system Flight Control System Fuselage Battery Upgrades And Calibration Consumable Parts List After-Sales Service Warranty Policy... -
Page 3: Introduction And Overview
Upon using this product, you are deemed to have read this document carefully, understood and accepted all the terms and contents of this document and all related documents of this product. Autel Robotics are not responsible for any damage and any legal responsibility caused by the direct or indirect use of this product. -
Page 4: Transportation Guidelines
Enter the flight interface of Autel Enterprise, check whether the flight status is "Safe to fly", whether the obstacle avoidance function is turned on normally, and check whether any other parameters you may require are met in the settings to ensure flight safety;... -
Page 5: Maintenance And Checks
*Time stated (every year or every 3 years) is noted as the time since activation. For different regions, Autel Robotics may adjust the maintenance type and cycle. For the latest service details, please consult your local dealer or Autel Robotics After-Sales team... - Page 6 *It is recommended to replace the propeller blades only in emergency situations in field operations; after any emergency flight, please contact the official technical support or authorized agent of Autel Robotics for maintenance guides promptly.
-
Page 7: Flight Control System
If the app prompts “IMU is abnormal”please perform an IMNU calibration. If the problem cannot be solved, please contact Autel After-Sales service. If the app prompts “Barometer abnormal”, please restart the aircraft and try again. If the abnormality continues, please contact Autel After-Sales service. - Page 8 Check all screws of the fuselage and make sure there are no loose screws or any missing screws. Screws Check all for any loosening screws; Check for any damage or cracks on the conjunction between the arm and Folding Arms fuselage；...
- Page 9 After the battery is installed, the battery buckles should push back normally without obvious shaking. Wipe off any foreign debris near the interface; Check the interface to see whether there is any foreign matters; Data Interface Use tweezers to remove any debris in the interface, such as small stones and small pieces of paper;...
-
Page 10: Battery
Before powering on the aircraft, check whether the lenses are damaged or cracked, and make sure the gimbal camera is in good condition. Power on the aircraft. The gimbal's self- calibration is complete after 5s, at which point the camera is pointed directly forward. - Page 11 Do not use unauthorized chargers. The voltage and current output by unauthorized chargers cannot fully match the battery cells, which may cause damage to the batteries. Avoid leaving the charger plugged in for a long time as this may damage the charger. Battery Maintenance Conditions In order to keep the aircraft battery healthy, maintenance is recommended if any of the following conditions are met:...
-
Page 12: Upgrades And Calibration
2. Avoid using the battery in a humid environment to prevent the battery from short-circuiting. 3. Do not disassemble or puncture the battery. 4. Store the battery in a cool and dry place. 5. If the app prompts that the battery temperature is too high during flight, please return to home as soon as possible. -
Page 13: After-Sales Service
Please contact Autel Robotics Technical Support as soon as possible to describe the situation in detail; Please check the flight records through Autel Enterprise, and look for the aircraft at the location where the data was interrupted according to the actual terrain;... -
Page 14: Collision Or Crash
Autel Robotics Technical Support. Please call the official technical support hotline at (844) MY AUTEL or (844) 692-88 35, or email to support@autelrobotics.com. Please describe the type of service required to the service specialist,...
