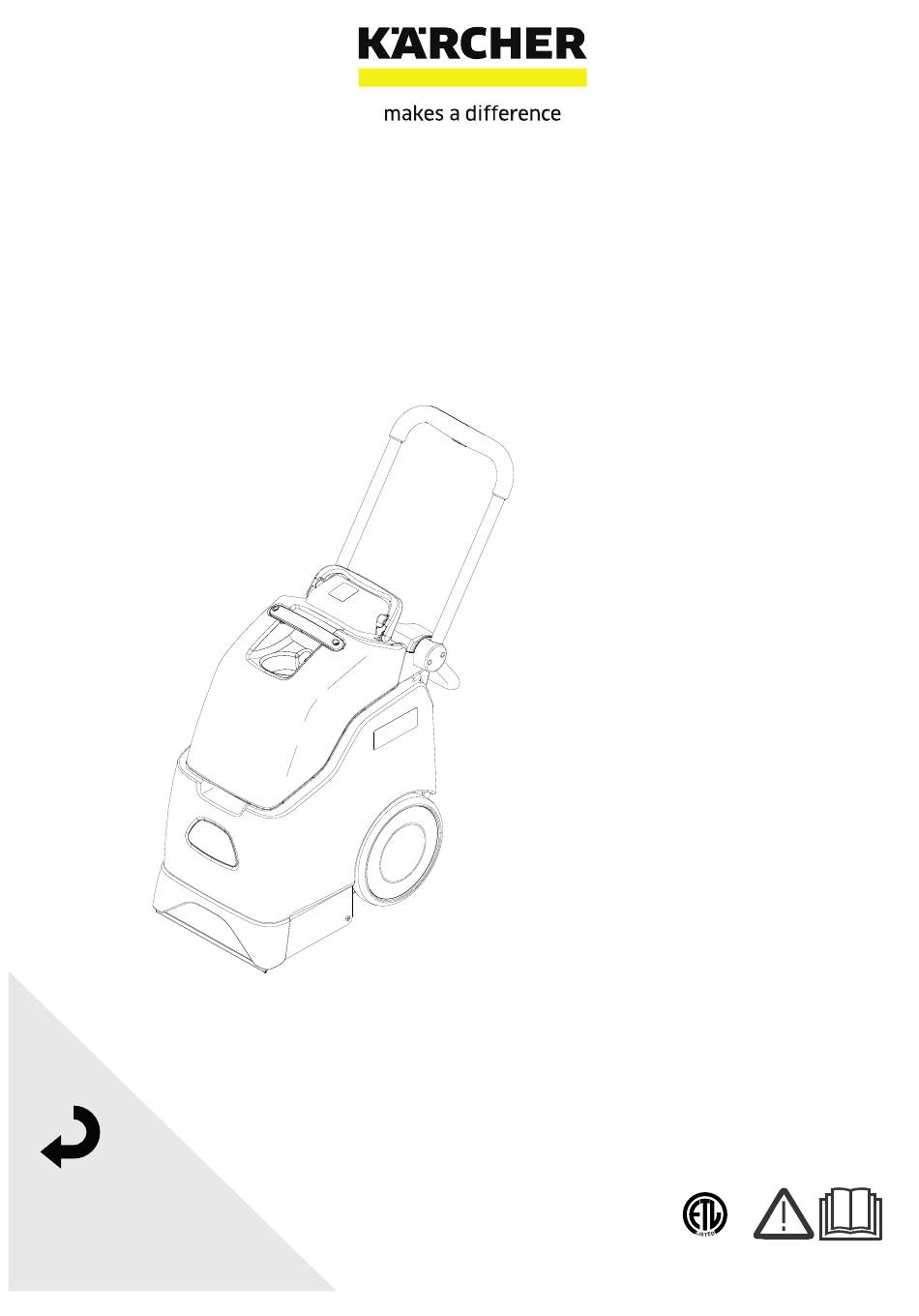

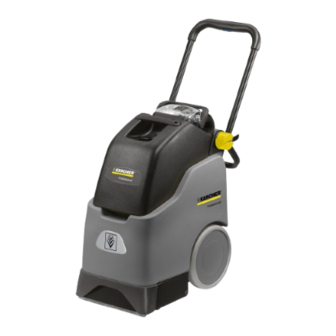

- Page 1 BRC 30/15 C English Register your product ® www.kaercher.com/welcome 86348550-N 09/11/19...
-
Page 2: Machine Data Label
The appliance can be fitted with an accessory tool for cleaning upholstery and stairs. MODELS: BRC 30/15 C 1.008-058.0 BRC 30/15 C *JP 1.008-055.0 BRC 30/15 C HD 1.008-657.0... -
Page 3: Table Of Contents
Table of Contents Machine Data Label ......2 Overview ....... . 2 Table of Contents . -
Page 4: How To Use This Manual
How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • HOW TO USE THIS MANUAL machine. Levels of hazards are identified that could • SAFETY result in product damage, personal injury, or severe •... -
Page 5: Safety
Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Connect to a properly grounded outlet. See Grounding Instructions. Do not leave the machine unattended. -
Page 6: Consignes De Sécurité Importantes
Safety CONSIGNES DE SÉCURITÉ IMPORTANTES Lors de l'utilisation de cette machine, des précautions de base doivent toujours être prises, y compris les précautions suivantes : LIRE TOUTES LES INSTRUCTIONS AVANT D'UTILISER CETTE MACHINE. Pour réduire le risque d'incendie, d'électrocution ou de blessure : Raccordez l'appareil à... -
Page 7: Hazard Intensity Level
Safety The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death. -
Page 8: Niveau D'intensité Du Danger
Safety Les symboles suivants sont utilisés dans tout ce manuel, tels que décrits ici: NIVEAU D'INTENSITÉ DU DANGER Il existe trois niveaux d'intensité du danger, identifiés par des termes d'avertissement - AVERTISSEMENT, ATTENTION et POUR VOTRE SÉCURITÉ. Le niveau d'intensité du danger est déterminé par les définitions suivantes : AVERTISSEMENT - Les dangers ou des pratiques contraires à... -
Page 9: Grounding Instructions
Safety THIS PRODUCT IS FOR COMMERCIAL 120 Volt Models USE ONLY. This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug in Electrical "Fig. A". A temporary adaptor that looks like the adaptor in "Fig. -
Page 10: Safety Label Location
Safety Safety Label Location The following WARNING LABEL(S) are found on your cleaning unit. These labels point out important Warnings and Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality, personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT remove these labels. -
Page 11: Operations
Operations Technical Specifications ITEM MEASURE (1) 3 stage, 1.5hp 100 cfm (2.8cubic meters/min.) Vacuum Motor Waterlift - 120” (305cm) Floating Brush 10” (25.4cm) Main Jet Solution Pump Solenoid Style Accessory Solution Pump Solenoid Style Solution Capacity 4.6 Gal (17.3L) Recovery Capacity 3.9 Gal (14.7L) Brush Speed 1160 rpm... -
Page 12: Inspection
Operations Chemicals Use only the suitable chemicals listed below. Using incompatible chemicals will damage the machine. To avoid electric shock use indoors only.To reduce Damages of this type are not covered under risk of fire, do not use volatile substances. Use only warranty. -
Page 13: Controls & Components
Operations Controls & Components 7. Solution Tank Drain Hose 8. Accessory Tool Connection 1. Power and Operation Mode Switch Solution connection for accessory tools. Turns accessory tool on or machine on. 9. Accessory Hose Connection 2. Main Handle Hose connection for accessory tool. 3. -
Page 14: Filling The Solution Tank
Operation Filling The Solution Tank 4. Place recovery tank back on machine. Place dome on recovery tank. Make sure dome 1. Release dome clamp. is seated correctly to ensure proper vacuum seal. Clamp dome securely to recovery tank. 2. Lift upper recovery tank from machine and set aside. -
Page 15: Operating The Machine
Operation Operating The Machine 4. To operate the machine, pull straight back without pushing down on handle. Press the solution 1. Vacuum the carpet and make sure it is cleared of spray button to apply cleaning solution. surface debris before cleaning. 2. -
Page 16: Operating Machine With Accessory Tools
Operation Operating Machine With Accessory 3. Turn on the switch in the accessory position. The application of cleaning solution is now controlled Tools by the lever on the accessory tool. This extractor is easily adapted for use with accessory tools: Contact Customer Service for details. -
Page 17: Maintenance
Maintenance Protect From Freezing Periodic Maintenance If it becomes necessary to store in temperatures that 1. After every 25 hours of operation, flush a white could drop below 40°F, the pumping system, hoses vinegar solution (ONE quart vinegar to two and valves must be protected from freezing with a gallons of water) or anti-browning solution (mixed methyl hydrate window washer antifreeze solution. -
Page 18: Maintenance Instructions
Maintenance Maintenance Instructions Only use the brushes provided with the appliance or those specified in the instruction manual. The Remove machine power cord from electrical use of other brushes may impair safety. source before making any adjustments or repairs to the machine. N'utilisez que les brosses fournies avec l'appareil ou celles qui sont spécifiées dans le manuel Retirez le cordon d'alimentation de la machine de... -
Page 19: Brush Motor Removal
Maintenance Brush Motor Removal Pump Removal 1. Turn off switch and unplug machine. 1. Turn off switch and unplug machine. 2. Set the machine in its upright position. Remove 2. Set the machine in its upright position. Remove the screws (2) in the back metal cover. Rotate the the screws (2) in the back metal cover. -
Page 20: Vacuum Motor Removal
Maintenance Vacuum Motor Removal 1. Turn off switch and unplug machine. Vacuum Motor Carbon Brushes 2. Set the machine in its upright position. Remove End Cap the screws (2) in the back metal cover. Rotate the cover down and slide back releasing the tab under the machine from the main frame. -
Page 21: Troubleshooting
Maintenance Troubleshooting PROBLEM CAUSE SOLUTION No power, nothing runs. Is the cord plugged in. Plug in cord. Circuit breaker tripped in building. Reset breaker. Faulty switch. Call for service. Faulty power cord or pigtail. Call for service. Vacuum motor will not run. Vacuum circuit breaker tripped. Reset breaker. - Page 22 Maintenance Troubleshooting Problem Cause Solution Squealing or grinding sound in Worn brush bearings Replace bearings. brush housing. Carpet not getting Make several passes at right angles to each Severe soil conditions clean other. Use a pre-spray. Carpet too wet Worn spray jet Replace spray jet which is producing a fine mist.
-
Page 23: Parts
PARTS BRC 30/15 C 1.008-058.0 BRC 30/15 C *JP 1.008-055.0 BRC 30/15 C HD 1.008-657.0 86348550 BRC 30/15 C... -
Page 24: Brush Deck
Brush Deck 86348550 BRC 30/15 C... - Page 25 Brush Deck SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86173020 SCR, M5 X 10, PHMS, ISO7045, SS 86217390 COVER, PULLEY, BRUSH DECK 86215260 BELT, HTD 5MM 69T 9 WIDE 86223780 SET SCR, M4 X 6LG, CP BLK 86223300 PULLEY, BRUSH 86214970 AXLE, PIVOT, BRUSH DECK...
-
Page 26: Control Panel
Control Panel 86348550 BRC 30/15 C... - Page 27 Control Panel SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86007200 SWITCH, DPDT 3-POSITION ROCKER 86002010 BOOT, 3/8 CIRCUIT BREAKER 86173140 SCR, KA40X16, PT OVAL,WN1412, PL SPARE ASM INCLUDES 86350630 ASM, CTRL PNL, BRC 30/15 C 86347130 AND 86217410 86230140 BREAKER, 1.5A CIRCUIT 86291460...
-
Page 28: Decal
Decal 86348550 BRC 30/15 C... - Page 29 Decal SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86347130 LABEL, CTRL PNL, BRC 30/15 C 86395860 LABEL, DOME ACCESSORY 86013720 LABEL, MINI EXT. INSTRUCTION 86335160 LABEL, KARCHER FRONT 10086570 86435700 LABEL HOME DEPOT LOGO DOMED ONLY 86401330 LABEL, SIDE, BRC 30/15 C 10086570 86437430 LABEL HOME DEPOT RENTAL...
- Page 30 Frame & Wheels 86348550 BRC 30/15 C...
- Page 31 Frame & Wheels SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86215830 BRKT, BRUSH HOUSING, 10 IN 86173010 SCR, M4 X 16, SHCS, ISO4762, SS 86216290 BUMPER, EXTRACTOR, FRONT 86218090 GASKET, VAC SHOE 86225530 VAC SHOE, 12 IN 86172630 NUT, M4, LOCK, ISO7040, SS 86173220 SCREW, M6-1 X 12 FLGHBTNHMS SS...
-
Page 32: Handle
Handle 86348550 BRC 30/15 C... - Page 33 Handle SERIAL NO. REF PART NO. DESCRIPTION NOTES FROM 86173140 SCR, KA40X16, PT OVAL WN1412, PL 86297150 HANDLE, GRIP, TOP 86225140 SWITCH, MICRO TONELUCK 86006770 SCR, 10-32 X 1/4 PHTR PLTD 86013730 SHIELD, MICROSWITCH 86297160 HANDLE, GRIP, BOTTOM 86224650 SPRING, BUTTON 86216470 BUTTON, SPRAY HANDLE 86292550...
-
Page 34: Solution 1
Solution 1 86348550 BRC 30/15 C... -
Page 35: Solution 2
Solution 1 SERIAL NO. PART NO. QTY DESCRIPTION NOTES FROM 86201110 PUMP, 110/120 60 HZ 86240520 HOSEBARB, 1/8MPT X 1/4 90D 86010640 WASHER, #10 LOCK EXT STAR 86006770 SCR, 10-32 X 1/4 PHTR PLTD 86215450 BOX, PUMP MOUNT 86304750 SHEILD, PUMP ENCLOSURE 86348550 BRC 30/15 C... - Page 36 Solution 2 86348550 BRC 30/15 C...
- Page 37 Solution 2 SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86219580 JET, RT ANG, 1/4 BARB 86216810 CLIP, SHAFT, 9-12MM 86219200 HOSEBARB, 3/8MPT, 2 X 1/4. 1 X 3/8 86172950 SCR, M5X12, SHCS, ISO4762, SS 86233150 CLAMP, 3/8 HOSE (D-SLOT) 86219090 HOSE, 3/8"...
-
Page 38: Tank & Dome
Tank & Dome 86348550 BRC 30/15 C... - Page 39 Tank & Dome SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86347110 TANK, SOL, GRY BRC 30/15 C 86002390 CLAMP, 1.75" WORM GEAR X .312 86011910 HOSE ASM, 1.5X34" VAC W/ELBOW 86291230 GASKET, DOME, MINI PRO 86217700 DOME 86291170 DOME, PLATE INTERIOR 86291190 SCREEN, VACUUM INTAKE...
-
Page 40: Vacuum
Vacuum (GROUND WIRE) 86348550 BRC 30/15 C... - Page 41 Vacuum SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86173000 SCR, KA40x20, PT OHS, WN1412, PLTD 86225480 VAC MOTOR, 120V 5.7 3ST W/TUBE 86173220 SCREW, M6-1 X 12 FLGHBTNHMS SS 86217420 COVER, VAC MOTOR 86217370 COVER, LOWER BACK 86006770 SCR, 10-32 X 1/4 PHTR PLTD 86010640 WASHER, #10 LOCK EXT STAR...
- Page 42 Wiring Diagram - Control Panel GROUND HANDLE SCREW MICRO SWITCH 3 CONDUCTOR 18 GUAGE BLACK SHEATH 6 CONDUCTOR 14/16 GUAGE CONNECTOR BLACK SHEATH STUD 11A BREAKER VAC MOTOR 1.5A BREAKER BRUSH MOTOR 3 CONDUCTOR 12 GUAGE YELLOW SHEATH TOP OF MACHINE MODE SWITCH...
- Page 43 Wiring Diagram - Control Panel SERIAL PARTNO. QTY DESCRIPTION NOTES NO.FROM 86218840 HARNESS, MAIN 86226230 WIRE ASM, CONTROL PANEL JUMPER 86218830 HARNESS, HANDLE 86226250 WIRE, 14" BLACK/14 76010 86348550 BRC 30/15 C...
-
Page 44: Wiring Diagram - Vacuum, Brush Motor & Pump
Wiring Diagram - Vacuum, Brush Motor & Pump DASH LINE = PUMP BOX OUTLINE PUMP PUMP MAIN FULL BRIDGE RECT CONNECTOR BRUSH MOTOR STUD BOTTOM OF MACHINE MOTOR BACK COVER 86348550 BRC 30/15 C... - Page 45 Wiring Diagram - Vacuum, Brush Motor & Pump SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86226250 WIRE, 14" GRN/14 76008 X 76008 86223460 RECTIFIER, 50A 1000V BRIDGE 86303670 WIRE ASM, 18 GA GRN 76008/76040 86303680 WIRE ASM, 18 GA GRN 76008/76042 86348550 BRC 30/15 C...
-
Page 46: Hose Diagram
Hose Diagram (86219050) (PRV 39724) TO SOLUITON TANK (86219090) (PRV 39728) (86289330) (86219200) (PRV 40062) (PRV 40114) (86240430) (PRV 40083) (86012680) TO SOLUTION TANK (86219090) (PRV 39725) MAIN PUMP (86219080) (PRV 39727) (86240520) (86219580) (PRV 40097) (PRV 44106) ACCESSORY PUMP (86219070) (PRV 39726) ACCESSORY TOOL... -
Page 47: Suggested Spare Parts
Suggested Spare Parts SERIAL PART NO. DESCRIPTION NOTES NO. FROM 86216430 BUSHING, BRUSH PRESSURE 86229010 BEARING, BRUSH 86216040 BRUSH, CHEVRON, 10 IN 86223350 PULLEY, MOTOR 86223300 PULLEY, BRUSH 86215260 BELT, HTD 5MM 69T 9 WIDE 86247110 MOTOR, 115V BRUSH DRIVE 86217390 COVER, BELT GUARD 86218090... - Page 48 Serial Number REF. MODEL: SERIAL # 86348550 BRC 30/15 C...
- Page 49 Notes 86348550 BRC 30/15 C...
- Page 50 THANK YOU! MERCI! DANKE! GRACIAS! Registrieren Sie Ihr Produkt und profitieren Sie von vielen Vorteilen. Register your product and benefit from many advantages. Enregistrez votre produit et bénéficier de nombreux avantages. Registre su producto y aproveche de muchas ventajas. www.kaercher.com/welcome Bewerten Sie Ihr Produkt und sagen Sie uns ihre Meinung.
