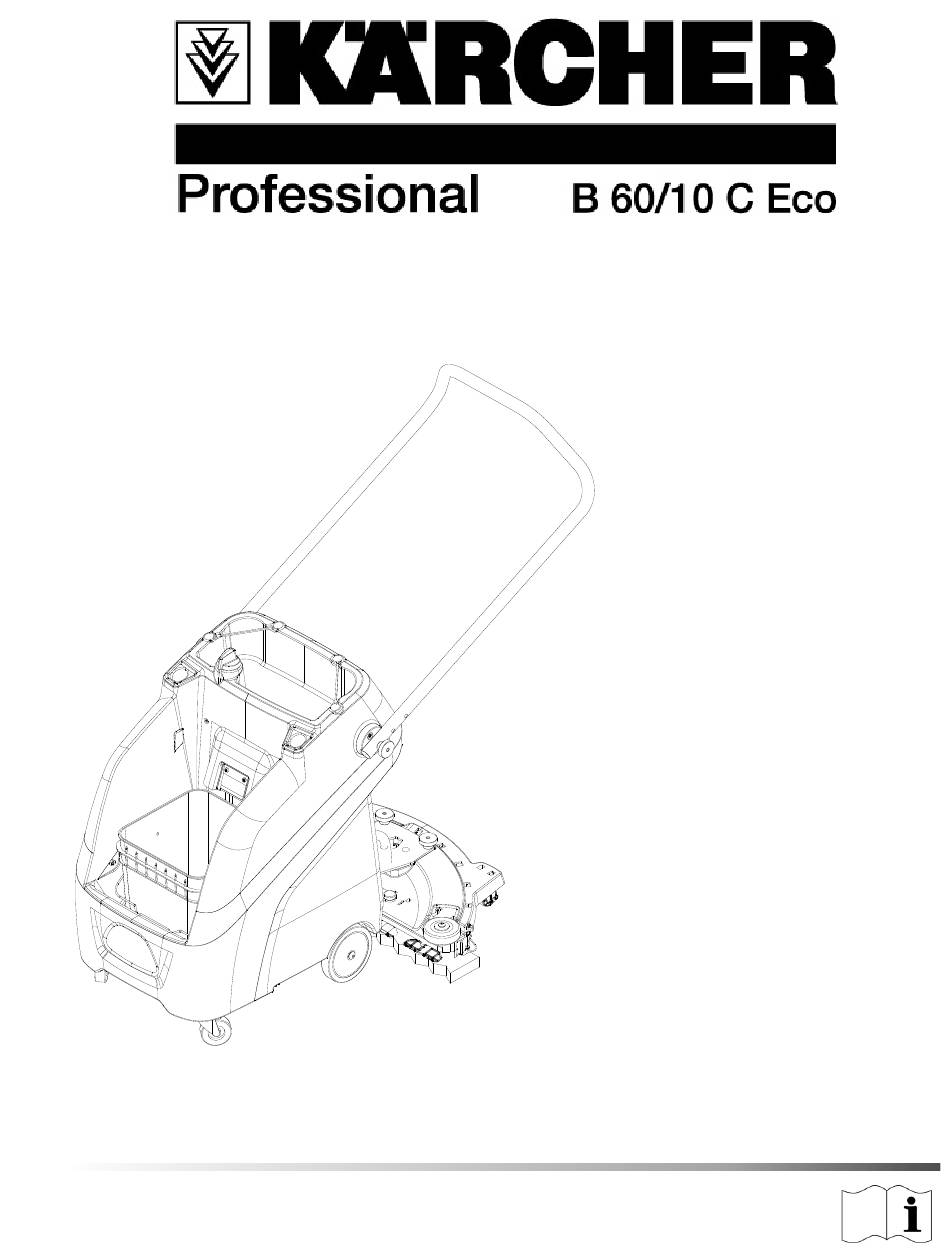

86390990-L
08/07/15
Operating instructions (ENG)
MODELS:
Read these instructions before using the machine.
B60/10CB
10067010
B60/10CP
10067070
B60/10CD
10067080

Advertisement

Table of Contents
loading

Related Manuals for Kärcher Professional B60/10 C Eco

Summary of Contents for Kärcher Professional B60/10 C Eco

  • Page 1 Operating instructions (ENG) MODELS: B60/10CB 10067010 B60/10CP 10067070 B60/10CD 10067080 Read these instructions before using the machine. 86390990-L 08/07/15...

  • Page 2: Machine Data Label

    Machine Data Label Overview The B60/10C is a hard floor cleaning machine intended for commercial use. This appliance applies a cleaning solution to the floor and then pumps the soiled water back into the recovery bucket. Warranty Registration Thank you for purchasing a Kärcher product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product.

  • Page 3: Table Of Contents

    Table of Contents Machine Data Label ......2 Overview........2 Table of Contents .

  • Page 4: How To Use This Manual

    How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •...

  • Page 5: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of injury: During operation, attention shall be paid to other persons, especially children. Use only as described in this manual.
  • Page 6 Safety IMPORTANTES MESURES DE SÉCURITÉ L'utilisation d'un appareil électrique demande certaines précautions: LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL). Pour réduire les risques d'incendie, de chocs électriques, ou de blessures. Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants. N'utiliser cette machine que comme décrit dans le présent manuel.

  • Page 7: Hazard Intensity Level

    Safety The following symbols are used throughout this guide as indicated in their descriptions HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
  • Page 8 Safety Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions: DEGRÉS DE RISQUES EN CAS DE DANGER Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante: AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner la mort.

  • Page 9: Safety Labels

    Safety Safety Labels NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ REMARQUE: Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé...

  • Page 10: Operations

    Operations Machine Operation Only use chemicals approved for use with this machine. Use of non-compatible chemicals may cause machine damage and will not be covered under the warranty. Carefully read ingredients on manufacturer’s Care must be exercised in the use of all chemicals. label before using any product in this machine.

  • Page 11: Technical Specifications

    Operations Technical Specifications ITEM MEASURE Solution Capacity 2.3 Gal 8.7Lt Recovery Capacity 2.3 Gal 8.7Lt Height 42.5 inches 1080MM (Handle adjusted to highest position) Length 43.5 inches 1105MM (Handle adjusted to highest position) Width without Deck 21.5 inches 546MM Width of Deck 28 inches 711MM Length...

  • Page 12: How This Machine Works

    Operations How This Machine Works The function of the Recovery System is to pump the soiled solution from the floor to the recovery bucket. The B60/10C is a manually propelled hard floor cleaner The recovery System consists of the squeegee, the intended for commercial use.

  • Page 13: Pre-Run Inspection

    Operations Pre-Run Inspection 1. Check all fittings and connectors for proper assembly. 2. Check all hoses for leaks. Repair or replace any damaged hoses. Equipment Set-up 1. Using a clean container, fill the solution tank with clean hot water. The machine is equipped with two fill ports. A large covered port on the side of the machine and a smaller uncovered port on the top of the machine.

  • Page 14: Cleaning

    Operations Cleaning 1. Pre-sweep area to be cleaned to remove debris. 2. Lower deck to the floor. 3. Turn solution knob to open solution valve to desired flow rate. Solution will begin flowing as soon as knob is turned from “Off” position. 4.
  • Page 15 Notes 86390990 B60/10C ECO...

  • Page 16: Maintenance

    Maintenance Periodic Maintenance Daily/Regular Maintenance Periodically inspect all hoses and connections on your 1. Empty unused cleaning solution from the solution machine. Frayed or cracked hoses should be repaired tank. or replaced to eliminate vacuum or solution loss. 2. After each use, rinse tank with fresh water. Periodi- cally inspect the recovery bucket and decontami- nate if necessary, using a Hospital Grade Virucide or a 10-1 bleach to water solution.

  • Page 17: Pad Installation

    Maintenance Pad Installation Line up notches in pad with both ends of the squeegee and press firmly into place on all five plastic flippers. 86390990 B60/10C ECO...

  • Page 18: Squeegee Installation

    Maintenance Squeegee Installation 1. Assemble squeegee from right to left. Hook squeegee on metal hook on the right side and align notches with tabs until squeegee is hooked on the metal tab on the left side. 2. Slip the plastic strap under the tab (#1) on the right side of the deck and slide towards the left side so that the strap is hooked under the metal tab (#2).

  • Page 19: Troubleshooting

    Maintenance Troubleshooting Problem Cause Solution No Solution Flow Solution Tank Empty Fill Solution Tank Solution Valve Closed Turn Solution Knob to Open Valve Hose Kinked or Clogged Repair or Replace Hose Debris in Solution Valve Remove Valve and Clean Poor or No Solution Recovery Machine Moving too Slow Increase Machine Speed Clean Outlet Check Valve, ensure...
  • Page 20 Notes: 86390990 B60/10C ECO...

  • Page 21: Options Installation

    Options Installation OPTIONS INSTALLATION 86390990 B60/10C ECO...

  • Page 22: Front Bucket Bracket

    Options Installation Front Bucket Bracket This must be installed by qualified personnel. Read all instructions thoroughly. Place machine on level surface. Ce produit doit être installé par du personnel qualifié. Lire soigneusement toutes les instructions. Placer l'appareil sur une surface de niveau Parts in Kit: 4 Gal.
  • Page 23 Options Installation 3. Slip each side of the bracket over bushings. 4. Install bucket. NOTE: For part numbers, see Models w/ Options section. 86390990 B60/10C ECO...

  • Page 24: Accessory Holder

    Options Installation Accessory Holder This must be installed by qualified personnel. Read all instructions thoroughly. Place machine on level surface. Ce produit doit être installé par du personnel qualifié. Lire soigneusement toutes les instructions. Placer l'appareil sur une surface de niveau Parts in Kit: Accessory Holder 2x Screw...

  • Page 25: Accessory Hook

    Options Installation Accessory Hook This must be installed by qualified personnel. Read all instructions thoroughly. Place machine on level surface. Ce produit doit être installé par du personnel qualifié. Lire soigneusement toutes les instructions. Placer l'appareil sur une surface de niveau Parts in Kit: Accessory Hook Screw...

  • Page 26: Wringer Bracket

    Options Installation Wringer Bracket This must be installed by qualified personnel. Read all instructions thoroughly. Place machine on level surface. Ce produit doit être installé par du personnel qualifié. Lire soigneusement toutes les instructions. Placer l'appareil sur une surface de niveau Parts in Kit: Wringer Bracket 2x Spacer...
  • Page 27 Options Installation 3. Slide wringer assembly over the spacers and push down firmly until it bottoms out. NOTE: For part numbers, see Models w/ Options section. 86390990 B60/10C ECO...
  • Page 28 Notes: 86390990 B60/10C ECO...

  • Page 29: Parts

    Parts PARTS 86390990 B60/10C ECO...

  • Page 30: Decals

    Decals 86390990 B60/10C ECO...
  • Page 31 Decals SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86335160 LABEL, KARCHER FRONT 86377650 LABEL, B 60/10 C ECO 53916530 LABEL WATER REGULATION B 60/10 86394560 LABEL, KNOB YELLOW 86390990 B60/10C ECO...

  • Page 32: Deck - Lift

    Deck - Lift 86390990 B60/10C ECO...
  • Page 33 Deck - Lift SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86379170 BUSHING,.250 X .375 X .500 BRZ 86375850 BUSHING, .250 X .375 X .625 BRZ 86375840 WASHER, 3/8 X .625 X .063 THR 86375830 BUMPER, RUBBER 1.00” DIA 86375660 CHECK VALVE 86375560 BRKT, SQUEEGEE LINK 86375450...

  • Page 34: Deck - Squeegee

    Deck - Squeegee 86390990 B60/10C ECO...
  • Page 35 Deck - Squeegee SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86377990 WHEEL, 1.61 OD X .313 ID X 1.00 W 86219690 KNOB, 1.5 OD X 5/16-18 86377810 ASM, FLIPPER 86375910 PAD, SCRUB 86379450 SQG, 2-3/8 X 31.12" L X 3/16 THK, URE 86375900 SQUEEGEE, 2-3/8 X 31.4”...

  • Page 36: Handle And Bucket

    Handle and Bucket 86390990 B60/10C ECO...
  • Page 37 Handle and Bucket SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86219690 KNOB, 1.5 OD X 5/16-18 86373110 HANDLE, BLACK, SCRUBBER 86374560 PIVOT, HANDLE SCREW, 1/4-20 X .75 PHPNHMS STL BLK 86276100 ZNPLT 86375360 BUCKET, 4 GALLON 86390990 B60/10C ECO...

  • Page 38: Recovery - Pump

    Recovery - Pump TO DECK 86390990 B60/10C ECO...
  • Page 39 Recovery - Pump SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86378780 HOSE, 1/2ID WIREBOUND X 29” 86375580 SHEET, CHECK VALVE 4” 86375570 RETAINER, CHECK VALVE 86375420 DIAPHRAGM, 4.75” DIA 86375410 CLAMP, LOWER DIAPHRAGM 86374490 CLAMP, UPPER DIAPHRAGM 86374480 RING, CLAMP 86374470 HOUSING, PUMP 86371410...

  • Page 40: Recovery - Wheel & Pump Mounting

    Recovery - Wheel & Pump Mounting RECOVERY PUMP 86390990 B60/10C ECO...
  • Page 41 Recovery - Wheel & Pump Mounting SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86376060 RING, 1/2” SS E RETAINING 86375430 ROD, CONNECTION 86375380 WHEEL, 8OD X 2 X 1.38ID PERFORMA 86375350 SCREW, 10-12 X 3.0 PHPNHSMS 86375340 AXLE, .5” DIA X 11.9” 86374500 YOKE, PUMP 86374450...

  • Page 42: Solution

    Solution 86390990 B60/10C ECO...
  • Page 43 Solution SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86378380 GASKET, SOLUTION FILL 86376010 HOSE, 1/2ID 11/16OD X 23” CLR 86376000 HOSE, 1/4ID X 14” CLR 86375870 NIPPLE, 1/2NPT X 2LG 86375630 BRKT, RECOVERY 86379340 STRAP, RETAINING 86390930 TANK, GREY, B60/10C 86371410 SCREW, 10-32 X .75 TMS SS BLK 86393800...

  • Page 44: Wheels

    Wheels 86390990 B60/10C ECO...
  • Page 45 Wheels SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86375640 CASTER, SWIVEL, 2.5 IN 86279380 WASHER, 1/2 X 1 X .08 NYL 86277440 SCREW, 3/8-16 X 2.5 SCHBTNHCS SS 86259770 WHEEL, 5D X 1 X .51D GRY 86233410 CLAMP, 3/4 DIA CUSHION .406 DIA 86228910 BUSHING, .377 X .502 X 1.25 FLG BRZ 86006580...
  • Page 46 Notes: 86390990 B60/10C ECO...

  • Page 47: Models With Options

    Models with Options MODELS WITH OPTIONS 86390990 B60/10C ECO...
  • Page 48 1.006-706.0 86390990 B60/10C ECO...
  • Page 49 1.006-706.0 SERIAL NO. PART NO. DESCRIPTION NOTES FROM INCLUDES 86379490 KIT, HYGIENE ACC, AUTOMOP ITEMS 1 THROUGH 7 86375670 ASSY, UTILITY TRAY 86375400 HOOK, ACCESSORY 86006500 SCREW, 8-15 X .5 SLTDHWHSMS TYPEA SS 86379460 KIT, ACC HOLDER 86374380 ACCESSORY HOLDER 73031130 SCREW 6X25 -10.9-R2R (IN6RD) 86006580...
  • Page 50 1.006-707.0 86390990 B60/10C ECO...
  • Page 51 1.006-707.0 SERIAL NO. PART NO. DESCRIPTION NOTES FROM INCLUDES 86379500 KIT, PRODUCTIVITY ACC, AUTOMOP ITEMS 1 THROUGH 8 86379290 KIT, WRINGER BRKT INCLUDES 2 86379390 SPACER, .225X.375X.187 NYL BLK 86375400 HOOK, ACCESSORY 86006500 SCREW, 8-15 X .5 SLTDHWHSMS TYPEA SS 86379460 KIT, ACC HOLDER 86374380...
  • Page 52 1.006-708.0 86390990 B60/10C ECO...
  • Page 53 1.006-708.0 SERIAL NO. PART NO. DESCRIPTION NOTES FROM INCLUDES 86379510 KIT, DETAIL ACC, AUTOMOP ITEMS 1 THROUGH 13 86379480 KIT, FRONT BUCKET 86375360 BUCKET, 4 GALLON 86378420 BRKT, BUCKET MOUNT, FRONT 86006530 SCREW 1/4-20 X 1 PPHMS SS 86379400 BUSHING,.255X.505X.500 FLG BLK 86379290 KIT, WRINGER BRKT INCLUDES 7...

  • Page 54: Suggested Spare Parts

    Suggested Spare Parts PART NO. DESCRIPTION SERIAL NO. FROM NOTES 86375920 3M EASY TRAP BULK ROLL 86375400 HOOK, ACCESSORY 86379450 SQG, 2-3/8 X 31.12" L X 3/16 THK, URE 86377810 ASM, FLIPPER 86374400 GRATE, SUCTION 86375660 CHECK VALVE 86375580 SHEET, CHECK VALVE 86219690 KNOB, 1.5 OD X 5/16-18 86375650...

  • Page 55: Serial Numbers

    Serial Numbers REF. MODEL: SERIAL # 10067010000030, 10067060000991, 10067070000015, 10067080000061 86390990 B60/10C ECO...
