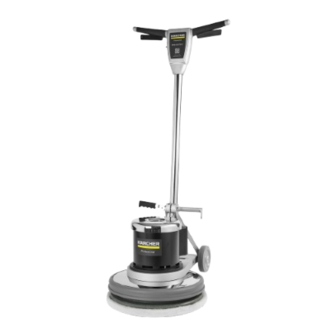

FLOOR POLISHER
MODELS:
BDS 43/175 C-10090710
BDS 51/175 C-10090720
BDS 51/175-300 C-10090700
Operating Instructions (ENG)
86317790-B
04/09/09
IPX4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDS 43/175 C and is the answer not in the manual?

Questions and answers

Summary of Contents for Kärcher BDS 43/175 C

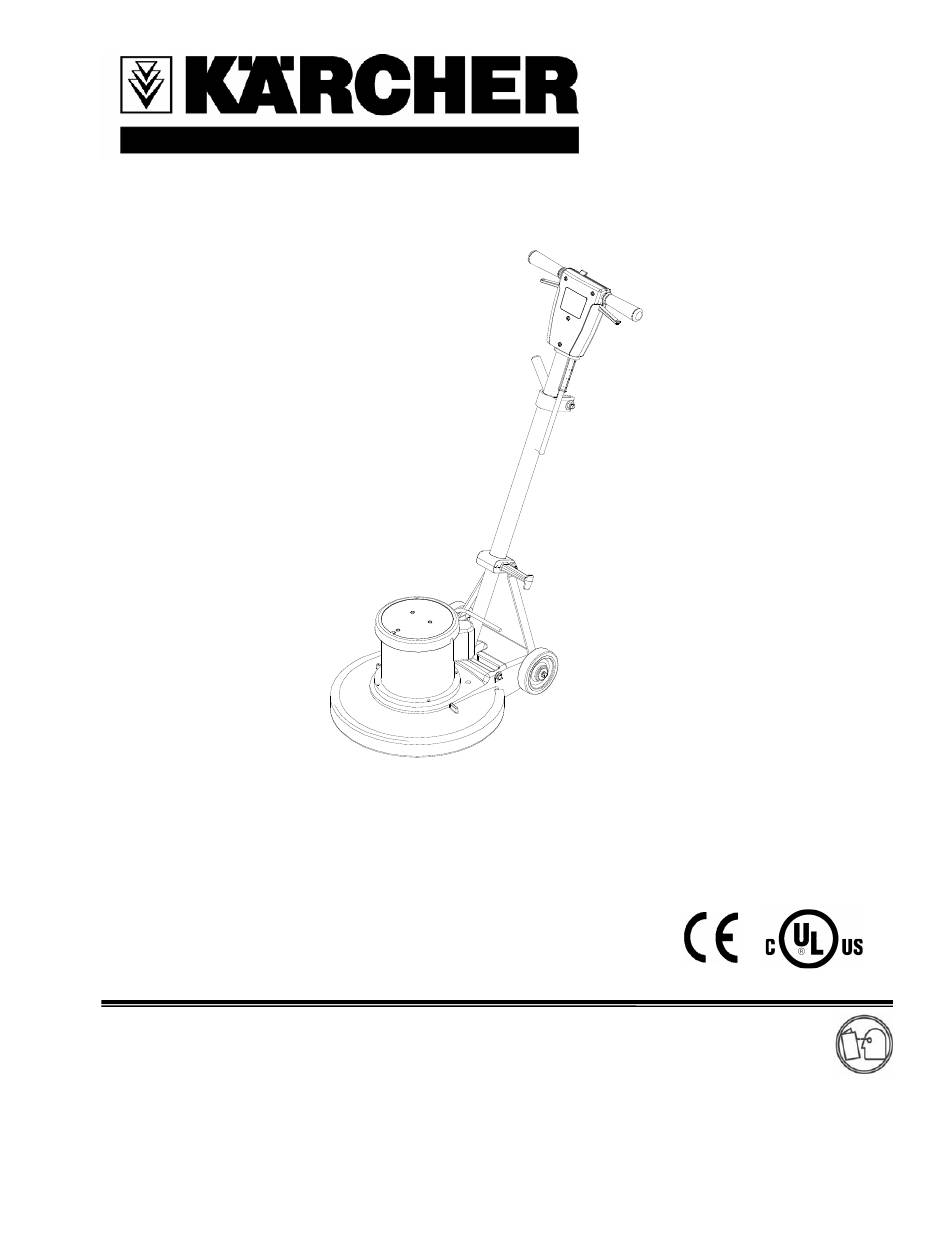

  • Page 1 FLOOR POLISHER MODELS: BDS 43/175 C-10090710 BDS 51/175 C-10090720 BDS 51/175-300 C-10090700 IPX4 Operating Instructions (ENG) 86317790-B 04/09/09...
  • Page 2 MACHINE DATA LOG/OVERVIEW Model: Date of Purchase: Serial Number: Sales Representative: Address: Phone Number: 86317790 FLOOR POLISHER 12/18/08...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Machine Data Log......2 Table of Contents......3 HOW TO USE THIS MANUAL How to use this Manual.....1-1 SAFETY Important Safety Instructions ....2-1 Hazard Intensity Level......2-2 Grounding Instructions 120V....2-3 Safety Label Location .......2-4 OPERATION Technical Specifications ....3-1 Handle Installation ......3-2 Controls..........3-3 Handle Adjustment......3-3...
  • Page 4: How To Use This Manual

    HOW TO USE THIS MANUAL This manual contains the following sections: The OPERATIONS section is to familiarize the operator with the operation and function of the HOW TO USE THIS MANUAL machine. SAFETY OPERATIONS The MAINTENANCE section contains preventive MAINTENANCE maintenance to keep the machine and its PARTS LIST components in good working condition.
  • Page 5: Safety

    SAFETY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual.
  • Page 6: Hazard Intensity Level

    SAFETY The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words – WARNING and CAUTION and FOR SAFTEY. The level of hazard intensity is determined by the following definitions: WARNING –...
  • Page 7: Grounding Instructions 120V

    SAFETY GROUNDING INSTUCTIONS-120V Grounding Pin THIS PRODUCT IS FOR COMMERCIAL USE GROUNDING CONNECTION USING AN ADAPTOR ONLY. Grounded ELECTRICAL: Outlet Metal Screw In the USA this machine operates on a one 15 FIGURE A amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine.
  • Page 8: Safety Label Location

    SAFETY SAFETY LABEL LOCATION NOTE: These drawings indicate the location of safety labels on the Machine. If, at any time, the labels become illegible contact your authorized representative for prompt replacement. WARNING LABEL P/N 86219740 PRV NO. 500194 86317790 FLOOR POLISHER 12/18/08...
  • Page 9 NOTES: 86317790 FLOOR POLISHER 12/18/08...
  • Page 10: Technical Specifications

    CONSTRUCTION duty rubber bumper, tubular steel adjustable handle with die cast aluminum handle housing MOTOR 1.5HP 115V induction BDS 43/175 C, BDS 51/175 C 1.75 HP 115V 175/300RPM BDS 51/175-300C BRUSH/PAD SPEED 175 rpm BDS 43/175 C, BDS 51/175 C...
  • Page 11: Handle Installation

    HANDLE INSTALLATION WHEN INSTALLING THE HANDLE ASSEMBLY, CHECK ORIENTATION OF THE CORD ASM AND CORD HOOK. MOTOR PLUG RECEPTACLE MOTOR PLUG PIVOT DECK HOLE ASSEMBLY (SEE NOTE) The handle must be installed by qualified personnel. Read all instructions thoroughly. The machine is shipped with handle unassembled. The machine is shipped with handle unassembled.
  • Page 12: Controls

    OPERATION NOTE: It is incorrect to make it lock CONTROLS opposite from the way it was assembled by applying more force to the nut. 1. Safety Lock – Prevents unintended operation of the machine. The pivot pin is off center in relationship to the axis of the handle.
  • Page 13: Machine Operation

    OPERATION MACHINE OPERATION DAILY MAINTENANCE 1. Inspect power cord for wear. To prevent electrical shock replace cords with frayed or cracked insulation immediately. For indoor use only. 2. Place machine in the storage position. When using the pad, always keep the machine 3.
  • Page 14 NOTES: 86317790 FLOOR POLISHER 12/18/08...
  • Page 15: Maintenance

    MAINTENANCE SCRUB BRUSHES FINISHED FLOORS NOTE: All original equipment brushes are Nylon Polish is the softest brush. It will gently equipped with “Perform Alert©”. This feature will clean finished tile or terrazzo floors without tell the operator when it is time to replace the removing floor finish or floor material.
  • Page 16: Machine Troubleshooting

    MACHINE TROUBLESHOOTING PROBLEM CAUSE SOLUTION Machine will not run Circuit breaker tripped in Check and reset. building. Power switch failure Test switch for continuity and replace if necessary. Tripped circuit breaker Reset. Faulty power cord Replace. Fuse in motor blown Replace (Dual speed only) CAUTION: To reduce the risk...
  • Page 17 NOTES: 86317790 FLOOR POLISHER 12/18/08...
  • Page 18: Brush/Pad Driver Group

    BRUSH/PAD DRIVER 1 1 A-1C 2A-2J 86317790 FLOOR POLISHER 12/18/08...
  • Page 19 BRUSH/PAD DRIVER SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86000120 02218 PAD DRIVER, 17" POLISHER 86284290 02217 PAD DRIVER, 19” HS 86284300 02219 PAD DRIVER, 20" POLISHER 86000140 02242 BRUSH, 17" NYL. POL. W/CLT.PLT BRUSH, 17" NYL.SCRUB 86283800 02240 W/CLT.PLT 86000130...
  • Page 20 ELECTRICAL 14 A-B 86317790 FLOOR POLISHER 12/18/08...
  • Page 21 86215140 140674 BARRIER SHEET 86224930 730012 STRAIN RELIEF, 14/3 STRAIGHT 86224300 730021 SPACER, POLISHER HANDLE BDS 43/175 C, 14B 86312500 BREAKER, CIRCUIT, 13A VDE BDS 51/175 C 14C 86312460 BREAKER, 14A, VDE CIRCUIT BDS 51/175-300 C 86317790 FLOOR POLISHER 12/18/08...
  • Page 22: Deck

    DECK 9A-9B 2A-2B 86317790 FLOOR POLISHER 12/18/08...
  • Page 23 REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM 86214930 03111 AXLE, MAIN POLISHER 2A 86216340 14372 BUMPER, EXTRUSION 41.0" BDS 43/175 C BDS 51/175 C, 2B 86216350 14373 BUMPER, EXTRUSION 50.8" BDS 51/175-300 C 86216600 27871 CAP, EXTRUSION 86221860...
  • Page 24: Handle

    HANDLE 86317790 FLOOR POLISHER 12/18/08...
  • Page 25 HANDLE SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM 86215130 14344 BAR, HANDLE ADJUST 86216370 14434 BUMPER, BURNISHER HANDLE 86004070 36196 GRIP, POLISHER HANDLE 86218440 38290 HANDLE, POLISHER 86005150 51326 LOCK, SAFETY HANDLE 86005160 51327 LEVER, SWITCH 86136350 57274 NUT, M6 HEX FINISH...
  • Page 26: Motor

    MOTOR DUAL SPEED ONLY 86317790 FLOOR POLISHER 12/18/08...
  • Page 27 MOTOR SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM BDS 43/175 C, 86312280 MOTOR, 1.5HP 115V INDUCTION BDS 51/175 C BDS 43/175 C, 86217490 27884 COVER, MOTOR BDS 51/175 C 86223690 70702 SCR, M5 X .8 X 15MM BLK...
  • Page 28: Wiring-120V

    WIRING-120V CORD SET -CB1 120V AC 15A -SWITCH -SWITCH -MOTOR SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM WIRE, 125MM, BLK/14, 86311830 76029X76029 86317790 FLOOR POLISHER 12/18/08 5-11...
  • Page 29: Suggested Spare Parts

    COUPLING, MTR/GEAR BOX 86135540 27352 BDS 51/175-300 C PLSHER 86223390 67488 RECTIFIER, 50A 600V BRIDGE BDS 51/175-300 C BDS 43/175 C, 86312500 BREAKER, CIRCUIT, 13A VDE BDS 51/175 C 86312460 BREAKER, 14A, VDE CIRCUIT BDS 51/175-300 C 5-12 86317790 FLOOR POLISHER 12/18/08...
