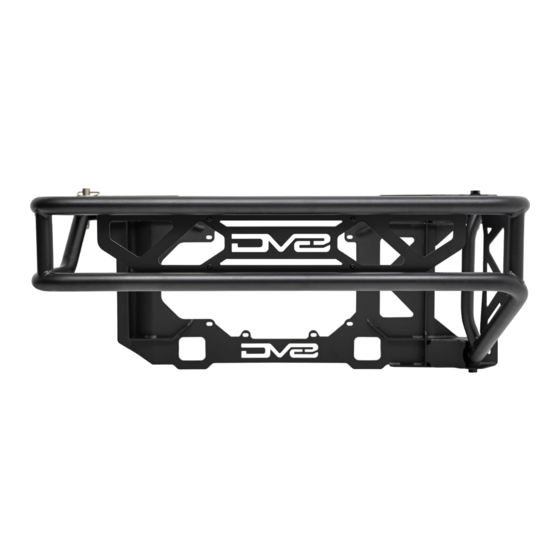

BRONCO TIRE GUARD/ TAIL
GATE REINFORCEMENT
2021+ BRONCO
TCBR-01
TOOLS
REQUIRED
-Rachet
-13mm Socket
-5mm Allen Bit
-T45 Torx Bit
-Lug Nut Tool
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2 Hours
Time to install this should only
take about two hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB TCBR-01
Summary of Contents for DVB TCBR-01
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM BRONCO TIRE GUARD/ TAIL GATE REINFORCEMENT 2021+ BRONCO TCBR-01 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED -Rachet - Novice/Intermediate - 2 Hours -13mm Socket - 1 (you) to 2 persons...
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspect- ing for missing pieces or damage. If you have any concerns, please contact the com- pany the product was purchased from. HARDWARE INCLUDED (2) M8X50mm Bolts (1) M8x75mm Bolt (3) M8 Flat Washers (2) M8 Split Washers (1) M8 Serrated Nut STEP 1 |...
- Page 3 INSTALLATION MANUAL STEP 2 | Use a lug nut tool to remove the spare tire. Note: Assistance is recommended to prevent injury and damage to the vehicle. STEP 3 | Use a T45 to remove the outer bolts from the door hinge. Note: Only the outer bolts need to be removed.
- Page 4 INSTALLATION MANUAL STEP 5 | Lay the tire guard over the spare tire carrier. Loosely secure with the factory hardware a 13mm socket. NOTE: The Plate will sit on top of the factory tire mount. STEP 6 | Secure the tire guard to the hinge using the provided M8x50mm hardware with a 5mm allen bit.
- Page 5 INSTALLATION MANUAL STEP 7 | Secure the tire guard and spare tire carrier using a 13mm socket and factory hardware. STEP 8 | Install the hinge stops by revealing the adhesive side and installing into the hinges like shown. These will help prevent the guard from hitting the tail light.
- Page 6 INSTALLATION MANUAL STEP 9 | Once installed, slowly open the tire guard as wide as possible checking to make sure that the guard will not contact the taillight. STEP 10 | Re-install the spare tire using a lug nut tool. If you are running a high offset wheel/ factory wheel (regular and Sasquatch) you will either need to run a ET lug nut...
- Page 7 INSTALLATION MANUAL STEP 11 | Close the tire guard and lock it in place with the provided pin. NOTE: It is not uncommon for this to be tight. It is designed to have pressure on the pin to prevent rattling. STEP 12 | Install the provided M8x75 hardware next to the pin using a 5mm...
