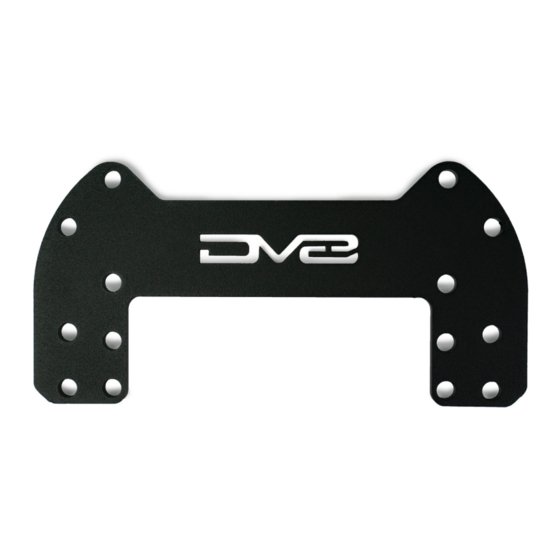

Third Brake Light Extension Bracket
2021+ Bronco
ABBR-02z
TOOLS
REQUIRED
- T30 Torx Bit
- #3 Allen Head
- 10mm Wrench
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 Person
Little skill level required.
Read and understand all
PRODUCT
INSTALLATION
TIME
- Approximately .5 Hours
Time to install this should
take about .5 hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Table of Contents
Related Manuals for DVB Third Brake Light Extension Bracket
Summary of Contents for DVB Third Brake Light Extension Bracket
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM Third Brake Light Extension Bracket 2021+ Bronco ABBR-02z TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - T30 Torx Bit - Novice/Intermediate - Approximately .5 Hours - #3 Allen Head...
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. You will need to remove your spare tire for this installation. Hardware Included: (4) M6x25mm Allen head Bolts (4) M6 Nuts...
- Page 3 INSTALLATION MANUAL STEP Lift away third brake light and set off to the side. STEP Place your new relocation bracket on the front of the carrier and align the holes. Using the provided M6 hardware, loosely secure bracket to carrier. NOTE: The lower holes on the bracket will align differently if you have the Sasquatch package or not.
- Page 4 INSTALLATION MANUAL STEP Reusing the factory screws and the T30 torx bit, place the third brake light on the backside of the bracket and secure. STEP Secure the lower hardware with a #3 allen head and 10mm wrench. 855-680-9595 NEED HELP?
- Page 5 INSTALLATION MANUAL STEP Double check all hardware is secure and reinstall spare tire. 855-680-9595 NEED HELP?
