ESYLUX PD 360/8 KNX BASIC Operating Instructions Manual

GB OPERATING INSTRUCTIONS
GB
OPERATING INSTRUCTIONS
Congratulations on your purchase of this high-quality ESYLUX product. To ensure correct device operation,
please read these installation/operating instructions carefully and keep them in a safe place for future reference.
1 • SAFETY INSTRUCTIONS
WARNING! Work on electrical systems must be carried out by authorised personnel only, with due
regard to the applicable installation regulations. Switch off the power supply before installing the
system. Please observe the installation regulations laid out in the safety measure for separated
extra-low voltage (SELV).
Use this product only as intended (as described in the user instructions). Do not make any
changes or alterations as this will render any warrantees null and void. You should check the
device for damage immediately after unpacking it. If there is any damage, you should not install
the device under any circumstances.
If you suspect that safe operation of the device cannot be guaranteed, you should turn the
device off immediately and make sure that it cannot be operated unintentionally.
NOTE: this device must not be disposed of as unsorted household waste.
Used devices must be disposed of correctly. Contact your local town
council for more information.
2 • DESCRIPTION

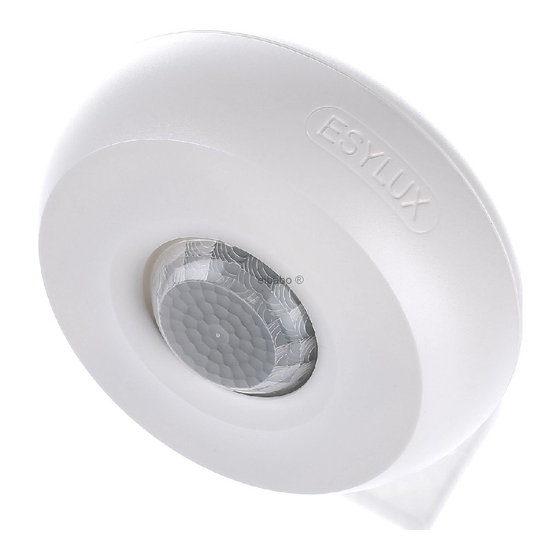

The ESYLUX PD 360/8 KNX BASIC is a presence detector with a 360° field of detection and
an integrated bus coupler for ceiling mounting. Follow the installation instructions provided
when installing the device. For further features, please refer to the operating instructions
"Description of applications". With a range of up to 8 m in diameter, the detector is suitable for use
in small rooms and passageways with natural lighting.
The PD 360/8 KNX BASIC is only intended for use in a KNX (EIB), TP (twisted pair) bus system
in conjunction with other KNX components.
If the PD 360/8 KNX BASIC detects that persons are present in its field of detection, it transmits
controlling telegrams for light outputs, depending on ambient brightness.
• Blended light measurement is suitable for FL, PL, halogen and incandescent lamps.
Certified KNX/EIB training centres provide specialist training on how to plan, install, activate,
document and apply the ETS (Engineering Tool Software) that is required for parameter setting.
3 • INSTALLATION / ASSEMBLY / CONNECTION
See separate assembly instructions.
For correct use of the device, ensure that the UC network (or KNX/EIB) to be connected is
designed for protection class III.
••
PD 360/8 KNX BASIC
www.esylux.com
PD 360/8 KNX BASIC (EB10430442)
4 • START-UP
All parameter settings are carried via the ETS (Engineering Tool Software).

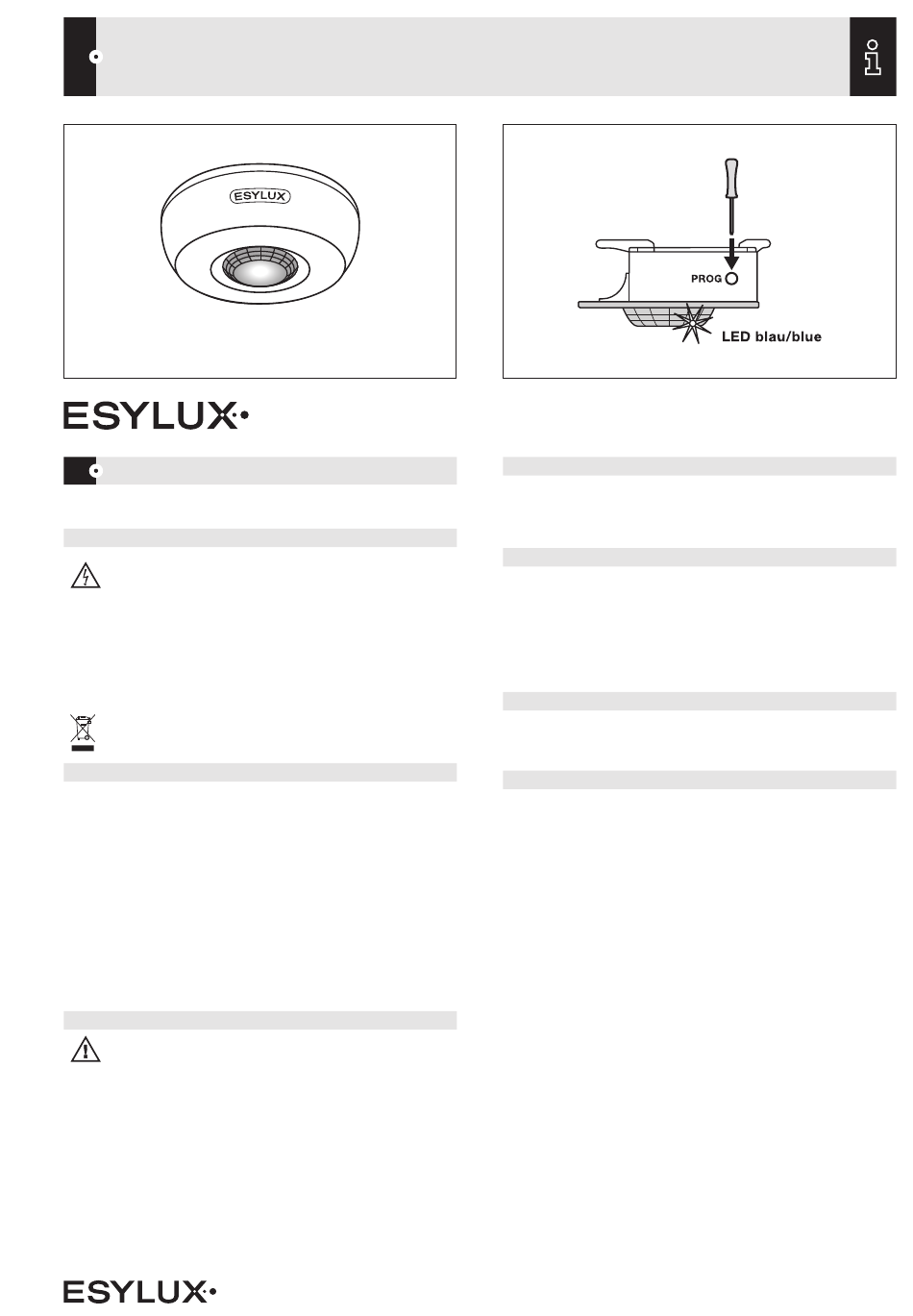

Pressing the programming button (see Fig.) activates the programming status for the physical
address on the PD 360/8 KNX BASIC. This is indicated by the blue LED. The product database
and application description are available to download at www.esylux.com.
5 • SWITCH-ON BEHAVIOUR / LED DISPLAY
• Connect the bus supply
This initiates a warm-up phase that lasts approx. 10 seconds.
The red LED and green LED will slowly flash alternately (f = 1 Hz).
• LED display after warm-up
Each time motion is detected, this is indicated by 2 x flashes of the green LED.
• In the "Slave" function each detection is acknowledged by 2 x flashes of the green LED.
6 • TEST MODE
Parameters can be set via the ETS (Engineering Tool Software).
Test mode switches to the RUN status after "storing", or 10 minutes after activating the test
mode. The blue LED flashes to indicate movement.
7 • ESYLUX MANUFACTURER'S GUARANTEE
ESYLUX products are tested in accordance with applicable regulations and manufactured with the
utmost care. The guarantor, ESYLUX Deutschland GmbH, Postfach 1840, D-22908 Ahrensburg,
Germany (for Germany) or the relevant ESYLUX distributor in your country (visit www.esylux.com
for a complete overview) provides a guarantee against manufacturing/material defects in ESYLUX
devices for a period of three years from the date of manufacture.
This guarantee is independent of your legal rights with respect to the seller of the device.
The guarantee does not apply to natural wear and tear, changes/interference caused by
environmental factors or damage in transit, nor to damage caused as a result of failure to follow
the user or maintenance instructions and/or as a result of improper installation. Any illuminants or
batteries supplied with the device are not covered by the guarantee.
The guarantee can only be honoured if the device is sent back with the invoice/receipt,
unchanged, packed and with sufficient postage to the guarantor, along with a brief description of
the fault, as soon as a defect has been identified.
If the guarantee claim proves justified, the guarantor will, within a reasonable period, either repair
the device or replace it. The guarantee does not cover further claims; in particular, the guarantor
will not be liable for damages resulting from the device's defectiveness. If the claim is unfounded
(e.g. because the guarantee has expired or the fault is not covered by the guarantee), then the
guarantor may attempt to repair the device for you for a fee, keeping costs to a minimum.
www.esylux.com
1 /6
