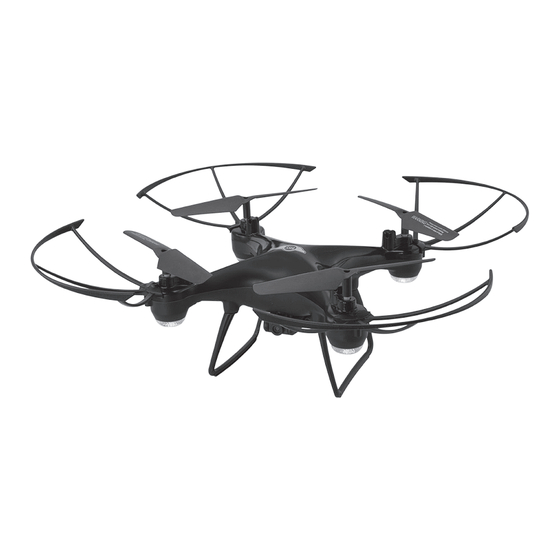

Quadcopter drone with wi-fi camera

Advertisement

Phoenix
Quadcopter Drone with Wi-Fi Camera
User's Guide for Model DRW329 v2363-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix DRW329 and is the answer not in the manual?

Questions and answers

Summary of Contents for sky rider Phoenix DRW329

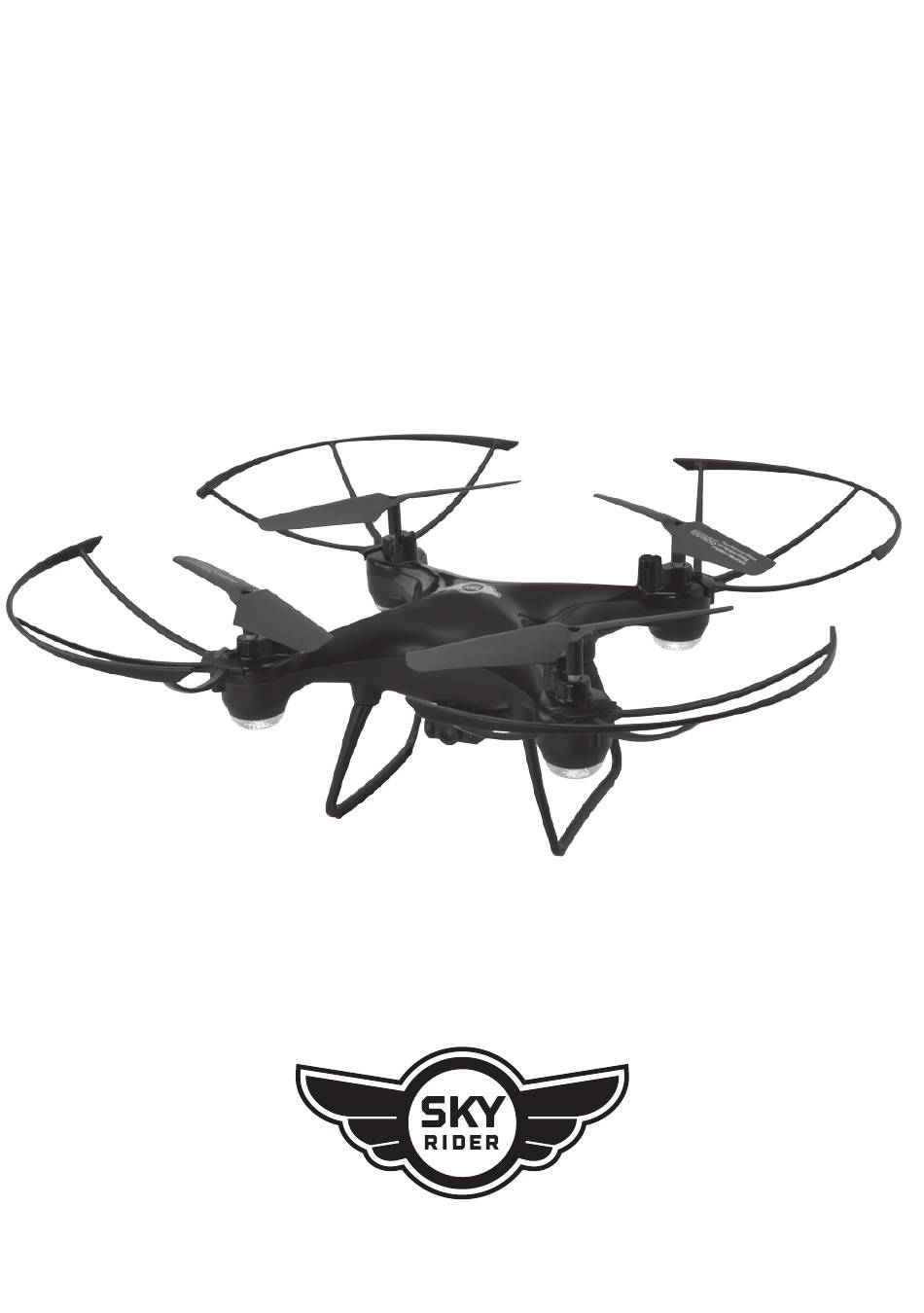

  • Page 1 Phoenix Quadcopter Drone with Wi-Fi Camera User’s Guide for Model DRW329 v2363-01...
  • Page 2 Warnings & Precautions Important Safety Instructions • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and • Read and follow all instructions. receiver. • Keep these instructions for future reference. • Connect the equipment into an outlet on a circuit • Heed all Warnings. different from that to which the receiver is connected. • Intended for children ages 14 and higher. Adult • Consult the dealer or an experienced radio/TV supervision is required. technician for help. • Only use attachments/accessories specified by the manufacturer. Additional Warnings & Precautions • Before flying, always check the body, rotors, and • WARNING: To reduce the risk of fire or electric battery for any damage or obstructions. shock, do not expose this apparatus to rain, moisture, • Battery should be free from cracks or swelling. dripping, or splashing.
  • Page 3: Table Of Contents

    Table of Contents Thunderbird Wi-Fi Drone Sky Rider Control App FAA Information: Flying Your Drone Under Free Download – 16 the Special Rule for Model Aircraft – 4 Connect to Wi-Fi – 16 Features – 4 Settings Screen – 17 Includes –...
  • Page 4: Thunderbird Wi-Fi Drone

    Thunderbird Wi-Fi Drone FAA Information: Flying Your Drone Under the Special Rule for Model Aircraft To fly under the Special Rule for Model Aircraft you must: • Fly for hobby or recreation ONLY • Register your model aircraft • Fly within visual line-of-sight •...
  • Page 5: Diagram & Specifications

    Diagram & Specifications • Dimensions: 300 x 300 x 113mm/11.8 x 11.8 x 4.4 in. (LWH) • Weight: 100g/3.52oz/0.22lb Rotor Rotor Guard Battery Compartment (rear) Landing Skid Camera (underside) LED Lights Power Switch Blue LEDs indicate the front located next to of the craft.
  • Page 6: Assembly

    Assembly Rotor Guards Attach each rotor guard as shown, then tighten with a screw in the center location using the included screwdriver. Landing Struts Place each landing strut on the underside of the craft as shown and press firmly into place. Camera Adjustment Rotate the camera lens to change the viewing angle.
  • Page 7: Remote Control

    Remote Control Functions 1. Speed Setting 6. Auto Spin/Lights Press to set low/med/high speed. Press for auto-spin. Press and hold to turn lights ON or OFF. 2. Power Switch 7. Power Indicator Light 3. Landing/Stop Press for one key take off. 8.
  • Page 8: Battery Installation

    Remote Control Battery Installation x4 AA batteries...
  • Page 9: Charging The Battery

    Charging the Battery Information & Procedure The craft’s battery must be charged before it can be flown. To avoid risk of injury or damage, be sure the craft and remote control are both powered OFF and remove the battery from the craft when charging. Charging time is approximately 120 minutes. Charge fully before use for best performance.
  • Page 10: Flying

    Flying Remote Link & Calibration Before flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate. Begin with the battery installed, the battery compartment closed, and the craft and remote powered OFF.
  • Page 11: Flight Controls

    Flight Controls pitch altitude roll roll altitude pitch Left Stick Right Stick controls Altitude (throttle) controls Pitch (forward/ and Yaw (spin). backward) and Roll (left/right). When You’re Finished Flying After landing, keep the Left Control Stick (throttle) in the lowest position and wait for the rotors to stop spinning.
  • Page 12: Trim Adjustment & Countering Drift

    Flying Trim Adjustment & Countering Drift Even after a craft is calibrated, it may still drift while airborne. To counter this effect you can adjust the trim for better control. However, adjusting the trim may not entirely eliminate drifting. Air currents and other factors can still affect the craft’s handling. Making Trim Adjustments Press the Trim button to enter Trimming Mode.
  • Page 13: Gyroscope Recalibration

    Gyroscope Recalibration Remote Trim Reset If the craft is having difficulty flying or is If you are still having difficulty flying, it may behaving erratically, it’s gyroscopes may help to reset the trim adjustments on the need to be recalibrated. Do not attempt to remote.
  • Page 14: Tips For Safe Operation

    Flying Tips for Safe Operation • It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. • When flying indoors avoid walls and ceilings, as the craft may be drawn towards them if closer than 2-3 feet.
  • Page 15: Auto-Spin

    Auto-Spin Press the Auto-Spin button to activate Auto-Spin. The craft will spin (yaw) in a clockwise direction. Press the Auto-Spin button again or move the Right Control Stick in any direction to cancel Auto-Spin. Use the Left Control Stick to control the altitude of the craft while in Auto-Spin. Flips Before attempting a flip, be sure that there is enough clear space around the craft, ideally 9-10 ft.
  • Page 16: Sky Rider Control App

    Free Download Android Scan the appropriate QR code with your smartphone or search for “Sky Rider Control” in the Apple App Store or Google Play Store. Connect to Wi-Fi NOTE: Wi-Fi control may be interrupted by interference from other nearby Wi-Fi equipment.
  • Page 17: Settings Screen

    Settings Screen Flight Parameters Interface Parameters Auto Save Parameters - Trim settings Right Hand Mode - Reverses the locations adjusted in the app will be saved for future of the Left and Right flight controls on the flights. Be sure to reset the parameters screen.
  • Page 18: Screen Controls

    Sky Rider Control App Screen Controls When connected to the craft via Wi-Fi, the view from the camera will be displayed here. 1. Return to Home Screen 5. Speed Setting 8. 3D View (VR Mode) 2. Take Photo 6. Enable/Disable 9.
  • Page 19: Flight Controls

    Flight Controls 1. Throttle/Yaw Control 7. Roll Trim (tap arrow 12. Trim Reset once to adjust) 2. Pitch/Roll Control 13. Auto-Spin 8. Pitch Trim (tap arrow 3. Auto-Take Off 14. Nav Lights ON/OFF once to adjust) 4. Emergency Stop 9. Flip 5.
  • Page 20: Using The Remote & App Together

    Sky Rider Control App Using the Remote & App Together It can be easier to capture photos and video by using the remote to fly the drone and using the app in a viewing only method. Use the app and the remote together by attaching the smartphone holder (included) to the remote and placing your phone in the holder.
  • Page 21: 3D Mode

    3D Mode VR Mode splits the phone’s screen for use in a VR headset. Press the 3D button on the screen to turn this feature ON or OFF. Use VR Mode to give a friend a fully immersive, point- of-view flying adventure. NOTE: •...
  • Page 22: Parts & Repair

    Parts & Repair REMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com.
  • Page 23: Troubleshooting

    Troubleshooting Troubleshooting Guide PROBLEM POSSIBLE CAUSES SOLUTION Craft does not • No power to remote • Check remote batteries, or craft. replace if needed. respond to controls. • Poor contact between • Check craft battery, be power plugs. sure it is fully charged. •...
  • Page 24: Customer Support

    Customer Support Contact Information Warranty Website: www.gpx.com See included 30 Day Warranty for warranty information. Warranty and the most up-to- Email Support: prodinfo@dpiinc.com date version of this User’s Guide can also be found at: www.gpx.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com...
