Summary of Contents for sky rider DR1717 v1772-01

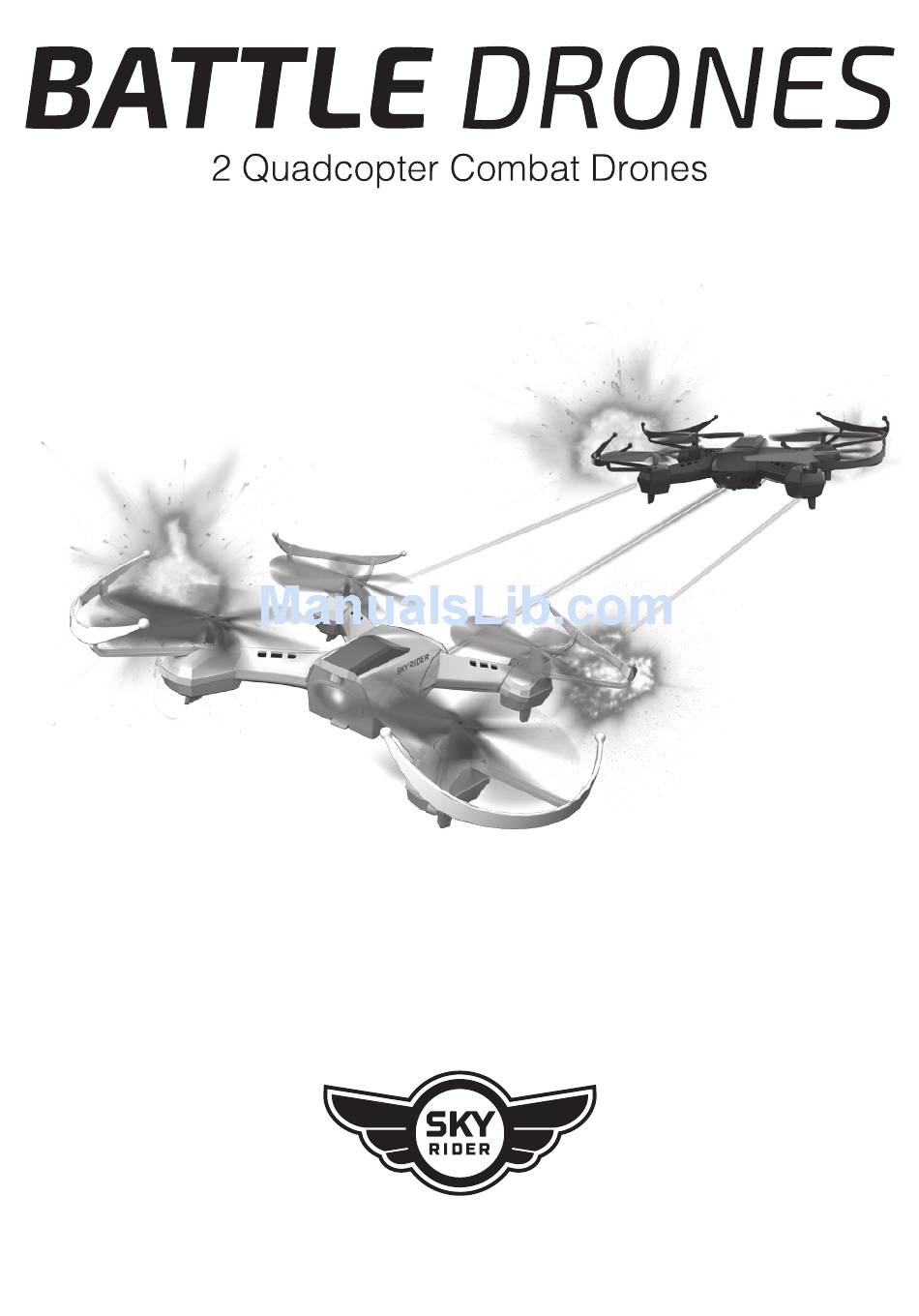

  • Page 1 User’s Guide for Model DR1717 v1772-01...
  • Page 3 Warnings & Precautions Important Safety Instructions • Reorient or relocate the receiving antenna. • Read and follow all instructions. • Increase the separation between the equipment and • Keep these instructions for future reference. receiver. • Heed all Warnings. • Connect the equipment into an outlet on a circuit •...
  • Page 4: Table Of Contents

    Table of Contents Battle Drones – 5 Battle! – 14 Features Flying Tips & Features – 16 Includes Tips for Safe Operation Overview – 6 Speed Setting Craft Layout & Features Flips Remote Control – 7 Parts & Repair – 18 Functions Parts Replacement Battery Installation...
  • Page 5: Battle Drones

    Battle Drones Features Includes • Infrared lasers and sensors with 4 • 2 anti-interference remote controls: strike battle functions each requires 4 AA batteries (not included) • 360° flips & tricks • 2 rechargeable lithium-polymer • 6-axis gyroscope battery • 3 speeds: low, medium, high •...
  • Page 6: Overview

    Overview Craft Layout & Features Rotors & Guards Blue/red rotors indicate front. Landing Feet Forward LED Light IR Hit Receiver Rear LED Light Battery Compartment IR Laser...
  • Page 7: Remote Control

    Remote Control Functions S (Shoot) V (Velocity) Power Switch & Indicator Light Press fire the IR laser. Press to set craft speed. ARMED SAFE FLIP Flip Press once, then move Right Control Stick to perform a flip. Left Control Stick Right Control Stick Increase Throttle: Pitch:...
  • Page 8: Battery Installation

    Remote Control Battery Installation Use included screwdriver to remove battery cover. Insert 4 x AA batteries (not included).
  • Page 9: Charging The Battery

    Charging the Battery Battery Charging Procedure The craft’s battery must be charged before it can be flown. Before charging, be sure the craft and remote control are powered OFF to avoid risk of injury or damage. It is recommended to remove the battery from the craft when charging. Charging time is approximately 40 to 50 minutes.
  • Page 10: Flying

    Flying Craft/Remote Link Before flying, each craft and remote pair must be linked and the gyroscopes must be allowed to calibrate. NOTE: It is important to perform the craft/remote link one pair at a time. If both craft are powered ON during the linking procedure they will both be linked to the same remote and the second remote will be unable to link to either craft.
  • Page 11: When You're Done Flying

    Step 3 Power the remote control ON. The light on the remote will blink as it searches for the signal from the craft. An audible chime will ARMED sound when the remote and the craft have SAFE linked with each other. FLIP Step 4 Push the Left Control Stick (throttle) fully...
  • Page 12: Trim Adjustment

    Trim Adjustment Setting Trim & Countering Drift Even after the craft is calibrated, it may show a tendency to drift while airborne. Adjusting the trim will help counter this effect and allow for better control the craft. Press and hold the “S” button and use the Right Control Stick to correct the drift of the craft.
  • Page 13: Gyroscope Recalibration

    Gyroscope Recalibration If the craft is experiencing difficulty flying or is behaving erratically, the gyroscopes may need to be recalibrated. Do not attempt to do this while flying. Safely land the craft before attempting this procedure. Pull both control sticks to the lowest right position for 2-3 seconds and wait for a chime from the remote.
  • Page 14: Battle

    Battle! Press “S” to shoot IR laser at your opponent. ARMED SAFE FLIP 9.8 ft. range...
  • Page 15 Hit - Game Over Craft will spin left and right. Craft will spin in place and slowly land on the ground. Craft will spin 360° two times. Craft will flip.
  • Page 16: Flying Tips & Features

    Flying Tips & Features Tips for Safe Operation • It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. • When flying indoors, avoid walls and ceilings, as the craft will be drawn towards them if closer than 2-3 feet.
  • Page 17: Flips

    Flips Before attempting a flip, be sure that there is ample clear space around the craft, ideally 5-10 ft. in all directions. It is not recommended to attempt to flip around or through any obstacles, as this may result in unintended damage. Press the Flip button then move the Right Control Stick in any direction and the craft will perform a flip in the same direction.
  • Page 18: Parts & Repair

    Parts & Repair REMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, SD cards etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com.
  • Page 19: Troubleshooting

    Troubleshooting If you are experiencing problems using or flying the craft, consult this table. PROBLEM POSSIBLE CAUSES SOLUTION Craft does not • No power to remote • Check remote batteries, or craft. replace if needed. respond to controls. • Craft is out of range. •...
  • Page 20: Customer Support

    Customer Support Contact Information Warranty Website: www.gpx.com See included 30 Day Warranty for warranty information. Warranty and the most up-to- Email Support: prodinfo@dpiinc.com date version of this User’s Guide can also be found at: www.gpx.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com...
