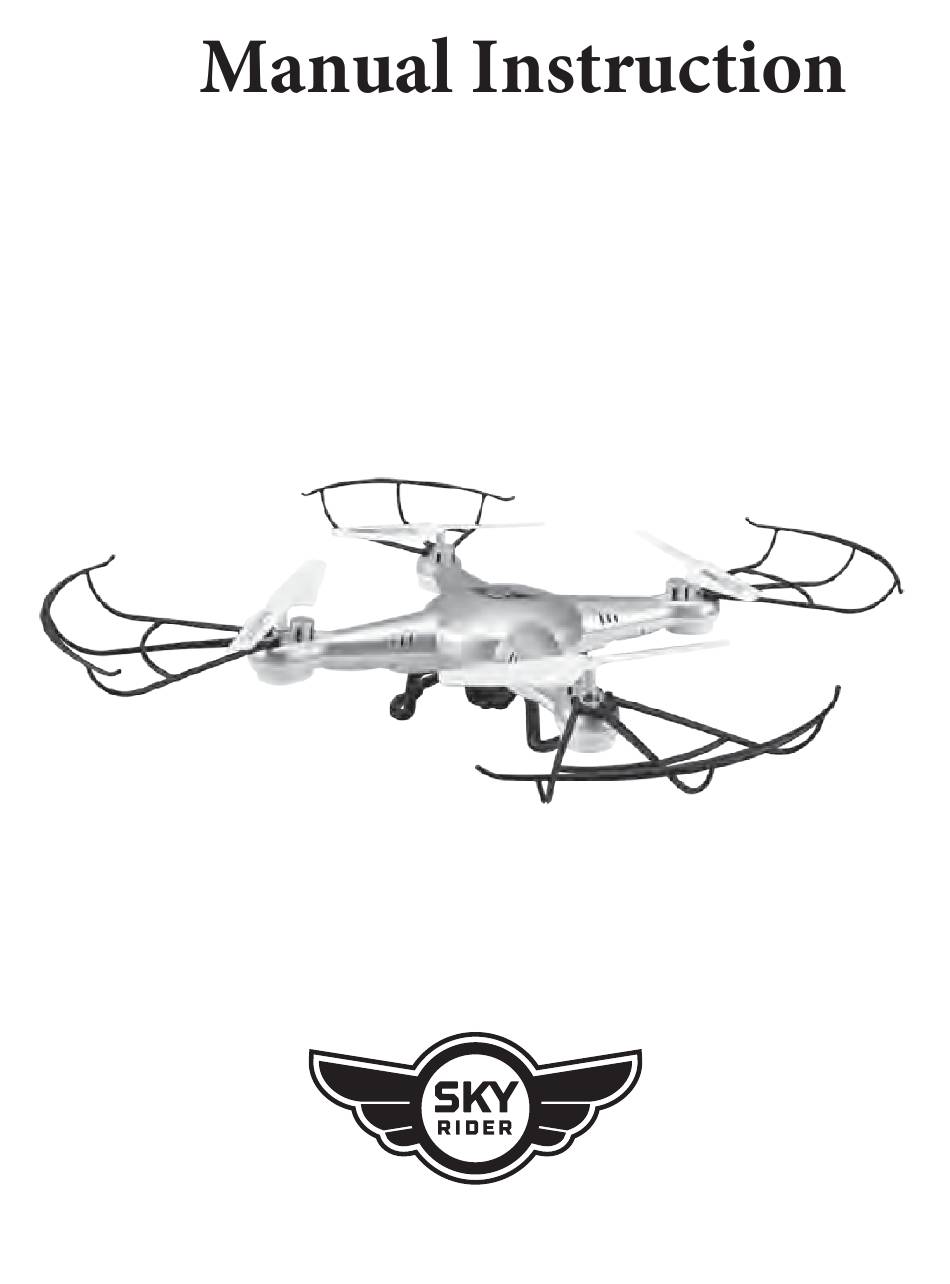

sky rider DRW358F60 Manual Instruction

sky rider DRW358F60 Manual Instruction

2.4g rc drone with wifi camera

Advertisement

2.4G RC Drone with WiFi Camera
User's Guide for Model DRW358S v1959-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRW358F60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sky rider DRW358F60

  • Page 1 2.4G RC Drone with WiFi Camera User’s Guide for Model DRW358S v1959-01...
  • Page 2 Warnings & Precautions Important Safety Instructions Drone Additional Warnings & Precautions CAUTION FCC Warnings WARNING:...
  • Page 3: Table Of Contents

    Table of Contents 2.4G RC Drone with WiFi Camera Sky Rider View App Features – 4 Free Download – 15 Includes – 4 Connect to WiFi – 15 Diagram – 5 Smartphone Holder – 16 Camera Adjustment – 5 Virtual Reality Mode – 17 Remote Control Parts &...
  • Page 4: Features

    Features Includes 360° flips & tricks USB charging cable 6-axis gyroscope 2.4GHz remote control: requires 4 AA batteries (not included) Free app for WiFi viewing Rechargeable lithium polymer battery Adjustable angle WiFi camera 4 replacement rotors 3 speeds Detachable smartphone cradle Control distance: up to 300 feet Screwdriver LED navigation lights...
  • Page 5: Diagram

    Diagram Rotor Guard Rotor FRONT Landing Skid LED Lights Blue LEDs indicate the front of the craft. Red LEDs indicate the rear Battery Compartment/ of the craft. Camera (underside) Camera Adjustment Rotate the camera lens to change the viewing angle.
  • Page 6: Remote Control

    Remote Control Functions Power Switch Flip Press once, Speed Setting then move Right Control Stick in any direction to perform a flip. RESET HEADLESS TRIM Headless Mode Trim Adjustment Press and hold to enter Left Control Right Control Trimming Mode, then Stick Stick move right control stick to...
  • Page 7: Battery Installation

    Battery Installation 4x AA batteries...
  • Page 8: Charging The Battery

    Charging the Battery Information & Procedure The craft’s battery must be charged before it can be flown. Before charging, be sure the craft and remote control are powered OFF to avoid risk of injury or damage. It is recommended to remove the battery from the craft when charging. Charging time is approximately 60 minutes.
  • Page 9: Flying

    Flying Remote Link & Calibration Before flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate. Begin with the battery installed, the battery compartment closed, and the craft and remote powered OFF.
  • Page 10: Flight Controls

    Flying Flight Controls altitude roll pitch roll pitch altitude Left Stick controls Altitude Right Stick controls Pitch (power) and Yaw (spin). (forward/backward) and Roll (left/right). RESET HEADLESS TRIM When You’re Finished Flying After landing, keep the Left Control Stick (throttle) in the lowest position and wait for the rotors to stop spinning.
  • Page 11: Trim Adjustment & Countering Drift

    Trim Adjustment & Countering Drift Even after a craft is calibrated, it may still drift while airborne. To counter this effect you can adjust the trim for better control. However, adjusting the trim may not entirely eliminate drifting. Air currents and other factors can still affect the craft’s handling in the air. Making Trim Adjustments Press and hold the Trim button to enter Trimming Mode, indicated by an audible chime from the remote.
  • Page 12: Gyroscope Recalibration

    Flying Gyroscope Recalibration Remote Trim Reset If the craft is experiencing difficulty flying If you are still having difficulty flying, it or is behaving erratically, it’s gyroscopes may help to reset the trim controls on the may need to be recalibrated. Do not attempt remote.
  • Page 13: Tips For Safe Operation

    Tips for Safe Operation It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. When flying indoors avoid walls and ceilings, as the craft will be drawn towards them if closer than 2-3 feet.
  • Page 14: Flips

    Flying Flips Before attempting a flip, be sure that there is ample clear space around the craft, ideally 9-10 ft. in all directions. It is not recommended to attempt to flip around or through any obstacles, as this may result in unintended damage. Press the Flip button to activate Flip Mode, then move the Right Control Stick in any direction and the craft will perform a flip in the same direction.
  • Page 15: Sky Rider View App

    Sky Rider View App The Sky Rider View app will display the image from the craft’s camera on your smartphone’s screen, allowing you to capture images and video of your flights. Connect your smartphone to the craft’s WiFi signal and start flying!
  • Page 16: Smartphone Holder

    Sky Rider View App Smartphone Holder RESET HEADLESS TRIM RESET HEADLESS TRIM RESET HEADLESS TRIM RESET HEADLESS TRIM...
  • Page 17: Virtual Reality Mode

    Virtual Reality Mode VR Mode splits the phone’s screen for use in a VR headset (not included). Use VR Mode to give a friend a fully immersive, point-of-view flying adventure. Press the 3D Mode (VR) button on the screen to turn this feature ON or OFF.
  • Page 18: Parts & Repair

    Parts & Repair REMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com.
  • Page 19: Troubleshooting

    Troubleshooting Troubleshooting Guide PROBLEM POSSIBLE CAUSES SOLUTION Craft does not No power to remote Check remote batteries, or craft. replace if needed. respond to controls. Poor contact between Check craft battery, be power plugs. sure it is fully charged. Craft is out of range. Be sure the power plugs are firmly connected.
  • Page 20: Customer Support

    Customer Support Contact Information Warranty Website: www.gpx.com See included 30 Day Warranty for warranty information. Warranty and the most up-to- Email Support: prodinfo@dpiinc.com date version of this User’s Guide can also be found at: www.gpx.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com...
