sky rider Raptor Pro DRW528 User Manual

sky rider Raptor Pro DRW528 User Manual

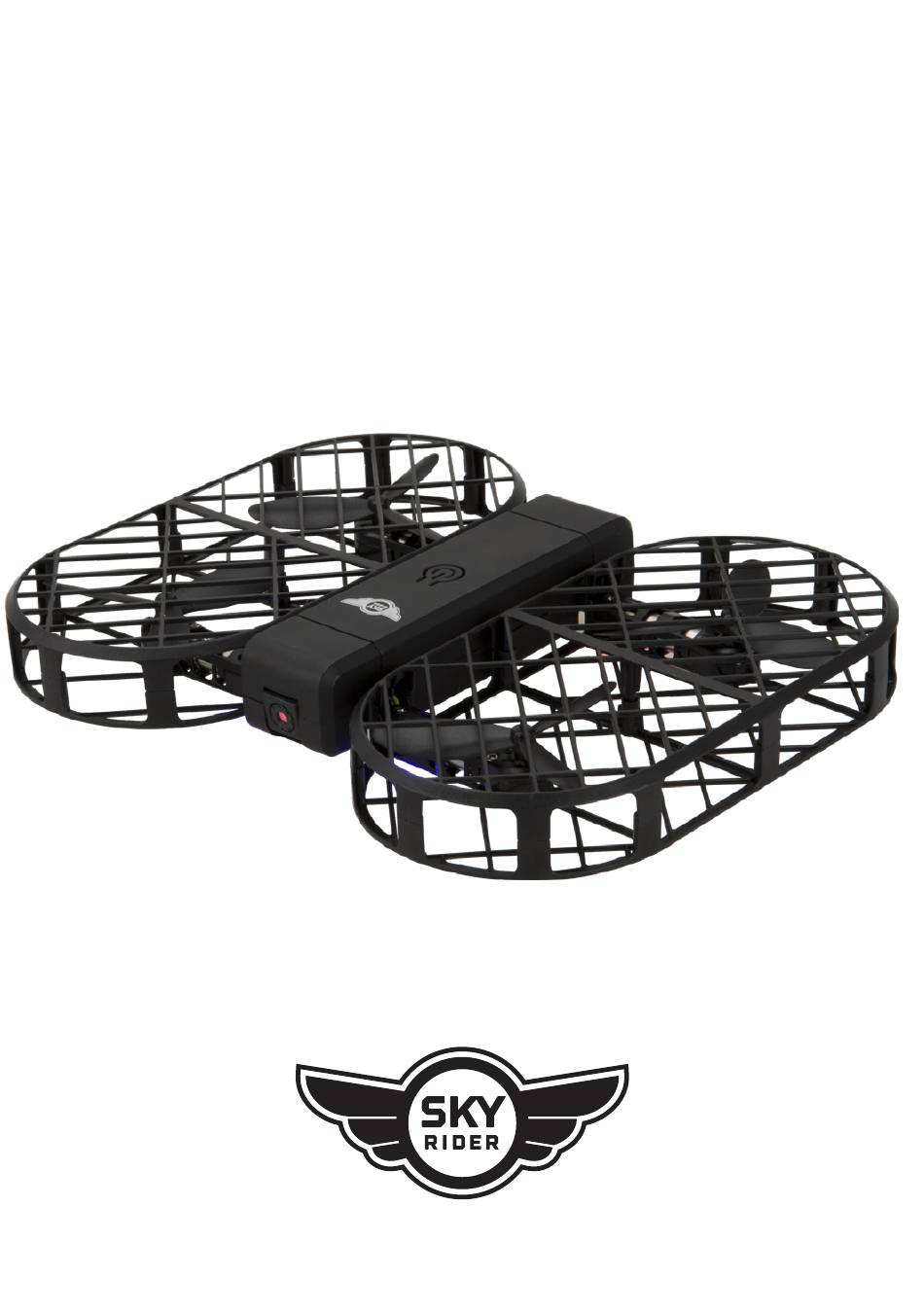

Foldable drone with wi-fi camera

Advertisement

Raptor Pro
Foldable Drone with Wi-Fi Camera
User's Guide for Model DRW528 v2124-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raptor Pro DRW528 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sky rider Raptor Pro DRW528

  • Page 1 Raptor Pro Foldable Drone with Wi-Fi Camera User’s Guide for Model DRW528 v2124-01...
  • Page 2 Warnings & Precautions Important Safety Instructions • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and • Read and follow all instructions. receiver. • Keep these instructions for future reference. • Connect the equipment into an outlet on a circuit •...
  • Page 3: Table Of Contents

    Table of Contents Eagle 3 Pro Wi-Fi Drone Sky Rider View App FAA Information: Flying Your Drone Under Free Download – 16 the Special Rule for Model Aircraft – 4 Connect to Wi-Fi – 16 Features – 4 Smartphone Holder – 17 Includes –...
  • Page 4: Eagle 3 Pro Wi-Fi Drone

    Eagle 3 Pro Wi-Fi Drone FAA Information: Flying Your Drone Under the Special Rule for Model Aircraft To fly under the Special Rule for Model Aircraft you must: • Fly for hobby or recreation ONLY • Register your model aircraft •...
  • Page 5: Diagram & Specifications

    Diagram & Specifications • Folded Dimensions (LWH): 93 x 135 x 38mm / 3.6 x 5.3 x 1.5 in. • Unfolded Dimensions (LWH): 171 x 135 x 22mm / 6.7 x 5.3 x .87 in. • Weight: 77g / 2.72oz / 0.17lb Rotor Power On/Off Foldable Rotor...
  • Page 6: Rotor Guards

    Rotor Guards The rotor guards can be folded for flight or for easy stowage. Rotors Stowed Rotors Deployed...
  • Page 7: Remote Control

    Remote Control Functions Speed Start/Landing Press to adjust Press to start the speed setting. rotors and take Power Switch off automatically. Press again to Auto-Spin land and stop Press to rotors. automatically spin the drone. Press and hold for orbit. Move the Right Stick to cancel.
  • Page 8: Battery Installation

    Remote Control Battery Installation 4x AA batteries...
  • Page 9: Charging The Battery

    Charging the Battery Information & Procedure The craft’s battery must be charged before it can be flown. To avoid risk of injury or damage, be sure the craft and remote control are both powered OFF and remove the battery from the craft when charging. Charging time is approximately 120 minutes. Charge fully before use for best performance.
  • Page 10: Flying

    Flying Remote Link & Calibration Before flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate. Begin with the battery installed, the battery compartment closed, and the craft and remote powered OFF.
  • Page 11: Flight Controls

    Flight Controls Pitch Altitude Roll Roll Pitch Altitude Left Stick controls Altitude Right Stick controls Pitch (forward/ (power) and Yaw (spin). backward) and Roll (left/right). When You’re Finished Flying After landing, keep the Left Control Stick (throttle) in the lowest position and wait for the rotors to stop spinning.
  • Page 12: Trim Adjustment & Countering Drift

    Flying Trim Adjustment & Countering Drift Even after a craft is calibrated, it may still drift while airborne. To counter this effect you can adjust the trim for better control. However, adjusting the trim may not entirely eliminate drifting. Air currents and other factors can still affect the craft’s handling. Making Trim Adjustments Press the Trim button to enter Trimming Mode, indicated by a blinking indicator light on the remote.
  • Page 13: Gyroscope Recalibration

    Gyroscope Recalibration Remote Trim Reset If the craft is having difficulty flying or is If you are still having difficulty flying, it may behaving erratically, it’s gyroscopes may help to reset the trim adjustments on the need to be recalibrated. Do not attempt to remote.
  • Page 14: Tips For Safe Operation

    Flying Tips for Safe Operation • It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. • When flying indoors avoid walls and ceilings, as the craft may be drawn towards them if closer than 2-3 feet.
  • Page 15: Auto-Spin

    Auto-Spin Press the Auto-Spin button to activate Auto-Spin. The drone will begin spinning (yawing) in a clockwise direction. Press the Auto-Spin button again or move the Right Control Stick in any direction to cancel Auto-Spin. Use the Left Control Stick to control the altitude of the craft while in Auto-Spin. Orbit Before activating Orbit Mode, be sure that there is ample clear space around the craft, and no obstacles will obstruct its flight path.
  • Page 16: Sky Rider View App

    Sky Rider View App The Sky Rider View app will display the image from the craft’s camera on your smartphone’s screen, allowing you to capture images and video of your flights. Connect your smartphone to the craft’s Wi-Fi signal and start flying!
  • Page 17: Smartphone Holder

    Smartphone Holder To release, pinch at arrows and pull upwards on the holder, Virtual Reality Mode VR Mode splits the phone’s screen for use in a VR headset (not included). Use VR Mode to give a friend a fully immersive, point-of- view flying adventure.
  • Page 18: Parts & Repair

    Parts & Repair REMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com.
  • Page 19: Troubleshooting

    Troubleshooting Troubleshooting Guide PROBLEM POSSIBLE CAUSES SOLUTION Craft does not • No power to remote • Check remote batteries, or craft. replace if needed. respond to controls. • Poor contact between • Check craft battery, be power plugs. sure it is fully charged. •...
  • Page 20: Customer Support

    Customer Support Contact Information Warranty Website: www.gpx.com See included 30 Day Warranty for warranty information. Warranty and the most up-to- Email Support: prodinfo@dpiinc.com date version of this User’s Guide can also be found at: www.gpx.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com...
