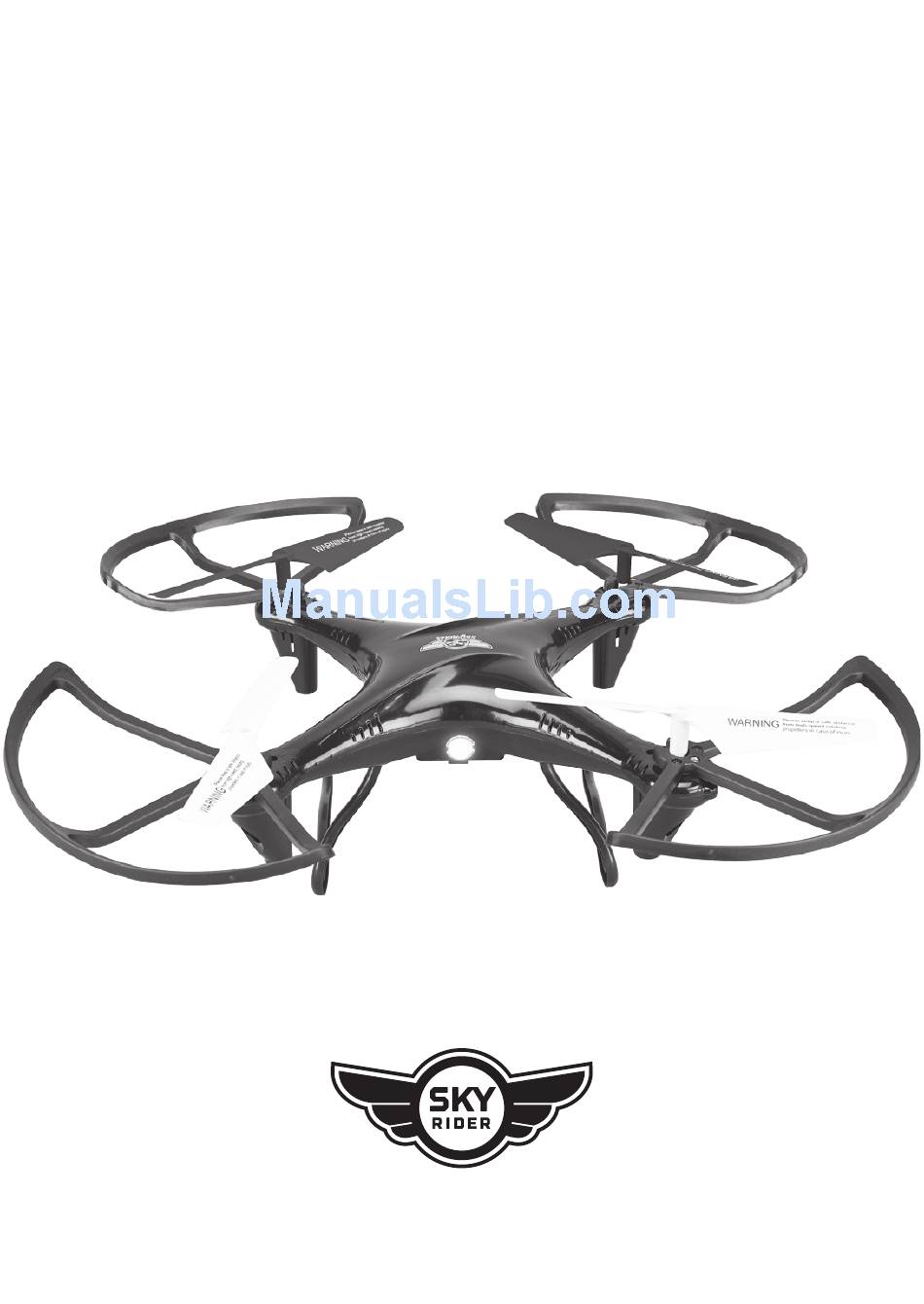

- Page 1 FALCON 2 PRO Quadcopter Drone with Video Camera User’s Guide for Model DRC377 v1871-01...
- Page 3 Warnings & Precautions Important Safety Instructions • Reorient or relocate the receiving antenna. • Read and follow all instructions. • Increase the separation between the equipment and • Keep these instructions for future reference. receiver. • Heed all Warnings. • Connect the equipment into an outlet on a circuit •...
-
Page 4: Table Of Contents
Table of Contents Falcon 2 Pro Quadcopter Drone – 5 Flying Tips & Features – 16 Features Tips for Safe Operation Includes Speed Setting Headless Mode Overview – 6 Flips Craft Layout & Features Camera & Memory Card – 18 Assembly –... -
Page 5: Falcon 2 Pro Quadcopter Drone
Falcon 2 Pro Quadcopter Drone Features Includes • 360° flips & tricks • 2.4 GHz remote control: requires 4 AAA batteries (not included) • 3 speed settings • Built-in rechargeable lithium polymer • 6-axis gyroscope battery • .3 MP Camera (photo & video) with SD •... -
Page 6: Overview
Overview Craft Layout & Features Rotors White rotors indicate front of craft. Power Switch Rotor Guards LED Lights White LEDs Landing Skids indicate the front of the craft. Battery Compartment/Camera... -
Page 7: Assembly
Assembly Landing Struts x4 Wide-head Screws Insert pegs into the holes on the underside of the body as shown. Insert two wide head screws per strut and tighten with the included screwdriver. Do not over tighten or damage may occur. Rotor Guards x4 Standard Screws Insert rotor guards into the... -
Page 8: Remote Control
Remote Control Functions Headless Mode/ Reset Power Indicator Press to turn Headless Mode ON or OFF. Flip Press to reset trim Press once, settings to default. then move Right Control Stick in Photo/Video any direction to perform a flip. Press to take a picture. -
Page 9: Battery Installation
Battery Installation Insert 4 x AAA Batteries (not included). -
Page 10: Charging The Battery
Charging the Battery Before charging, be sure the craft and remote control are powered OFF. Failure to do so may result in injury. REMINDER: Do not charge batteries overnight. Do not leave the batteries unattended while charging. Step 1 Make sure the craft is powered OFF, then remove the battery cover. - Page 11 Step 4 Plug the USB charging cable in to the USB port of a powered ON computer or USB power adapter (not included). While charging, the cable will display a red light. When charging is complete, the light will turn OFF. Step 5 When charging is complete, reinstall the battery in its compartment, reconnect the...
-
Page 12: Flying
Flying Craft/Remote Link Before flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate. Begin with the battery installed and the craft and remote powered OFF. Step 1 Place the craft on a flat, level surface. This is necessary for the craft’s gyroscopes to properly align. -
Page 13: When You're Done Flying
Step 4 Push the Left Control Stick (throttle) fully forward, wait for a chime to sound, then pull the stick fully rearward, and wait for a second chime. When this last chime has sounded the craft is ready to fly. Step 5 Use the Left Control Stick to take off and control the throttle and Yaw (spin) -
Page 14: Trim Adjustment
Trim Adjustment Setting Trim & Countering Drift Even after the craft is calibrated, it may show a tendency to drift while airborne. Adjusting the trim will help counter this effect and allow for better control the craft. • To avoid potential damage, adjust the trim while attempting a stable hover. •... -
Page 15: Gyroscope Recalibration
Craft pitches/angles Adjust Pitch Trim. forward or backward. Gyroscope Recalibration If the craft is experiencing difficulty flying or is behaving erratically, it’s gyroscopes may need to be recalibrated. Do not attempt to do this while flying, safely land the craft first and place it on a flat surface. -
Page 16: Flying Tips & Features
Flying Tips & Features Tips for Safe Operation • It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. • When flying indoors, avoid walls and ceilings, as the craft will be drawn towards them if closer than 2-3 feet. -
Page 17: Flips
Flips Before attempting a flip, be sure that there is ample clear space around the craft, ideally 9-10 ft. in all directions. It is not recommended to attempt to flip around or through any obstacles, as this may result in unintended damage. Press the Flip button to activate Flip Mode, then move the Right Control Stick in any direction and the craft will perform a flip in the same direction. -
Page 18: Camera & Memory Card
Camera & Memory Card Make sure the remote and the craft have been successfully paired and the Micro SD card is installed in the camera before attempting to use. Note: The indicator light on the remote will not change for photo/video operations. The forward white LED lights serve as status indicators for these functions. -
Page 19: Sd Card Install & Removal
SD Card Install & Removal Camera Angle Adjustment Gently push against the Micro SD card until it clicks into or out of the card slot. Be sure to insert correctly or damage may occur. View Photos/Video on a Computer Remove Micro SD card from camera and connect to included USB adapter. -
Page 20: Parts & Repair
Parts & Repair REMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, SD cards etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com. -
Page 21: Troubleshooting
Troubleshooting If you are experiencing problems using or flying the craft, consult this table. PROBLEM POSSIBLE CAUSES SOLUTION Craft does not • No power to remote • Check remote batteries, or craft. replace if needed. respond to controls. • Poor contact between •... -
Page 22: Customer Support
Customer Support Contact Information Warranty Website: www.gpx.com See included 30 Day Warranty for warranty information. Warranty and the most up-to- Email Support: prodinfo@dpiinc.com date version of this User’s Guide can also be found at: www.gpx.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com...
