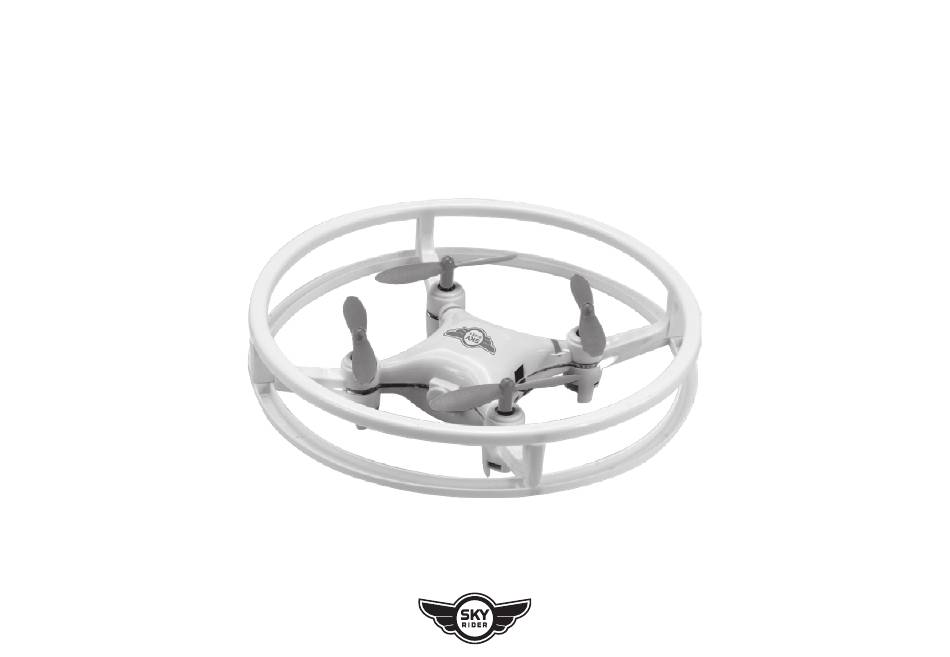

  • Page 1 MINI GLOW Quadcopter Drone User’s Guide for Model DR157 v2137-01...
  • Page 3 Warnings & Precautions Important Safety Instructions • Flying over bodies of water is not recommended. • Flying at night is not recommended. • Read and follow all instructions. • Never try to retrieve the craft from areas you cannot • Keep these instructions for future reference. safely reach, such as rooftops or trees.
  • Page 4 turning the equipment off and on, the user is encouraged • Lithium batteries, like all rechargeable batteries, are to try to correct the interference by one or more of the recyclable and should be recycled or disposed of following measures: according to state and local guidelines.
  • Page 5: Table Of Contents

    Table of Contents Mini Glow Quadcopter Drone Tips for Safe Operation–20 Speed Setting–21 Features–6 Headless Mode–22 Includes–6 Flips–23 Overview Parts & Repair Features & Layout–7 Rotor Replacement–24 Remote Control Parts & Repair Functions –9 Parts Replacement –26 Battery Installation–10 Troubleshooting Charging the Battery Troublshooting Guide–27 Battery Charging Procedure –12...
  • Page 6: Mini Glow Quadcopter Drone

    Mini Glow Quadcopter Drone Features Includes • 360° flips & tricks • 2.4 GHz remote control: requires 4 AAA batteries (not included) • 6-axis gyroscope • USB cable for battery recharge • 3 speed settings • Screwdriver • Control distance: up to 164 ft. •...
  • Page 7: Overview

    Overview Features & Layout Power Switch/ Charging Port Rotors LED Lights Blue LEDs indicate the front of the craft. Protective Guard...
  • Page 8: Remote Control

    Remote Control...
  • Page 9: Functions -9

    Functions 1. Power Indicator Light 2. Left Stick Increase/Decrease Power: move forward/backward Yaw (Spin): move left/right Press to change speed setting (low/med/high) Press and hold for Headless Mode 3. Pitch Trim Adjustment 4. Power Switch 5. Right Stick Pitch: move forward/backward Roll: move left/right Press and move stick in any direction to flip.
  • Page 10: Battery Installation-10

    Remote Control Battery Installation...
  • Page 11 Insert 2 x AAA batteries (not included).
  • Page 12: Charging The Battery

    Charging the Battery Battery Charging Procedure The craft’s battery must be charged before it can be flown. Before charging, be sure the craft and remote control are powered OFF to avoid risk of injury or damage. Connect the charging cable (included) to the USB port of a powered ON computer or USB power adapter (not included), then connect the charging plug to the unit.
  • Page 13 REMINDER: Do not charge overnight. Do not leave unattended while charging.
  • Page 14: Flying

    Flying Remote Link & Gyro Calibration Before flying, the craft and the remote must be linked together and the gyroscopes on the craft must be allowed to calibrate. Begin with the craft and remote powered OFF. Step 1 Power ON the craft and place it on a flat surface. This is necessary for the craft’s gyroscopes to properly align.
  • Page 15 Step 3 Push the Left Control Stick (throttle) fully forward and backward, and wait for a second chime. When this last chime has sounded the craft is ready to fly. Pitch Altitude Roll Roll Altitude Pitch Right Stick controls Pitch (forward/ Left Stick controls Altitude (power) and Yaw (spin).
  • Page 16: Setting Trim & Countering Drift-16

    Flying Setting Trim & Countering Drift Even after the craft is calibrated, it may show a tendency to drift while airborne. Adjusting the trim will help counter this effect and allow for better control the craft. • To avoid potential damage, adjust the trim while attempting a stable hover. •...
  • Page 17 Adjust Roll Trim. Craft drifts right or left.
  • Page 18 Flying Adjust Pitch Trim. Craft drifts forward or backward.
  • Page 19: Gyroscope Recalibration & Trim Reset-19

    Gyroscope Recalibration & Trim Reset If the craft is experiencing difficulty flying or is behaving erratically, the gyroscopes may need to be recalibrated. It may also help to reset the trim settings for the remote. Do not attempt to do this while flying, safely land the craft first and place it on a flat surface. The craft and the remote should already be linked together.
  • Page 20: Tips For Safe Operation-20

    Flying Tips for Safe Operation • It is recommended to only fly in large, open spaces that are free of obstacles like power lines, trees, ceiling fans, etc. • When flying indoors avoid walls and ceilings, as the craft may be drawn towards them if closer than 2-3 feet.
  • Page 21: Speed Setting-21

    Speed Setting Press the Left Control Stick on the remote to change the craft’s speed setting. • Low: Provides smooth and predictable control of the craft. The remote will chime once to indicate the low speed setting. • Medium: The craft will move and respond faster to all control inputs. The remote will chime twice to indicate the medium speed setting.
  • Page 22: Headless Mode-22

    Flying Headless Mode Before using Headless Mode be sure you and the craft are facing the same “forward” direction, otherwise the craft will not fly correctly. To activate Headless Mode, press and hold the Left Control Stick on the remote control. The LED lights will quickly flash while Headless Mode is ON.
  • Page 23 Flips Before attempting a flip, be sure that there is ample clear space around the craft, ideally 9-10 ft.. in all directions. It is not recommended to attempt to flip around or through any obstacles, as this may result in unintended damage. Press the Right Control Stick, then move it in any direction and the craft will perform a flip in the same direction.
  • Page 24: Parts & Repair

    Parts & Repair Rotor Replacement Rotor Rotor The craft comes with replacement rotors if the originals are broken or badly damaged. To replace a rotor, gently pull it upwards and off of the motor shaft, then place the new rotor on the shaft and gently push down.
  • Page 25 Removal Replacement...
  • Page 26: Parts & Repair

    Parts & Repair REMINDER: Pilots are responsible for any damage caused by improper use. Parts Replacement Standard parts such as extra batteries and remotes are available online for purchase when in stock. However, any non-standard parts such as cameras, screws, bodies, SD cards etc. can be ordered by placing an inquiry with our parts department at: partsinfo@dpiinc.com.
  • Page 27: Troubleshooting

    Troubleshooting Troublshooting Guide PROBLEM POSSIBLE CAUSES SOLUTION Craft does not • No power to remote • Check remote batteries, or craft. replace if needed. respond to controls. • Poor contact between • Check craft battery, be power plugs. sure it is fully charged. •...
  • Page 28 Troubleshooting PROBLEM POSSIBLE CAUSES SOLUTION Craft is difficult • Gyroscopes may • Recalibrate gyroscopes be misaligned. (see pg. 19). to control or flies erratically. • Power OFF remote and craft and reconnect (see pg. 14). Craft drifts • Trim not set or needs •...
  • Page 29 PROBLEM POSSIBLE CAUSES SOLUTION LED lights ON but • Low battery power. • Recharge the battery. craft does not respond to controls.
  • Page 30: Customer Support

    Customer Support Contact Information Warranty Website: www.gpx.com See included 30 Day Warranty for warranty information. Warranty and the most up-to- Email Support: prodinfo@dpiinc.com date version of this User’s Guide can also be found at: www.gpx.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com...
  • Page 31 Made Green Protect for Today Sustain for Tomorrow Copyright © 2017 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
