P/N 126659-01 Rev. H 02/2019
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 126659-02.
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
An IHP hood must be installed when using a vent-free log heater (see Accessories, page 20).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
PFS
C
REPORT NO. 10-078
SAVE THIS BOOK
NOTE: DIAGRAMS AND ILLUSTRATIONS THROUGHOUT THE MANUAL ARE NOT TO SCALE.
INSTALLATION AND OPERATION
INSTRUCTIONS

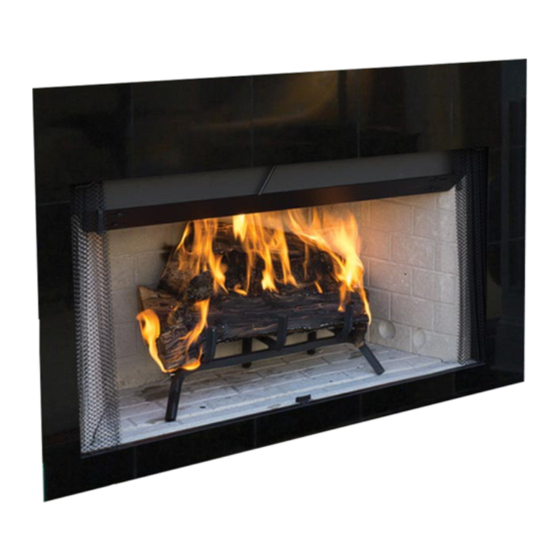

Astria
Craftsman Series Wood burning
®
Fireplaces
®
US
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
POUR LE CANADA: L'autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l'installation afin de déterminer la
nécessité d'obtenir un permis.
MODELS
Craftsman 36P2
Craftsman 36P3
P126659 01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Astria Fireplaces Craftsman 36P2
Summary of Contents for Astria Fireplaces Craftsman 36P2
- Page 1 ® Ce manuel est disponible en francais, simplement en faire la demande. Numéro de la pièce 126659-02. REPORT NO. 10-078 Craftsman 36P2 Craftsman 36P3 P126659 01 SAVE THIS BOOK This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or accessory items when needed.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Thank you for your purchase. We appreciate your Safety .....................2 Specifications .................4 business! Fireplace Installation ..............5 Please carefully read and follow all instructions in this manual. Pay Venting Installation ................7 special attention to all warnings and safety information. Optional Gas Line Installation ............13 Following these safety, care, and operation instructions will help Operation and Maintenance ............14... - Page 3 SAFETY Continued WARNING: CONTINUED OVERFIRING CAN PER- WARNING: BURNING IMPROPER FUEL (I.E. MANENTLY DAMAGE YOUR FIREPLACE SYSTEM. CHARCOAL) CAN RESULT IN CARBON MONOXIDE SOME EXAMPLES OF CONDITIONS THAT COULD POISONING, WHICH MAY LEAD TO DEATH! CAUSE OVERFIRING ARE: Carbon Monoxide Poisoning – Early signs of carbon monoxide poisoning resemble the flu with headaches, •...
-
Page 4: Specifications
SPECIFICATIONS GAS LINE RIGHT SIDE KNOCK OUTS ELECTRICAL 1" (26 mm) AIRSPACE OUTLET TO COMBUSTIBLE " MATERIAL (89 mm) 0" (0 mm) NO COMBUSTIBLE TO TOP " (232 mm) MATERIAL ON FACE SPACERS " (181 mm) AIR KIT " (223 mm) KNOCK OUT "... -
Page 5: Fireplace Installation
FIREPLACE INSTALLATION SELECTING LOCATION To determine safest and most efficient location for fireplace, you must take into consideration the following guidelines: 1. Location must allow for proper clearances (see Figures 1 and 2). 2. Consider a location where fireplace will not be affected by drafts, air conditioning ducts, windows or doors. - Page 6 FIREPLACE INSTALLATION Continued *Note: Drawing Not To Scale Combustible WARNING: Hearth extension is to be installed Material " (312 mm) Ref. only as shown in Figure 3. Safe Zone For Projection of 6" (153 mm) Combustible Ref. 33° Materials Seal Gap Non Combustible Fireplace Front Materials Below...
-
Page 7: Venting Installation
FIREPLACE INSTALLATION Continued VENTING INSTALLATION FAN/BLOWER KIT ASSEMBLY OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F) Fan or blower kit is optional with this fireplace (for circulating mod- Installation of outside air kit should be performed during rough fram- els only). Use of blowers or fans other than those manufactured ing of fireplace due to the nature of it's location. - Page 8 VENTING INSTALLATION Continued ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY WARNING: The opening in collar around chimney SYSTEM at top of fireplace must not be obstructed. Never use Each double wall chimney section consists of a galvanized outer blown insulation to fill chimney enclosure pipe, a stainless steel inner flue pipe and a wire spacer.
- Page 9 VENTING INSTALLATION Continued Return Return Elbow Elbow Return Elbow Offset Offset Elbow Elbow 6' Max.(1.83 m) 6' Max.(1.83 m) Ceiling Support Return 6' Max. (1.83 m) Pipe 12S-8DM Elbow 6' Max.(1.83 m) Return Offset Offset Offset Elbow Elbow Elbow 6' Max.(1.83 m) 6' Max.(1.83 m) Elbow Figure 9 - Typical Offset Installation...
- Page 10 VENTING INSTALLATION Continued If area above is a living space, install OFFSET RISE CHIMNEY LENGTH firestop below framed hole. 48" 36" 24" 18" 12" " " ELBOW SET ONLY 9" " " 31" 15" " " " 20" " " "...
- Page 11 VENTING INSTALLATION Continued Storm Collar Installation (SC1) Minimum Measurements Place storm collar over pipe and slide down until it is snug against " open edge of flashing (see Figure 16). Use SC1 for all round termina- (48.3 cm) tions. Apply waterproof caulk around perimeter of collar to provide 30"...
- Page 12 VENTING INSTALLATION Continued CHASE INSTALLATIONS (3.05 m) Level of Instructions for chase installations are included with chase style ter- Flue Gas Outlet mination chosen. In a multiple chase installation, be sure to provide adequate distance between terminations to prevent smoke spillage from one termination to another.
-
Page 13: Optional Gas Line Installation
OPTIONAL GAS LINE INSTALLATION A gas line or gas log lighter may be installed for the purpose of If you install a decorative gas appliance (vented gas log), decorative installing a vented or vent-free decorative gas appliance incorporat- gas appliance must comply with the Standard for Decorative Gas ing an automatic shutoff device and complying with the Standard Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI for Decorative Gas Appliances for Installation in Vented Fireplaces,... -
Page 14: Operation And Maintenance
OPERATION AND MAINTENANCE GLASS DOORS Cleaning Glass Glass doors are optional with this fireplace. When fireplace is in Clean glass with any commercial glass cleaner or soap and water. operation, doors must be fully opened or fully closed position only Do not use any abrasive material to clean the glass. -
Page 15: Replacement Parts
IMPORTANT NOTICES - CANADA OPERATION AND MAINTENANCE Continued LOCATING ACCESS COVER PLATE IMPORTANT NOTICE Sheet metal cover plates located underneath front hearth refractory may A manufactured shroud which has been approved by a have shifted or moved out of place while fireplace was in transit. These cover plates must be kept in the proper location prior to using the fireplace national testing agency for use with this fireplace may (See Figure 25). -
Page 16: Parts
PARTS WOOD BURNING FIREPLACE MODELS: MODEL CATALOG NO. Craftsman 36P2 F0705 Craftsman 36P2 F0706 Craftsman 36P3 F0707 Craftsman 36P2 F0708 Craftsman 36P2 F0709 Craftsman 36P3 F0710 32/33 Astria.us.com 126659-01_H... - Page 17 This list contains replaceable parts used in your fireplace. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards. Craftsman 36P2 (F0705) Craftsman 36P3...
-
Page 18: Accessories
PARTS Continued This list contains replaceable parts used in your fireplace. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards. Craftsman 36P2 Craftsman... - Page 19 ACCESSORIES Continued BI-FOLD GLASS DOORS CAT NO. MODEL DESCRIPTION F0981 BD36 36" Standard Bi-Fold Glass Door - Black finish F0982 BD36B 36" Standard Bi-Fold Glass Door - Brushed Brass finish F0983 BD36P 36" Standard Bi-Fold Glass Door - Platinum finish DOUBLE WALL PIPE F0895 12-8DM...
- Page 20 ACCESSORIES Continued ANTI-DRAFT SHIELD (Round Top Termination Only) F0927 ADS-8DM Anti-Draft Shield for Round Top Only MESH ROUND TOP TERMINATIONS F0916 RT-8DM Round Top with Mesh Screen F0888 RT-8HT Hi-Temp Round Top with Mesh Screen MESH ROUND TOP TERMINATIONS WITH SLIP SECTION F0917 RTT-8DM Round Top with Slip Section &...
-
Page 21: Draft Smoke Guidelines
APPENDIX A Draft Requirements take into account all variables within the installation and install the appliance in such a manner that satisfies the draft requirements of Your wood-burning appliance is dependent upon a properly func- the appliance. See Chimney Guidelines to assist you in selecting the tioning chimney for optimum performance. - Page 22 APPENDIX A Continued Smoking – Causes And Troubleshooting Location Recommended To reduce the likelihood of smoking when opening the door, open Marginal Location the combustion air control or damper before opening the door. Wind Direction Your appliance has been designed and tested to provide smoke free Tree operation.
-
Page 23: Warranty
Innovative Hearth Products Astria Brand Wood-Burning Fireplace ® 20 Year Limited Warranty THE WARRANTY Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your Astria ® brand wood burning fireplace ("Product") to be free from defects in materials and work- manship at the time of manufacture. - Page 24 Astria.us.com Record the following important information about your fireplace: Fireplace model number Fireplace serial number Date fireplace was Installed Dealer name P126659 01 Innovative Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
