Pro-Form PFTL60916.0 User Manual page 14

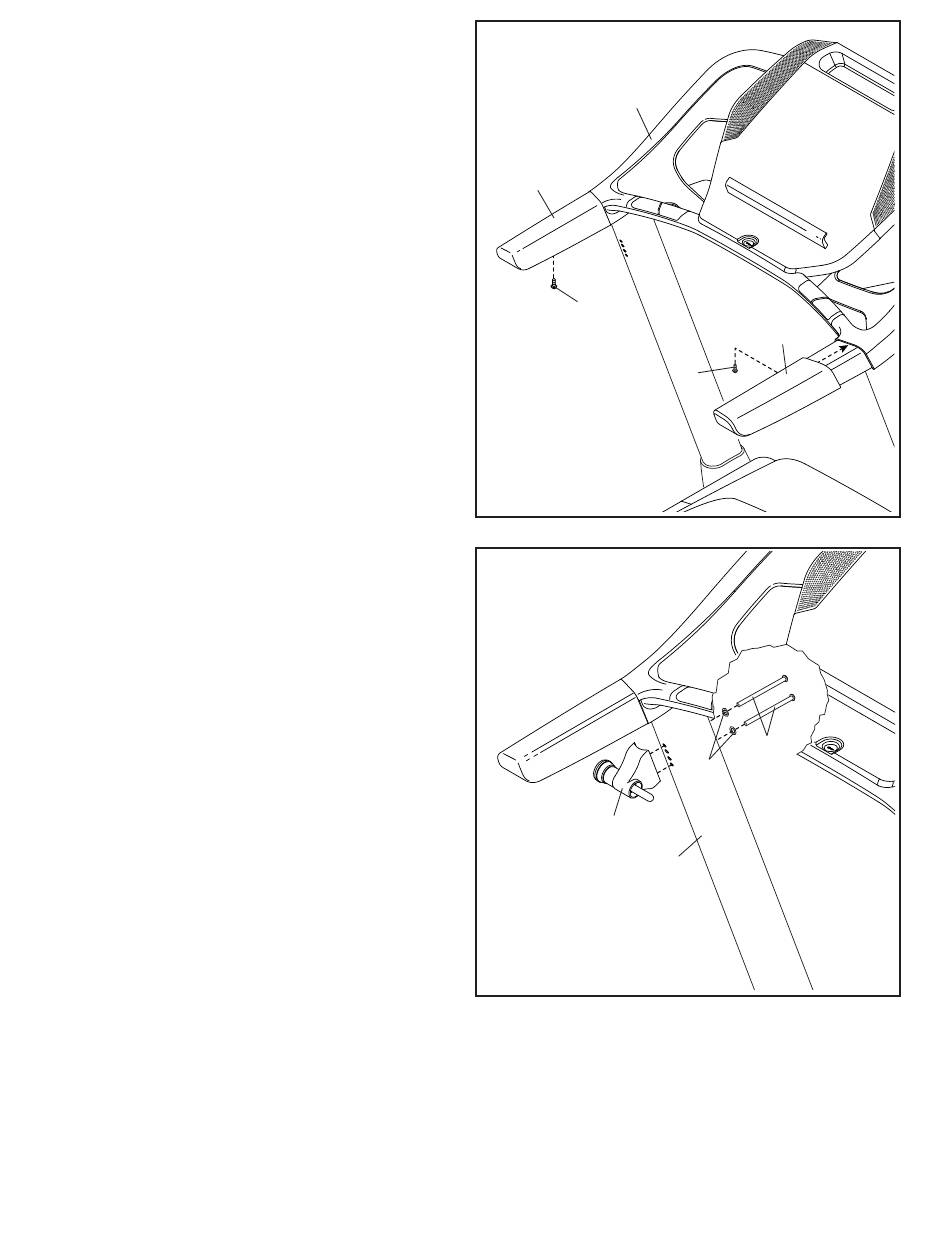

12. Identify the Left and Right Handrail Covers (87, 8).
Slide the Left Handrail Cover (87) up against the
console assembly (F) and tighten a #8 x 3/4"
Screw (4) into the bottom of the Left Handrail
Cover. Be careful not to overtighten the
Screw.
Attach the Right Handrail Cover (8) in the
same way.
13. Orient the Latch Pin Assembly (98) as shown.
Attach the Latch Pin Assembly to the Left Upright
(89) with two 1/4" x 4 1/2" Screws (6) and two
1/4" Star Washers (26) ; start both Screws, and
then tighten them.
12
F
87
4
13
98
14
8
4
6
26
89
