Operating Instructions • Warning Information • Parts Breakdown
some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
your risk from these exposures varies, depending on how often you do this
type of work. to reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
Working Torque: . . . . . . . . . . . . . .90-280 ft.lbs.
Maximum Torque: . . . . . . . . . . . . . . . 300 ft.lbs.
Free Speed: . . . . . . . . . . . . . . . . . . . 12,500 rpm
Rec. Air Pressure:. . . . . . . . . . . . . . . . . . . .90 psi
Air Inlet:. . . . . . . . . . . . . . . . . . . . . . . . 1/4" npt
Rec Hose Size: . . . . . . . . . . . . . . . . . . . . . . . 3/8"
Overall Length. . . . . . . . . . . . . . . . . . . . . . . 5.7"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .3.3 lbs.
Sound Level . . . . . . . . . . . . . . . . . . . . . . 97 dBA
CAT351HD
SPECIFICATIONS

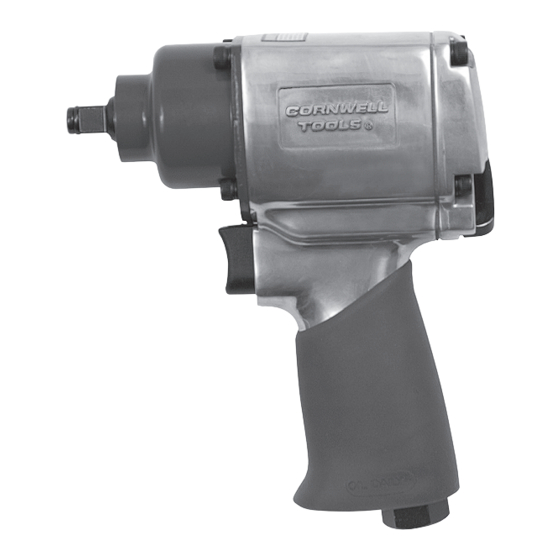

3/8" High Powered
Impact Wrench
1
AlwAys reAd
instructions
before using
power tools
AlwAys weAr
sAfety goggles
weAr heAring
protection
Avoid
prolonged
exposure to
vibrAtion
CAT351HD
Heavy Duty
Rev. 07/24/07

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAT351HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Cornwell Tools CAT351HD

  • Page 1 SPECIFICATIONS Working Torque: ....90-280 ft.lbs. CAT351HD Maximum Torque: ....300 ft.lbs. Free Speed: ....12,500 rpm Rec. Air Pressure:.
  • Page 2 • air­ p­ower­ed tool­s can­ vibr­ate in­ use. Vibr­ation­, r­ep­etitive motion­s or­ un­comfor­tabl­e p­osition­s over­ ex­ten­ded p­er­iods of time may be har­mful­ to your­ han­ds an­d ar­ms. discon­tin­ue use of tool­ if discomfor­t, tin­g­l­in­g­ feel­in­g­ or­ p­ain­ occur­s. seek medical­ advice befor­e r­esumin­g­ use. CAT351HD Rev. 07/24/07...
  • Page 3 Ball RS351HD27 Hammer Pin RS351HD10 Housing Cap RS351HD28 Anvil RS351HD11 Retainer RS351HD29 Retainer O-Ring RS351HD12 O-Ring RS351HD30 Socket Retainer RS351HD13 Gasket RS351HD31 Anvil Bushing RS351HD14 Motor Housing RS351HD32 O-Ring RS351HD15 Trigger RS351HD33 Hammer Housing RS351HD16 Plug Screw Spring Washer RS351HD17 Ball Bearing RS351HD35 Screw (including #34) RS351HD18 Rear Plate RS351HD36 Grip (not shown) CAT351HD Rev. 07/24/07...
  • Page 4 NOTE: Actual torque on a fastener is directly related to the tool. joint hardness, tool speed, condition of socket and the time the tool is allowed to impact. Use the simplest possible tool-to-socket hook up. Every connection absorbs energy and reduces power. WARRANTY Cornwell warrants its air tools for a period of 1 year to the consumer. We will repair any air tool covered under this warranty which proves to be defective in material or workmanship during the warranty period. In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description of the problem. The tool will be inspected and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge and the repaired tool will be returned to you freight prepaid. This warranty gives you specific rights. You may also have other rights which vary from state to state. The foregoing obligation is Cornwell’s sole liability under this or any implied warranty and under no circumstances shall Cornwell be liable for any incidental or consequential damages. Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you CAT351HD Rev. 07/24/07...
