Cornwell Tools CAT-375 Operating Instructions

• Operating Instructions • Warning Information
Bolt Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1/8"
Max. Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,500 RPM
Working Torque . . . . . . . . . . . . . . . . . . . . . . . . 300-1,000 ft. lbs.
Maximum Torque . . . . . . . . . . . . . . . . . . . . . . . . . . 1,500 ft. lbs.
Air Inlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . 3/8"
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . 90 PSI
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.25"
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.88 lbs.
Avg. Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . 89 dBA
Sound Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
CAT-375
• Parts Breakdown
S P E C I F I C A T I O N S
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
CAT-375
1

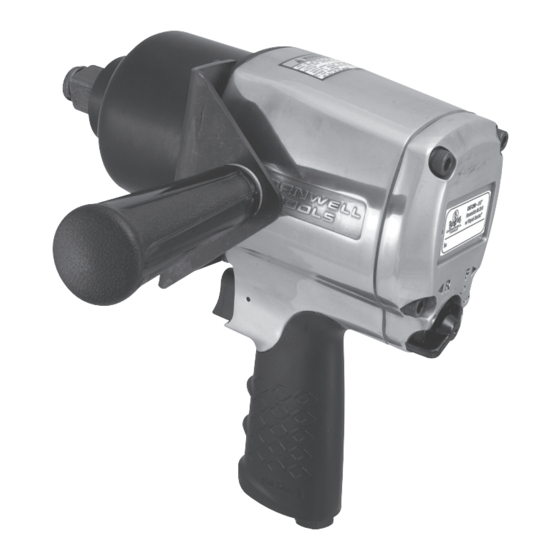

CAT-375
3/4" HD
Impact Wrench
Rev. 05/18/04
