Grade 1 escutcheon mortise lock

Advertisement

Quick Links

19
20

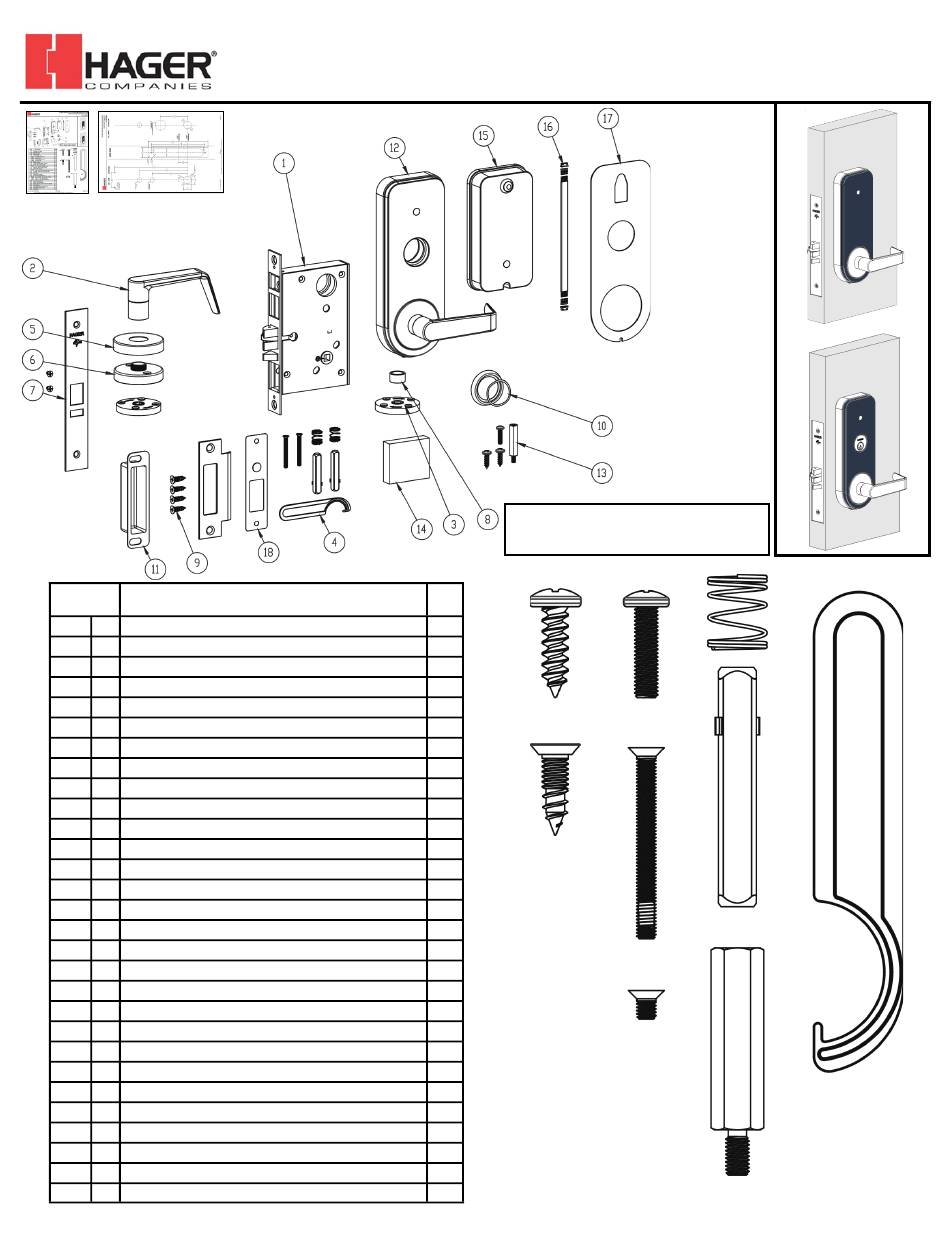

Part
Description
1
Mortise Lock Body
2
Interior Lever
3
Spring Cage
4
Screw Pack, Lock
AA
M4 X 40 mm Screws
BB
Square Drive
CC
Spring, Square Drive
DD
Spanner Tool
5
Rose, Interior
6
Lever Mounting Plate, Interior
7
Armor Front with screws
EE
M4 X 6 mm Flat Head Screw
8
Bearing, External Escutcheon
9
Strike with Screws
FF
#12-24 x ¾" Flat Head Combo Screws
10
Cylinder Collar (Key Override Only)
11
Dust Box
12
Exterior Escutcheon
13
Screw Pack, Power Pack
GG
Hex Standoff, #10-32 Female/Male
HH
#12 x ¾" Pan Head Screw
II
#10-32 x ¾" Pan Head Screw
14
AA Alkaline Batteries
15
Power Pack Assembly
16
Wiring Harness, Control Board to Reader
17
Main Gasket
18
DPS Magnetic Plate (DPS Only)
19
Installation Instructions
20
Template
Rev 1, Rev Date: 01/22/2023
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com
EQ38E GRADE 1 ESCUTCHEON MORTISE LOCK
NOTE: Key Override Requires 1-5/8"
or longer mortise cylinders
QTY
HH
II
1
1
2
1
2
2
2
AA
FF
1
1
1
1
2
1
1
4
1
1
1
1
EE
1
DD
2
1
4
1
1
1
1
1
1
[27390108]
INSTALLATION INSTRUCTIONS
CC
BB
GG
I-LS02690
DD
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQ38E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hager EQ38E

  • Page 1 Power Pack Assembly Wiring Harness, Control Board to Reader Main Gasket DPS Magnetic Plate (DPS Only) Installation Instructions Template Rev 1, Rev Date: 01/22/2023 [27390108] Page 1 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 2 .093” Strike + DPS Drill x3 • .078” Strike Only ℄ Strike ℄ Strike ℄ Lock Chissel out Rev 1, Rev Date: 01/22/2023 [27390108] Page 2 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 3 Thread the string through the hole. • Gently pull the wire through with the string. Avoid applying force to the plug head. Rev 1, Rev Date: 01/22/2023 [27390108] Page 3 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 4 Orient spring cage #3 with arrows in the direction of lever rota- tion (down) and insert onto mounting posts as shown. Rev 1, Rev Date: 01/22/2023 [27390108] Page 4 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 5 Tighten mortise screw inside of lock body using PH2 Phillips screw driver to lock cylinder in place. Note: Cylinders must have the Schlage L cam installed. Shape shown below. Rev 1, Rev Date: 01/22/2023 [27390108] Page 5 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 6 Plug in the Reader (6 pin), 9V power (2 pin), and Mortise Lock (8 pin) wire harnesses as shown below. Make sure plugs snap into headers. • Stow any excess wires into wiring holes. Rev 1, Rev Date: 01/22/2023 [27390108] Page 6 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 7 QR CODE QR CODE EXTENDER READER OTHER PICTURE PICTURE PICTURE INFO INFO INFO QR CODE QR CODE QR CODE Rev 1, Rev Date: 01/22/2023 [27390108] Page 7 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 8 Pour se conformer aux exigences d'exposition RF, une distance de séparation minimale de 20 cm doit être maintenue entre le corps de l'utilisateur et l'appareil. Rev 1, Rev Date: 01/22/2023 [27390108] Page 8 of 7 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
