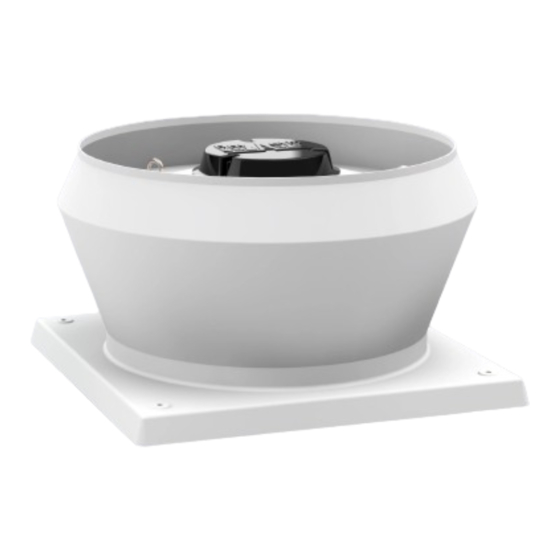

- Page 1 OPERATION MANUAL CDVA 400 - 710 Roof fan in plastic Agent : Not for use in Ex zones Page 1 COLASIT AG TD-000 812-E Plastics construction Edition 02/2023, Subject to alteration CH-3700 Spiez Copyright by COLASIT AG Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61...
- Page 2 Preface This operating manual is the driver's license for operation of this COLASIT fan. It is the main source of information and also the safety guideline. It deserves your full attention - please read it carefully. The contents of this operating manual are subject to change without notice in order to take technical progress into account.
-
Page 3: Table Of Contents
Possible emergencies............................ 5 Safety officer (SO) ............................5 General risk matrix ............................6 EU and UK conformity of the COLASIT fan ....................7 1.10 Restrictions when commissioning ......................... 7 1.11 General operation conditions ......................... 7 Shipping, unpacking, inspection, storage ...................... 7 Installation, configuration .......................... -
Page 4: Part 1: General
Definition The term "COLASIT fan" stands for a Swiss high-quality product and contains all the components and individual parts as specified in the purchase order or in the material parts list, which, when assembled, form a functional unit. -
Page 5: Safety Review
COLASIT only guarantees the durability of materials on condition that technological data was available before production. Any change in the conditions of use is only permissible after approval by COLASIT; otherwise this will entail loss of warranty. Any changes or repair work during the warranty period may only be made by our fitters or with our written consent. -
Page 6: General Risk Matrix
Page 6 COLASIT AG TD-000 812-E Plastics construction Edition 02/2023, Subject to alteration CH-3700 Spiez Copyright by COLASIT AG Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61... -
Page 7: Eu And Uk Conformity Of The Colasit Fan
The standard motors are designed for normal operating conditions (ambient temperature +40°C, altitude below 1000 m above sea level, air pressure up to 1050 hPa). In case of any divergence from these conditions, please contact COLASIT. Compliance with these operating conditions is the responsibility of the operator. -
Page 8: Installation, Configuration
Connection ducting on the pressure side must be routed to prevent the backflow of foreign bodies, rainwater or condensate into the fan. To ensure this, please use the COLASIT condensate drain nozzles. Due to the possibility of noise nuisance, we recommend that the fan should not be installed in the immediate vicinity of workplaces. -
Page 9: Inspection Of The Installation And Settings
The motor electrical specifications are indicated on the motor’s rating plate or in the motor manufacturer’s data sheet. When speed is controlled by means of a frequency converter, the maximum speed is limited by COLASIT to the value indicated on the manufacturer’s rating plate. -
Page 10: Operation
If the intake and delivery ducts of the fan are dismounted for a longer period of time, the openings must be closed off. Page 10 COLASIT AG TD-000 812-E Plastics construction Edition 02/2023, Subject to alteration CH-3700 Spiez Copyright by COLASIT AG Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61... -
Page 11: Performance
Please address your spare parts order to our customer service department. Page 11 COLASIT AG TD-000 812-E Plastics construction Edition 02/2023, Subject to alteration CH-3700 Spiez Copyright by COLASIT AG Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61... -
Page 12: Operating Instructions
You will find important instructions on how to produce process instructions in various chapters of this operating manual. To help ensure the safe operation of the fan, COLASIT offers the service of reviewing process instructions prepared by the operator Logbook For your own safety and as an aid to personal responsibility, we recommend the keeping of a logbook for the entire period during which the fan is in service. -
Page 13: Retrofittable Original Accessories
If not already a part of our scope of supply, these original parts are available ex stock when ordered. - Automatic damper - Roof base in GFK Fan identification The following rating plate is affixed to each COLASIT fan: Manufacturer Field for CE / UKCA marking and applicable standards ATEX-identification, for details see the section on Explosion Protection Fan specifications: fan type, casing design, material of casing and impeller, order number and date of manufacture. -
Page 14: Dimensional Drawings
1154 1154 B Ø D Ø 1070 1070 Page 14 COLASIT AG TD-000 812-E Plastics construction Edition 02/2023, Subject to alteration CH-3700 Spiez Copyright by COLASIT AG Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61... -
Page 15: Part 3: Certifications
COLASIT AG Name and address of the person authorised to compile the relevant technical documentation: Faulenbachweg 63 CH-3700 Spiez Central Fans Colasit Ltd East Moons Moat Unit 12A Palmers Road Redditch - Worcestershire, B98 0RF Authorized person or position: United Kingdom Phone: +44 1527 517200 Spiez, 30.11.2022... -
Page 16: Further Certificates
This operating manual has the following certificates enclosed: • Datasheet of the fan Page 16 COLASIT AG TD-000 812-E Plastics construction Edition 02/2023, Subject to alteration CH-3700 Spiez Copyright by COLASIT AG Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61...
