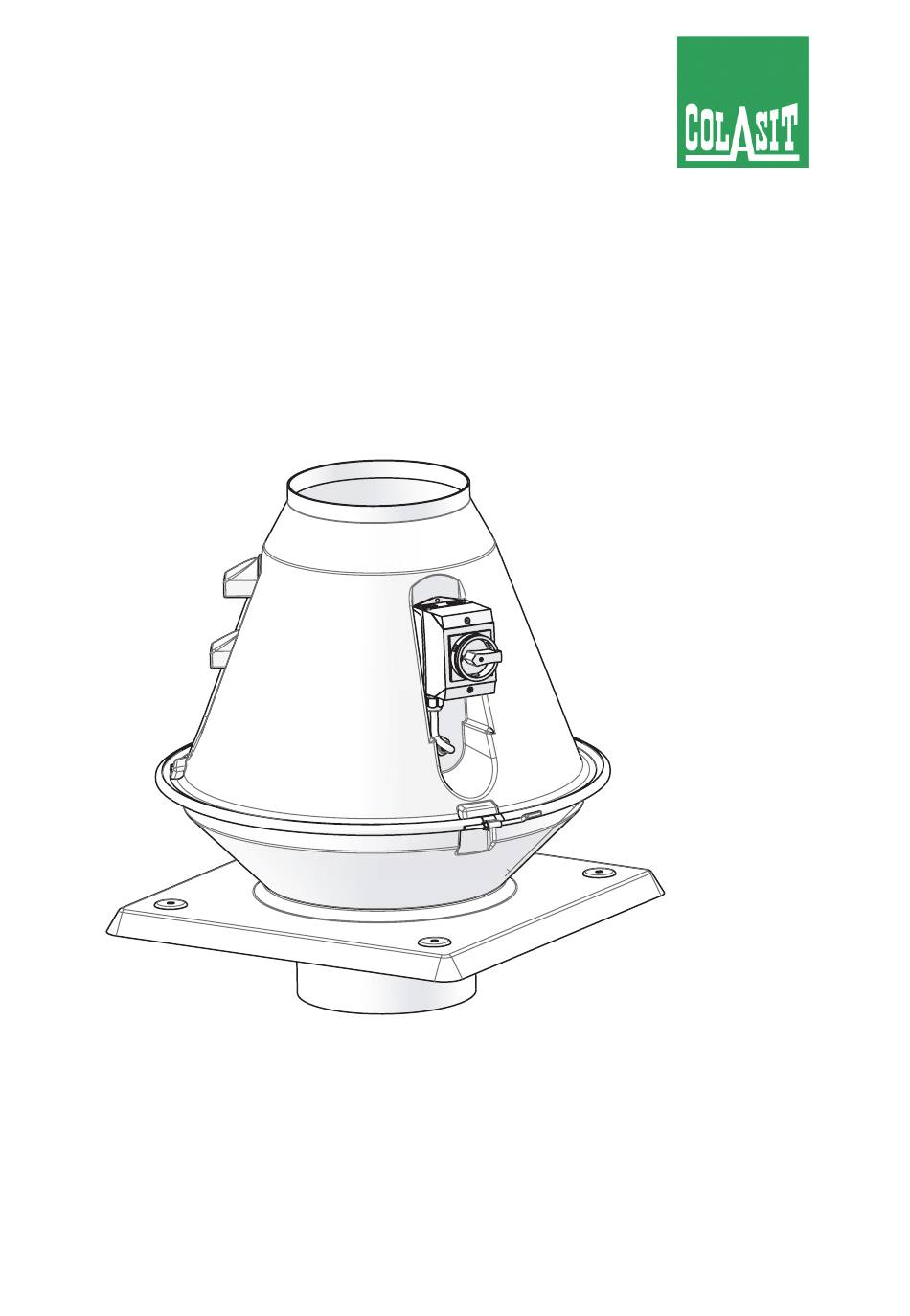

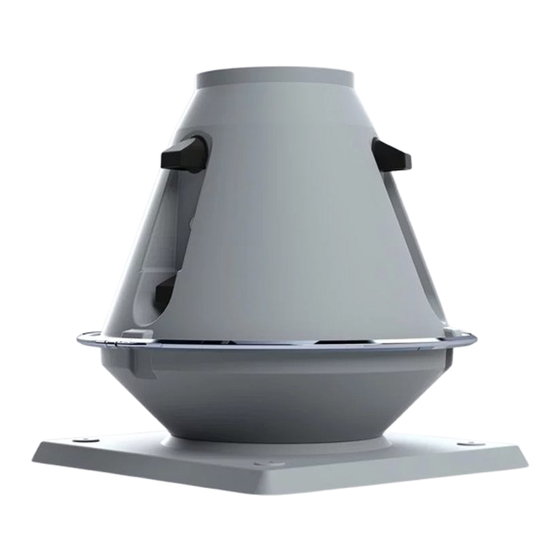

- Page 1 Operating instructions CRDV-D 200-315 Roof fan with direct drive Your point of contact: Colasit Representative Street Location Version 1.0-en | 07/2024...
- Page 2 Description Date Name 1-en First version published. 7/1/2024 A. Roth Document identification Translation of the original German operating instructions. Colasit TD-000877 Contact information Manufacturer COLASIT AG Faulenbachweg 63 CH-3700 Spiez E-mail: fans@colasit.com Website: www.colasit.com Phone: +41 (0)33 655 61 61...
-
Page 3: Table Of Contents
Options and accessories ..................4.3.1 Isolation switch................... 4.3.2 Frequency converter (FC)................4.3.3 Speed adjustment potentiometer ............... 4.3.4 Inlet/outlet grilles ..................4.3.5 Check valve with boot ................4.3.6 Roof mounting base................... Operating instructions CRDV-D 200-315 | Version 1.0-en 3 / 68... - Page 4 8.2.1 Check motor rotation direction ..............8.2.2 Functional test of the frequency converter (FC, optional accessory)..8.2.3 Conduct test run..................Operation ......................Safety instruction....................Operating instructions .................... Outside cleaning..................... Maintenance......................4 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en...
- Page 5 11.9 Replacing the V-ring seal ..................Removal from service, disposal, and recycling ..........12.1 Safety instructions ....................12.2 Environmental protection..................12.3 Removal from service..................... 12.4 Disposal instructions ....................EU - Declaration of conformity................Index ........................Operating instructions CRDV-D 200-315 | Version 1.0-en 5 / 68...
-
Page 6: Operating Instruction Information
For the sake of simplification, in these operating instructions, • the company Colasit AG is referred to as the “manufacturer,” • all sizes (CRDV-D 200-315) are generally referred to as the “fan,” • “frequency converter” is abbreviated as “FC,” • chapter and page number references appear as follows: Chap. -
Page 7: Copyright
The use and distribution of the operating instructions is permitted in the context of using the fan. Any other use is only permitted with the written consent of the manufacturer. Operating instructions CRDV-D 200-315 | Version 1.0-en 7 / 68... -
Page 8: Additional Safety Instructions
• For independent assessment, the operator is to consult the pertinent available resistance lists for plastics. The SIMCHEM guide is found on the manufacturer's website (www.colasit.com). 8 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... - Page 9 • The operating point (see characteristic map on the technical data sheet) shall be above the minimum permissible conveyed volume. • Operate the fan under negative pressure so that no or minimal conveyed medium escapes from the impeller hub. Operating instructions CRDV-D 200-315 | Version 1.0-en 9 / 68...
-
Page 10: Reasonably Foreseeable Misuse
• Any use of the fan that does not comply with the essential safety regulations of these operating instructions. • Operation without operating instructions and associated documents. • Operation with illegible or missing warning signs. 10 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 11: Equipment Limits
Residue and deposits of the conveyed medium can reside in the fan or flow in from the ductwork. • Qualified personnel responsible for maintenance and repair work shall • be trained in handling hazardous conveyed media, • wear suitable personal protective equipment, Operating instructions CRDV-D 200-315 | Version 1.0-en 11 / 68... -
Page 12: Target Groups And Personnel Requirements
• Clearly determine and regulate the responsibility for installation, servicing, maintenance, and repair of the fan. • Ensure that the responsible qualified personnel • have read and understood these operating instructions, 12 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 13: Transport Personnel
• and specialized knowledge of EMC-compliant wiring (consult the manu- facturer’s EMC guideline). • The fan manufacturer’s declaration of conformity is invalidated upon erro- neous connection of the frequency converter and electric motor. Operating instructions CRDV-D 200-315 | Version 1.0-en 13 / 68... -
Page 14: Operating Personnel
• The same requirements apply as for the mounting personnel Chap. 2.3.3 [} 13]. • An electrician is responsible for carrying out maintenance and repair work and for switching off and safely disconnecting the power supply from the fan. 14 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 15: Essential Safety Instructions
▪ Conditions for prevention of the danger... Measures for prevention of the danger... This warning instruction informs of a dangerous situation that can damage the fan or or lead to other material damage. Operating instructions CRDV-D 200-315 | Version 1.0-en 15 / 68... -
Page 16: Personal Protective Equipment
Work gloves for protection from injuries, burns, or contact with ag- gressive, toxic residues of the conveyed medium. Safety shoes for protection from crushing and from falling parts as well as slips and falls on slick surfaces. 16 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 17: Mechanical Hazards
Establish an electrically safe work condition before beginning work. Promptly rectify any defects discovered in the electrical components and wiring of the fan. Eliminate moisture from current-carrying components to avoid a short cir- cuit. Operating instructions CRDV-D 200-315 | Version 1.0-en 17 / 68... -
Page 18: Danger Due To Electromagnetic Interferences
Wear protective gloves when working on the fan or electric motor. When mounting the fan, observe the minimum distance between the fan cowl of the electric motor and neighboring components or walls Installation location requirements. 18 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 19: Noise Hazard
Regularly inspect safeguards for function and damage. Replace missing or damaged safeguards immediately. Actions to take in an emergency Explosion or melting of the plastic components during fan operation constitutes an emergency situation. Operating instructions CRDV-D 200-315 | Version 1.0-en 19 / 68... - Page 20 Do not attempt to extinguish in confined, small, or enclosed spaces. Instead, fight fire from outside through open door. Do not access area where fire occurred until it has been thoroughly venti- lated. 20 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en...
-
Page 21: Structure And Function
11. Lower part of housing with inlet connection (A). 12. Roof mounting flange. 13. Sleeve: Creates a stress-free con- nection between the inlet connec- tion and the connection tube. Fig. 2: Fan overview Operating instructions CRDV-D 200-315 | Version 1.0-en 21 / 68... -
Page 22: Signs And Warning Symbols On The Fan
Max. Drehzahl darf nie überschritten werden! Maximum rotation speed may not be exceeded! Vitesse maximale d´utilisation à ne dépasser! COLASIT AG Faulenbachweg 63, CH-3700 Spiez Phone: +41 (0)33 655 61 61 • www.colasit.com • fans@colasit.com Type CRDV-D 250/250 Serial No. 234567_10_1 Casing material Pos. -
Page 23: Options And Accessories
• Optional accessory. • For setting the nominal speed on the frequency converter (FC) according to the technical data sheet. • FC parameterization Chap. 7.3 [} 34]. Fig. 6: Speed adjustment potentiometer (example image) Operating instructions CRDV-D 200-315 | Version 1.0-en 23 / 68... -
Page 24: Inlet/Outlet Grilles
The check valve can only be installed vertically. • Prevents unwanted counter-flow (e.g., infiltration of cold air) when the fan is not operating. • Welded to the inlet flange. Fig. 8: Check valve with boot 24 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 25: Roof Mounting Base
Ceiling cut-out (rectangular connection) b) Ductwork connection A sleeve should be used for connection to ductwork. See the CRDV-R acces- sories on the manufacturer’s website (www.colasit.com). Dimensions in [mm] Type/NW Ø Operating instructions CRDV-D 200-315 | Version 1.0-en 25 / 68... -
Page 26: Transport
Do not receive delivery, or doing so only conditionally. Record transport damage (photos). Note the extent of the damage on the transport paperwork or on the trans- port company’s bill of lading. File a complaint immediately. 26 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 27: Packing
A package on a pallet can be transported by pallet stacker or forklift under the following conditions: • Forks inserted under the pallet as depicted such that they stick out from the opposite side. Fig. 10: Package on transport pallet Operating instructions CRDV-D 200-315 | Version 1.0-en 27 / 68... -
Page 28: Transport By Crane
The roof fan ships upright on a pallet and does not have rigging points for slings or chains. Transport the fan to the installation site with the pallet and packaging and position the fan there by hand. Maximum weight of the fan: 50 kg 28 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 29: Mechanical Installation
Suitable for absorption of static and dynamic loads. For calculations for the mounting parts, assume four times the fan weight. Ensure sufficient clearance around the fan for maintenance/repair work. Ensure sufficient clearance above the outlet connection. Operating instructions CRDV-D 200-315 | Version 1.0-en 29 / 68... -
Page 30: Connecting Fan To Ductwork
5. Check that the sleeve has been mounted in a flexible, stress-free manner. Fig. 13: Distance to ductwork connection A sleeve with flanges on both sides is also available. See accessories for the CRDV-R fan on the manufacturer’s website (www.colasit.com). 30 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 31: Condensate Drain
• Check that all screw connections on the fan and all fastening elements of the foundation (baseplate) or mounting surface are tight. • If present in ductwork: • Shut-off damper for inlet connection is closed. • Service openings are shut. Operating instructions CRDV-D 200-315 | Version 1.0-en 31 / 68... -
Page 32: Electrical Installation
The isolation switch • is a required protective device, • shall be installed in an easily-accessible location near the fan, 32 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 33: Motor Protection Switch Installation
When connected to a FC, shutdown should be performed by the "safe stop" safety function. This ensures that no residual voltage is applied to the motor windings and that the electric motor can cool down as quickly as possible. Operating instructions CRDV-D 200-315 | Version 1.0-en 33 / 68... -
Page 34: Starting Current Limiter
▪ If long cable shields are not connected/grounded, high contact voltages can occur during operation. Connect cable shields of motor connection cables and signal lines to a com- mon reference potential. Do not use protective earth connections for shielding purposes. 34 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 35: Frequency Converter (Fc) Installation Options
• EC ... Brushless DC motor Connection options Depending on the execution, an electric motor can either be connected directly (1) to the electrical mains or can/shall be operated with a FC. Operating instructions CRDV-D 200-315 | Version 1.0-en 35 / 68... -
Page 36: Frequency Converter (Fc) Parameterization
To avoid an FC error message, a longer acceleration/braking time could be nec- essary. Parameterization for PM motors Parameterization for PM motors differs significantly from three-phase motors. The FC and motor manufacturers offer support for this. 36 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 37: Connecting The Electric Motor To A Frequency Converter (Fc)
EMC cable gland (see detail). • Strip the cable end appropriately so that contact can be made with the cable shield. Connect the motor connection cable to the electric motor. Operating instructions CRDV-D 200-315 | Version 1.0-en 37 / 68... -
Page 38: Connecting The Electric Motor
• Compare the mains voltage and mains frequency with the information on the motor nameplate and determine the connection type of the electric mo- tor (star or delta connection). Fig. 17: Terminal assignment for delta and star connection 38 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 39: Final Inspection
• Check and record important FC parameters and settings: Maximum output frequency, V/f characteristic curves, acceleration and braking times Chap. 7.3 [} 34]. If required for control and placement in service, connect an external control unit to the FC. Operating instructions CRDV-D 200-315 | Version 1.0-en 39 / 68... -
Page 40: Placement In Service
• Increase fan speed from minimum to maximum speed Chap. 7.3.2 [} 36] • with an external signal from the higher-level controller, • with FC control elements or an external control unit, 40 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 41: Conduct Test Run
• Compare current values and parameters with initial values and parameters from the beginning of the test run: • Irregular running, vibration, or noises. • Current draw of the electric motor. • Vibration measurement. Operating instructions CRDV-D 200-315 | Version 1.0-en 41 / 68... - Page 42 • Create a test report during initial commissioning. • Leakage value: The leakage value of the supplied fan can be requested from the distributor. 42 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en...
-
Page 43: Operation
• Check/clean the condensate drain openings on the bottom of the housing Chap. 6.4 [} 31]. • Keep the installation site of the fan clean. Observe cleaning interval and adjust if necessary Chap. 10.2 [} 44]. Operating instructions CRDV-D 200-315 | Version 1.0-en 43 / 68... -
Page 44: Maintenance
10.2 Maintenance table The maintenance intervals (W/weekly, M/monthly, 6M/semi-annually and 12M/ annually) are to be adapted to the current operating conditions of the fan as de- termined by the customer. 44 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 45: Maintenance Work
Material damage and production downtime, reduced service life. ▪ Improper use or deposits on the impeller lead to imbalance and vibration. Switch fan off immediately in case of unusual vibration. Check parts in contact with the medium. Operating instructions CRDV-D 200-315 | Version 1.0-en 45 / 68... -
Page 46: Inside Cleaning
The mechanical and electrical functionality of the fan are assessed in the annual inspection, and its continued operation is ensured. This also applies in the event of extensive downtime. Check during outside inspection • Cracking: Fan housing • Noise: Motor bearings 46 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... - Page 47 • Check leak tightness of the casing between the upper part and lower part (sealing ring, tension ring). • Fixed position of all fastening elements (anchors) in the foundation (baseplate). • Short test run, checking for vibration and noise. Operating instructions CRDV-D 200-315 | Version 1.0-en 47 / 68...
-
Page 48: Repair
Faulty motor winding. Winding measure- Replace electric motor speed cannot ment. Chap. 11.8 [} 56]. be reached. Improper phase volt- Measure phase volt- Check/replace fuses, age. age. motor connection ca- ble, FC cable. 48 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... - Page 49 Chap. 11.8 [} 56]. Electric motor bearing Turn electric motor by Check EMC guide- damage. hand. lines. Damaged cable, faulty Measurement, visual Replace cable. cable connection. inspection. Operating instructions CRDV-D 200-315 | Version 1.0-en 49 / 68...
- Page 50 Repair or replace elec- electric motor. damage. current draw measure- tric motor ment, winding mea- Chap. 11.8 [} 56]. surement. Impeller stiff or Visual inspection. Remove deposits or stopped. foreign objects Chap. 10.3.3 [} 46]. 50 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en...
- Page 51 Determine grinding Remove deposits or jects between impeller point. foreign objects and inlet cover. Chap. 10.3.3 [} 46]. Check with feeler gauge. Impeller defect. Visual inspection. Replace impeller Chap. 11.7 [} 54]. Operating instructions CRDV-D 200-315 | Version 1.0-en 51 / 68...
-
Page 52: Spare Parts And Wear Parts
Order spare parts and wear parts from customer service (see title page) in a timely manner with the following information: • Type classification of fan according to nameplate or technical data sheet. 52 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 53: Preparation For Repairs
Special centering pieces are needed for proper installation and alignment of the electric motor/motor shaft and impeller to the casing. Contact your Colasit distributor for details and a comprehensive installation manual. Prepare the fan for repair (impeller, electric motor, V-ring seal, etc.) as follows: Observe safety instructions Chap. -
Page 54: Check Impeller
Fig. 18: Removing the housing 11.7 Impeller exchange Conditions: • Fan has been prepared for repairs Chap. 11.4 [} 53]. • The hood/upper part of the housing is removed Chap. 11.6 [} 54]. 54 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... - Page 55 The impeller with keyway is mounted directly on the motor shaft for CRDV 125-200 fans with size 100 or 112 electric motors as well as for CRDV 250-315 fans with size 132 electric motors. Operating instructions CRDV-D 200-315 | Version 1.0-en 55 / 68...
-
Page 56: Electric Motor Exchange
• Fan has been prepared for repairs Chap. 11.4 [} 53]. • The hood/upper part of the housing is removed Chap. 11.6 [} 54]. • Impeller has been removed Chap. 11.7 [} 54]. 56 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... - Page 57 Observe the instructions in the manual from the motor manufacturer. 3. Tighten the mounting nuts in accordance with the table. The thread is based on the motor size. Operating instructions CRDV-D 200-315 | Version 1.0-en 57 / 68...
-
Page 58: Replacing The V-Ring Seal
Check identical axial alignment of the impeller. The impeller should turn freely by hand after mounting. Observe the direction of rotation Chap. 8.2.1 [} 40]. 7. Conduct a test run (at least 1 h) after repair Chap. 8.2.3 [} 41]. 58 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 59: Removal From Service, Disposal, And Recycling
Watch for deposits and condensate of the conveyed medium in the fan and ductwork. Procedure: • Switch off fan and FC (option) and prepare them for removal: • Allow to cool down. Operating instructions CRDV-D 200-315 | Version 1.0-en 59 / 68... -
Page 60: Disposal Instructions
• Separate the fan components into material groups and dispose of them sep- arately: • Metals • Plastics • Electrical components Dispose of plastic parts contaminated by conveyed media that are harmful to health and the environment as special waste. 60 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... -
Page 61: Eu - Declaration Of Conformity
EN ISO 12499: 2008 EN 60204-1: 2019 EN IEC 61000-6-4:2019 Name and address of the Andreas Roth document manager COLASIT AG Faulenbachweg 63 3700 Spiez Switzerland Spiez, 6/7/2024 B. Stucki (Division manager) Operating instructions CRDV-D 200-315 | Version 1.0-en 61 / 68... -
Page 62: Index
27 Isolation switch 7, 17, 20, 23, 32, 37, 38, 39, 40, 43, 44, 53, 60 EC motor 35 Electrician 13, 14, 17, 32, 40, 44, 45, 48, 59, 60 62 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en... - Page 63 Original packaging 27 Sling 26, 28 Outlet connection 11, 22, 40 Smooth running 30 Outlet grille 45 Spare parts 10, 52 Outside cleaning 14, 45 Specification sheet 7, 8, 9 Operating instructions CRDV-D 200-315 | Version 1.0-en 63 / 68...
- Page 64 Transport protection 26 Transport route 26 Vibration 10, 38, 41, 45, 50 V-ring seal 21, 45, 53, 58 Warning symbols 15 Wear part 52 Work area 19, 29, 44, 59 64 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en...
- Page 65 Notes Notes Operating instructions CRDV-D 200-315 | Version 1.0-en 65 / 68...
- Page 66 Notes 66 / 68 Operating instructions CRDV-D 200-315 | Version 1.0-en...
- Page 67 Notes Operating instructions CRDV-D 200-315 | Version 1.0-en 67 / 68...
- Page 68 - since 1945 - When it comes to thermoplastics, Colasit AG is one of the world's leading brands in fan and system engineering. Our qualified staff impress with technical expertise and great dedication, guaranteeing you the highest quality on all five continents.
