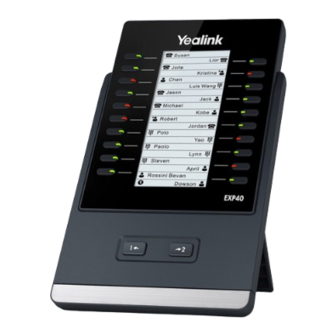

Yealink EXP40 Quick Installation Manual

Expansion module

Hide thumbs Also See for EXP40:

Download this manual

As shown below:

Connecting Cord

Note: You can connect six modules at most. You just need to connect the Ext in jack of the previous

module and the Ext out jack of the next module using a connecting cord.

Then you can attach the stand, the power adapter and the Ethernet cable to the

phone, connect the handset and headset to use.

Assembling the EXP40

Attach the stand or the optional wall mount bracket, as shown below:

Desk Mount Method

Wall Mount Method(Optional)

Note: Yealink provides the wall mount drilling template, which locates and marks the position for the

mounting screws on the wall. You can download it at: http://www.yealink.com/Support.aspx.

For more information, refer to the User Guide online at

http://www.yealink.com/DocumentDownload.aspx?CateId=142&flag=142
