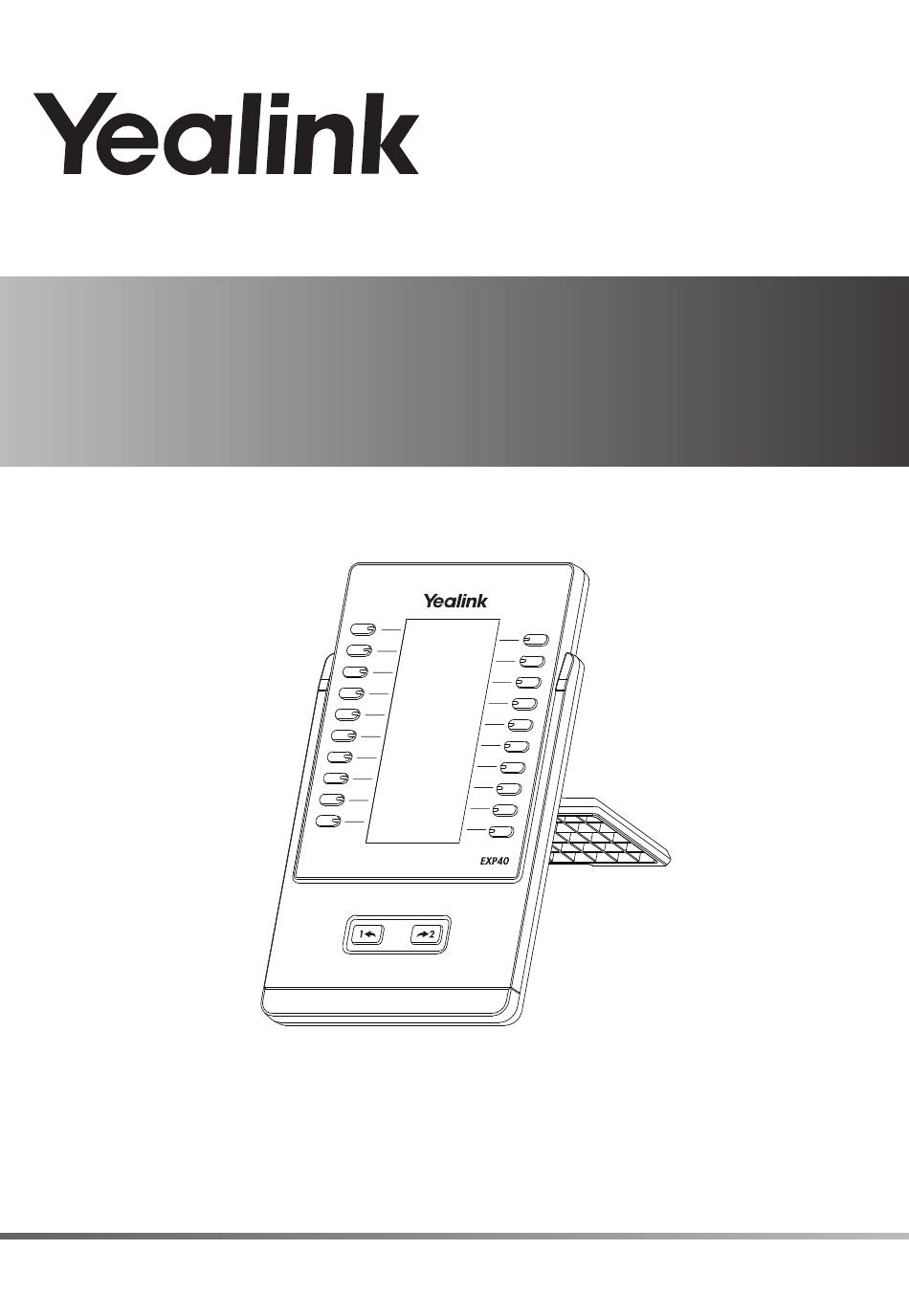

LCD Expansion Module
EXP40
Quick Start Guide(V9.25)
www.yealink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXP40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yealink EXP40

Summary of Contents for Yealink EXP40

  • Page 1 LCD Expansion Module EXP40 Quick Start Guide(V9.25) www.yealink.com...
  • Page 2 Connecting Cord Expansion Module Stand Connecting Sheet (Optional) Connecting to the Phone 1. Connect the EXP40 and the phone using the supplied screws and connecting sheet, as shown below: Your phone and the expansion module will be connected as shown below:...
  • Page 3 Connecting two Modules 2. Follow the same step to connect two expansion modules: Your phone and the two expansion modules will be connected as shown below: Note: T48S/T46S/T42S/T41S Skype for Business phone can support six expansion modules at most. But if you use more than two expansion modules, you need to connect an additional power adapter to any one of the expansion modules.
  • Page 4 Ext out jack of the next module using a connecting cord. Then you can attach the stand, the power adapter and the Ethernet cable to the phone, connect the handset and headset to use. Assembling the EXP40 Attach the stand or the optional wall mount bracket, as shown below: Push...
  • Page 5 Assigning Contacts to the EXP40 Each EXP40 provides you with 20 EXP keys and 2 display pages, supporting a total of 40 EXP keys that you can set up as contacts. You can connect up to 6 expansion modules to your phone to support a maximum of 240 EXP keys per phone.
  • Page 6 Your phone is locked. Using the EXP40 When your phone is connected to the EXP40, you can assign contacts to EXP keys on your EXP40. You can quickly call contacts, initiate a conference call or transfer a call by pressing the corresponding EXP key on the expansion module.
  • Page 7 2. Press an EXP key to call the desired contact. After the party answers the call, a conference is initiated. To perform a blind transfer during a call : 1. For T46S phones, press the B Trans soft key during a call. For T48S phones , tap the Blind Trans soft key during a call.
  • Page 8 Founded in 2001, Yealink, a leading provider of VoIP Phone and IP communication solutions, has been focusing on VoIP products characterized by reliable quality, easy deployment and affordable price for more than a decade. Today, customers from over 140 countries rely on Yealink as the backbone of global collaboration to extend the value of network communications.
