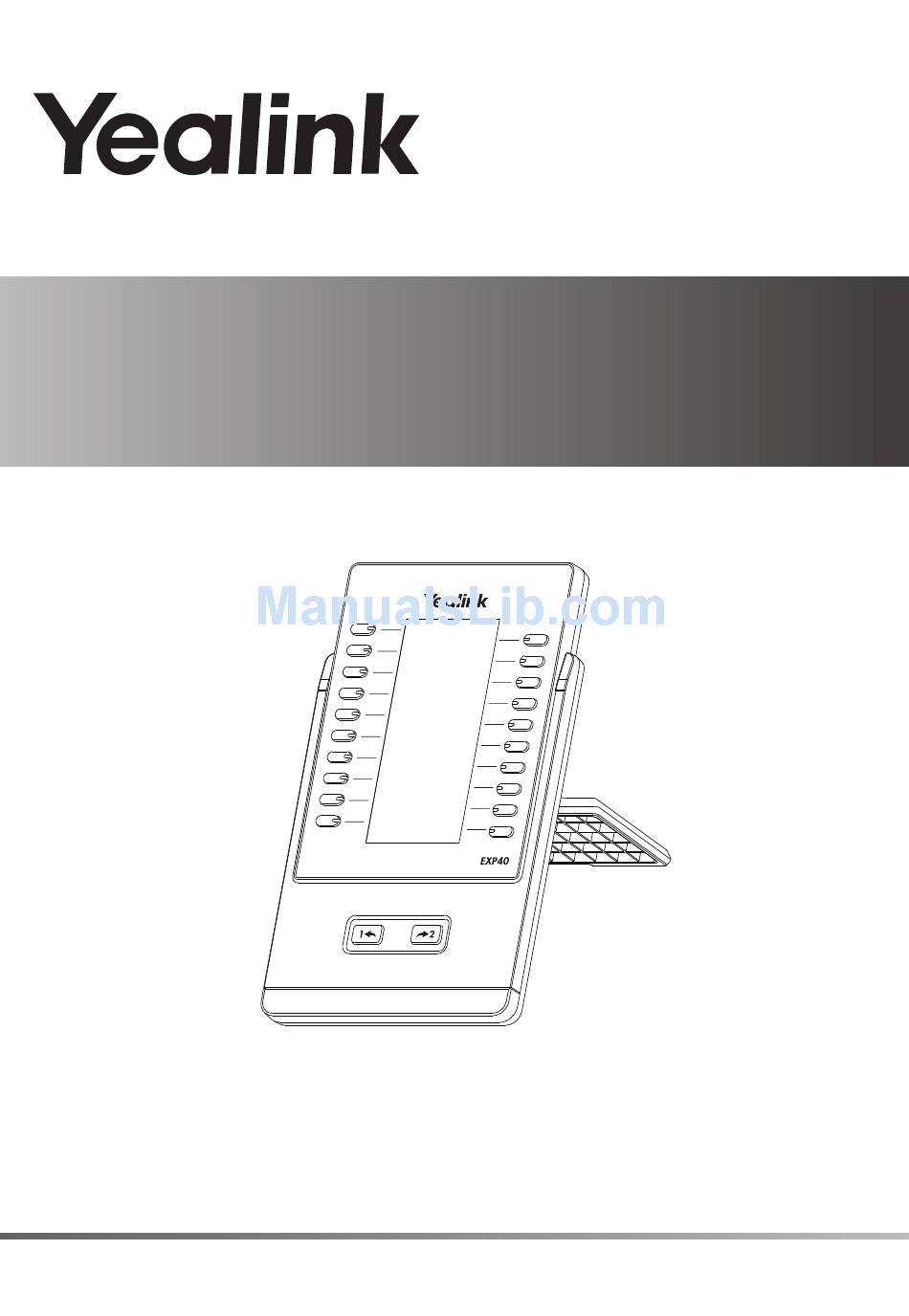

LCD Expansion Module
EXP40
Quick Start Guide (V16.3)
www.yealink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXP40 and is the answer not in the manual?

Questions and answers

Related Manuals for Yealink EXP40

Summary of Contents for Yealink EXP40

  • Page 1 LCD Expansion Module EXP40 Quick Start Guide (V16.3) www.yealink.com...
  • Page 2 Connecting Cord Expansion Module Stand Connecting Sheet (Optional) Connecting to the Phone 1. Connect the EXP40 and the phone using the supplied screws and connecting sheet, as shown below: Your phone and the expansion module will be connected as shown below:...
  • Page 3 Connecting two Modules 2. Follow the same step to connect two expansion modules: Your phone and the two expansion modules will be connected as shown below: Note: T48S/T48G/T46S/T46G IP phone can support six expansion modules at most. But if you use more than two expansion modules, you need to connect an additional power adapter to any one of the expansion modules.
  • Page 4 Ext out jack of the next module using a connecting cord. Then you can attach the stand, the power adapter and the Ethernet cable to the phone, connect the handset and headset to use. Assembling the EXP40 Attach the stand or the optional wall mount bracket, as shown below: Push...
  • Page 5 DSS key. You can assign a feature to a DSS key via phone user interface. Press the desired DSS key of EXP40 for about 5 seconds, the phone LCD screen will prompt the setting of this key. The following sections provide you with detailed instruction of assigning some frequently used features to the DSS keys via web user interface.
  • Page 6 You can access the SMS more quickly and easily by pressing the SMS key. 1. Click on DSSKey->Ext Key. 2. In the desired DSS key field, select SMS from the pull-down list of Type. 3. Enter the desired value in the Label field. 4.
  • Page 7 Speed Dial You can speed up dialing the numbers which are frequently used or hard to remember by pressing the speed dial key. 1. Click on DSSKey->Ext Key. 2. In the desired DSS key field, select Speed Dial from the pull-down list of Type. 3.
  • Page 8 About us Founded in 2001, Yealink, a leading provider of VoIP Phone and IP communication solutions, has been focusing on VoIP products characterized by reliable quality, easy deployment and affordable price for more than a decade. Today, customers from over 140 countries rely on Yealink as the backbone of global collaboration to extend the value of network communications.
