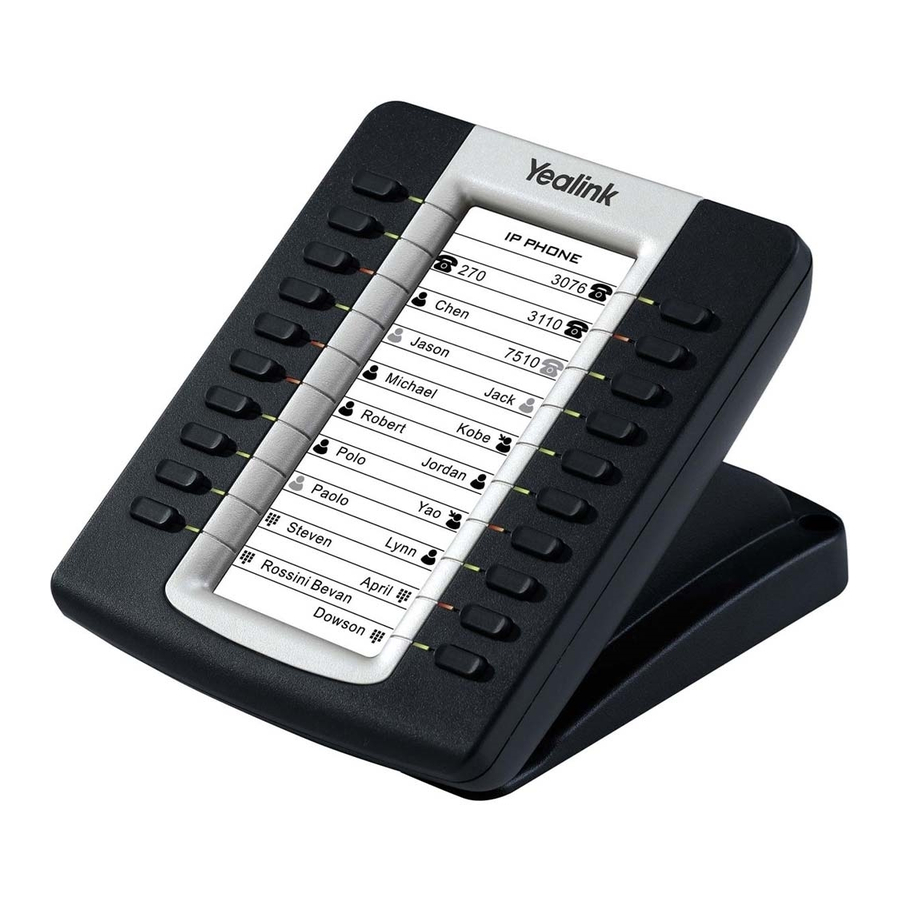

Expansion Module EXP39 is designed for connection to the Yealink T26P/T28P

and T38G VoIP phones.

Note: Before installation, be sure to unplug the remote Internet connection and/or

power supply as well as the phone stand from the Yealink IP phone. Place the telephone

and the expansion module upside down on a soft surface so that you can read

nameplates from the front. The expansion module must be placed to the left of the

telephone.

a). Connect to the phone

Use the connecting sheet and screw to connect the EXP39 to the IP phone.

Yealink EXP39 Expansion Module

Table of Contents

Need help?

Do you have a question about the EXP39 and is the answer not in the manual?

Page 1 Note: Before installation, be sure to unplug the remote Internet connection and/or power supply as well as the phone stand from the Yealink IP phone. Place the telephone and the expansion module upside down on a soft surface so that you can read nameplates from the front.
Page 2 b). Connect to the next module Follow the same step to connect the next expansion module ...
Page 3 Configuration The expansion module EXP39 has 38 programmable keys that can be configured via the Star2Star web portal. 19 keys appear on the first screen with a “Page Switch” key at the top of the screen that switches the display to a second display of 19 keys. Press the “Page Switch”...
Page 4 2. Click Extensions. 3. Edit the extension and set the number of expansion modules. Click Save Changes to PBX.
Page 5 4. Click Individual Phone Settings. 5. Click the Speed Dials option. 6. Use the drop-down lists to point the speed dials to the desired extensions, destinations or custom dial patterns.
Page 6 7. Click Save Changes to PBX. 8. Once the Save Changes has completed, reboot the phone.
