BEGA 84 240 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

• 5mm hex head screwdriver
• 4mm hex head screwdriver
• 3mm hex head screwdriver
• T25 torx head screwdriver
• Special tool (provided by BEGA)
• Adjustable wrench

Overview:

LED Watts: 17.6W
System Watts: 22.0W
Controllability: 0-10V dimmable
Weight: 124.3 lbs.
Protection Class: IP65

Notice to Installer:

1. See page 3 for specific product safety warnings.
2. Fixture may be damaged if connected to conduit systems that contain water - Article
300-5G of the National Electric Code requires that "Conduits or raceways through
which moisture may contact energized live parts shall be sealed or plugged at either
or both ends."
3. Fixture ships in two parts, the head and post will be in separate boxes.

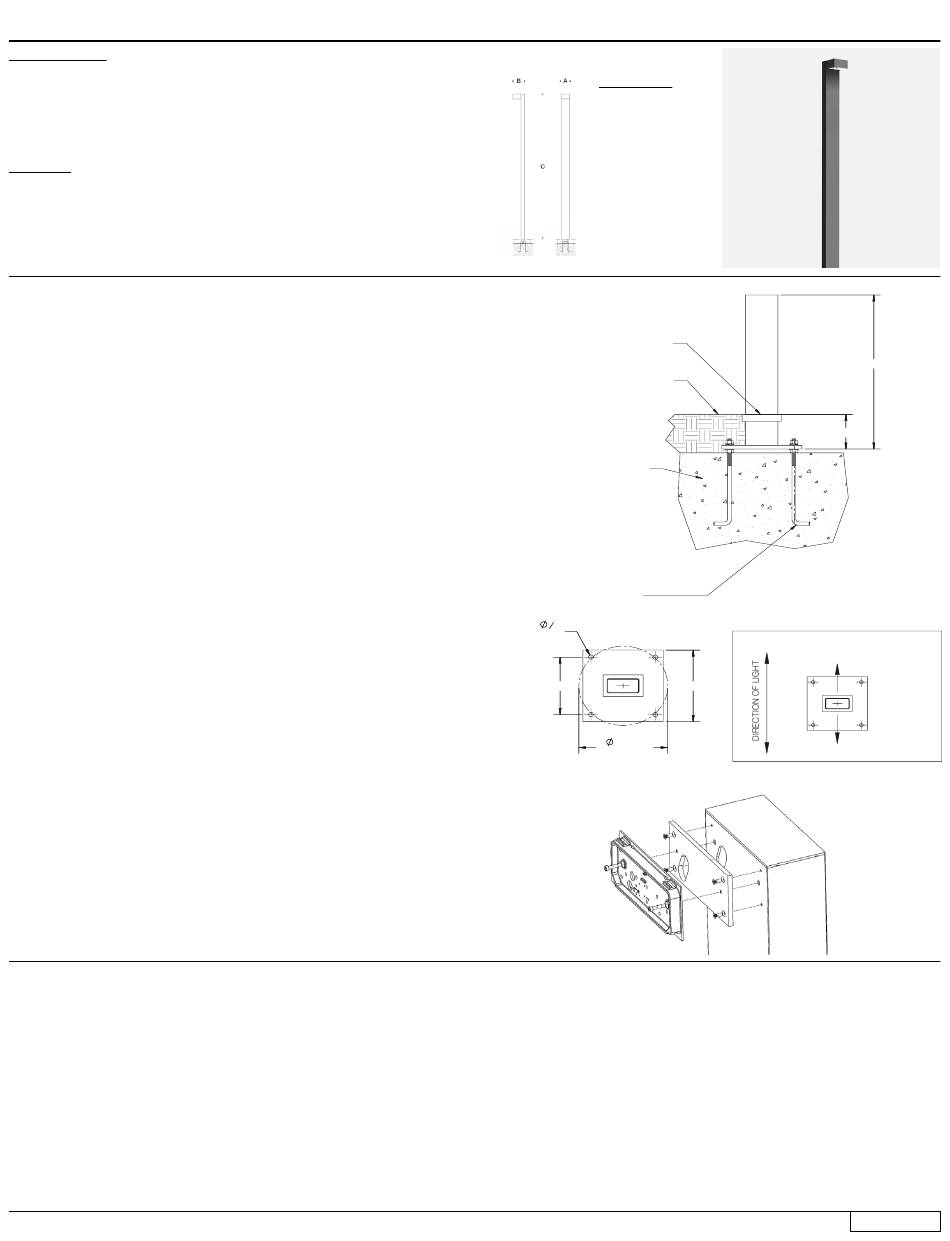

79802 Anchor installation:

1. Anchor kit 79802 must be installed in concrete. This anchorage kit is buried below
the finished grade. Attention to alignment, leveling, and location is required for
proper installation See Figure 1.
2. Provide means to bring supply wiring to luminaire in accordance with local code. The
template has a 2-1/8"x 4-1/2" conduit opening for conduit entry. Provide adequate
foundation reinforcement for the intended load (by others).
3. Use template (Figure 2) and anchor bolts provided. Anchor bolts can be installed by
either attaching template to concrete form, or by inserting anchor bolts into poured
concrete. Ensure template and anchor bolts are leveled properly.
4. IMPORTANT: Align and level template so the orientation of the rectangular
conduit hole matches the desired orientation of the linear element (Figure 3).
Make sure anchor bolts will not protrude from concrete foundation more than 2-1/4".
5. Once the concrete footing is set, remove template and pull supply wiring through
anchor base to a height of 36" to allow for wiring connections to be made later.
6. Attach anchor base to anchor bolts using leveling washers, lock washers, and hex
nuts (provided).
7. Install finished grade.

84240 luminaire installation:

1. Fixture ships in two parts. Assemble top of luminaire and post together. Do not install
post without head attached.
2. Remove top of post by inserting a flat head screwdriver into one of the grooves on
the side of the post. Lift to remove.
3. Open fixture head by loosening (2) 3mm hex head screws near fixture lens.
Disassemble fixture head and mounting plate as shown in Figure 4.
4. Secure mounting plates to post by tightening (4) T25 torx head screws and (2) 4mm
hex head screws as shown in Figure 4.
5. Route wires from luminaire head through mounting plate and post to access door for
connections to be made later.
6. Replace the rest of the fixture head ensuring gasket is seated correctly. Tighten (2)
3mm hex head screws to secure. Replace post cap.
7. Place post over anchor base ensuring the fixture is oriented correctly for desired light
output direction.
8. Secure post to anchor base by tightening (8) 5mm hex head screws at the base of
the post.
9. Open access door by using the special tool provided by BEGA.
10. Make supply wiring connections in the base of the post
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
0-10V dimming (if applicable):
DIM CONTROL WIRE (+) TO POSITIVE LUMINAIRE DIM CONTROL WIRE
DIM CONTROL WIRE (-) TO NEGATIVE LUMINAIRE DIM CONTROL WIRE
11. Close access door.
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2022
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
IMPORTANT! ANCHOR ORIENTATION
IMPORTANT!
CORNERS OF BASE &
LUMINAIRE MUST BE
ALIGNED IN DESIRED
LOCATION &
ORIENTATION. SEE DETAIL.
IMPORTANT! ANCHOR ORIENTATION
LIGHT OUTPUT
Building element - asymmetric · single
Dimensions
A: 9-1/2
B: 12-3/8
C: 177-1/8
IMPORTANT!
CORNERS OF BASE &
LUMINAIRE MUST BE
ALIGNED IN DESIRED
LOCATION &
ORIENTATION. SEE DETAIL.
Figure 1:
THIS SURFACE MUST
BE FLUSH TO
FINISHED GRADE
FINISHED GRADE
CONCRETE
FOOTING
(4) 5/8" X 14" X 2" 'L'
ANCHOR BOLTS WITH
REV CHANGED BY DESCRIPTION
LEVELING WASHERS,
LOCK WASHERS, AND
HEX NUTS
Figure 2:
" "
3 3
TOP VIEW
4 4
4 PLC. 4 PLC.
LIGHT OUTPUT
9 1/2" 9 1/2"
13 3/8" 13 3/8"
BOLT CIRCLE BOLT CIRCLE
LIGHT OUTPUT
Figure 4:
THIS SURFACE MUST
BE FLUSH TO
FINISHED GRADE
FINISHED GRADE
CONCRETE
FOOTING
(4) 5/8" X 14" X 2" 'L'
ANCHOR BOLTS WITH
LEVELING WASHERS,
LOCK WASHERS, AND
HEX NUTS
1000 BEGA Way, Carpinteria, California 93013
REV CHANGED BY DESCRIPTION
" "
3 3
TOP VIEW
4 4
4 PLC. 4 PLC.
9 1/2" 9 1/2"
13 3/8" 13 3/8"
BOLT CIRCLE BOLT CIRCLE
DATE
Figure 3:
IMPORTANT! ANCHOR ORIENTATION
11 3/4" 11 3/4"
1000 BEGA Way, Carpinteria, California 93013 P (805) 684-0533 - www.bega-us.com
APPROVED: DATE: DESCRIPTION:
ANCHOR KIT - INCLUDED
TYPE:
SIZE PART NO.
PROPRIETARY AND CONFIDENTIAL
79802
B
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY
OF BEGA NORTH AMERICA, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN
NOT TO SCALE
PERMISSION OF BEGA NORTH AMERICA, INC. IS PROHIBITED.
25 3/8" 25 3/8"
5 3/4" 5 3/4"
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
P (805) 684-0533 - www.bega-us.com
84 240
DATE
11 3/4" 11 3/4"
IMPORTANT!
CORNERS OF BA
LUMINAIRE MUS
ALIGNED IN DES
LOCATION &
ORIENTATION. S
TH
BE
FIN
25 3/8" 25 3/8"
FIN
5 3/4" 5 3/4"
(4)
AN
LE
LO
HE
LIGHT OUTPUT
LIGHT OUTPUT
REV
-
2/28/2022 SHEET 2 OF 3
Updated: 03/03/22
84 240 1 of 3
