BEGA 84 253 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
• 4mm hex head screwdriver
• 13mm hex socket
• Adjustable wrench
Overview:
LED Watts: 25.2 W
System Watts: 34.0 W
Controllability: 0-10V, TRIAC, and ELV dimmable
Weight: 20.5 lbs.
Protection Class: IP66
Notice to Installer:
1. See page 2 for specific product safety warnings.
2. For pole top applications only.
3. Slip fits 3" O.D. poles only.
4. Inner diameter of pole must measure a MINIMUM of 2-1/2" with a MAXIMUM diameter
of 2-3/4
5. LED module and integral driver provided by BEGA.
6. Pole top luminaire supplied with 25 feet of cable to route through pole.
7. Do NOT remove moisture absorption packet from luminaire housing.
8. Fixture should not be opened during installation.

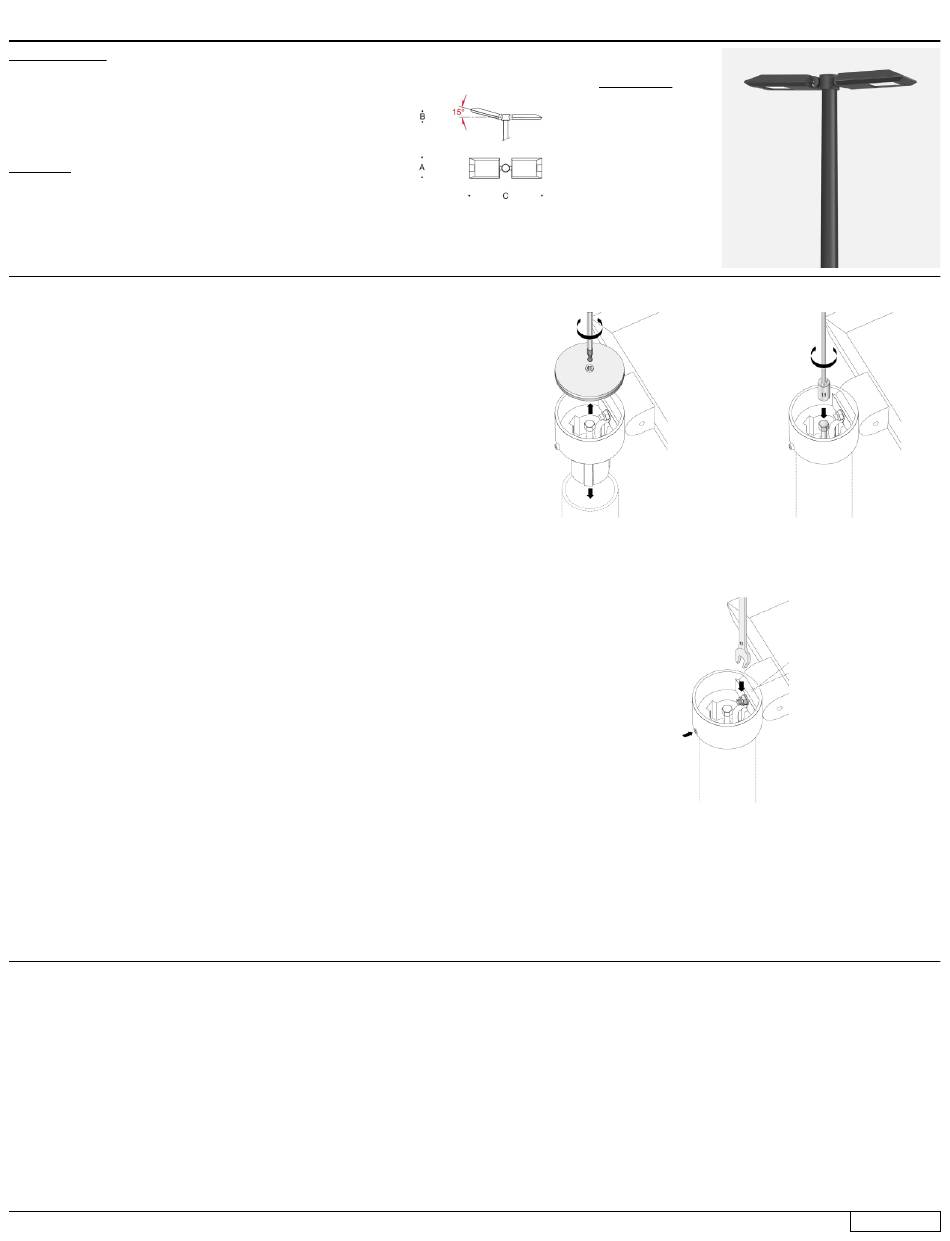

Luminaire 84 253 installation:
1. Loosen hex screw on pole cap and remove pole cap. (Figure 1)
2. Lead luminaire wires into top of pole and through the base of pole or handhole to
make wire connections.
3. Secure luminaire head to pole by tightening 13mm hex nut to engage pole
fitter expansion mechanism (Figure 2). Torque - 8.85 ft-lb MAXIMUM.
Note: IF TORQUE ALLOWANCE IS EXCEEDED POLE FITTER CAN BE
DAMAGED AND LUMINAIRE WARRANTY WILL BE VOID.
4. Secure outer 4mm set screw on luminaire housing.
5. To adjust beam direction (up to 15 degrees), undo hex nut and adjust joint (Figure 3).
Be sure teeth are secured into position. BE CAREFUL AS THE FIXTURE WILL DROP
QUICKLY UPON LOOSENING.
6. Replace slip fitter cap and tighten cap hex screw.
7. Make supply wiring and luminaire wiring connections inside pole base or handhole:
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE DRIVER DIM CONTROL WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE DRIVER DIM CONTROL WIRE
Luminaire Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2022
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
Area/roadway luminaire - Asymmetric - Twin
Mounting Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
Dimensions
A: 10"
B: 2-3/8"
C: 32"
Figure 1
Figure 3
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 253
Figure 2
Updated: 09/22/22
84 253 1 of 2
