BEGA 84 245 Installation Manual

BEGA
Installation and Technical Information
Tools Required:
• Adjustable wrench
• 4mm hex head screwdriver
• 5mm hex head screwdriver
• 6mm hex head screwdriver
• Special tool (included)
Overview:
LED Watts: 13.6W
System Watts: 17.0W
Controllability: 0-10V, TRIAC, and ELV dimmable
Weight: 35.1 lbs.
Protection Class: IP65
Notice to Installer:
1. Fixture may be damaged if connected to conduit systems that contain water.
Article 300-5G of the National Electric Code requires that "Conduits or
raceways through which moisture may contact energized live parts shall be sealed
or plugged at either or both ends."
2. 79 818 anchorage kit (included) must be installed in concrete pad/foundation.
3. It is recommended that when installing in planting areas the pole base be
slightly elevated to avoid prolonged submerging during heavy rains.
4. Wet location listing does not imply suitability for exposure to standing water for
long periods of time.
Anchorage Installation:
1. Provide means to bring supply wiring to the pole in accordance with local code.
2. Assemble anchorage kit. Unscrew the (3) hex bolts from the female couplers. Remove
each hex bolt and washer. Align each anchor bolt with the hole in the template. Attach
each anchor bolt to the template by replacing the washer and hex bolt and tightening.
3. Determine the finished grade for the application. Use leveling hardware to adjust
template to desired finished height after pouring.
4. Install anchorage kit using either method:
A. Attach template to form or cross bracing using nail holes provided in
template. Level template properly. Pour concrete.
B. Insert anchorage assembly into poured concrete. Concrete must be
vibrated to sure proper anchorage setting. Level template properly.
5. Remove (3) hex bolts and washers once anchorage is set. Set aside for use during
luminaire installation.
6. Remove template. Smooth concrete pad as required.
Important: Allow adequate time for concrete to cure before installing luminaire.
Luminaire Installation:
1. Remove base plate from pole by loosening (1) 5mm set screw near pole base.
2. Align base plate holes with anchorage holes.
3. Bolt the base plate to the anchorage kit using the (3) hex bolts and washers.
4. Assemble the luminaire. Feed wire bundle supplied with fixture head through the pole
to the base. Slip head over top of pole (Figure 2). Tighten (3) 4mm hex head screws to
secure.
5. Carefully place pole over pole base with head attached. Aim as needed and tighten
(1) 5mm set screw to 12Nm to secure. Fixture is rotatable 360° on anchorage.
6. Open the access door using the special tool (included).
7. Make supply wiring connections inside pole behind access door:
MAIN VOLTAGE SUPPLY WIRE TO BLACK FIXTURE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE FIXTURE WIRE
GREEN GROUND WIRE TO GREEN FIXTURE WIRE
Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE FIXTURE DIM WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE FIXTURE DIM WIRE
8. To adjust head angle, loosen (1) 6mm hex head screw and adjust luminaire head as
desired up to 90°. Tighten screw to 14Nm to secure.
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2022
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
Building element - asymmetric wide beam single
Dimensions
A: 10-1/4
B: 102-7/8
C: 14

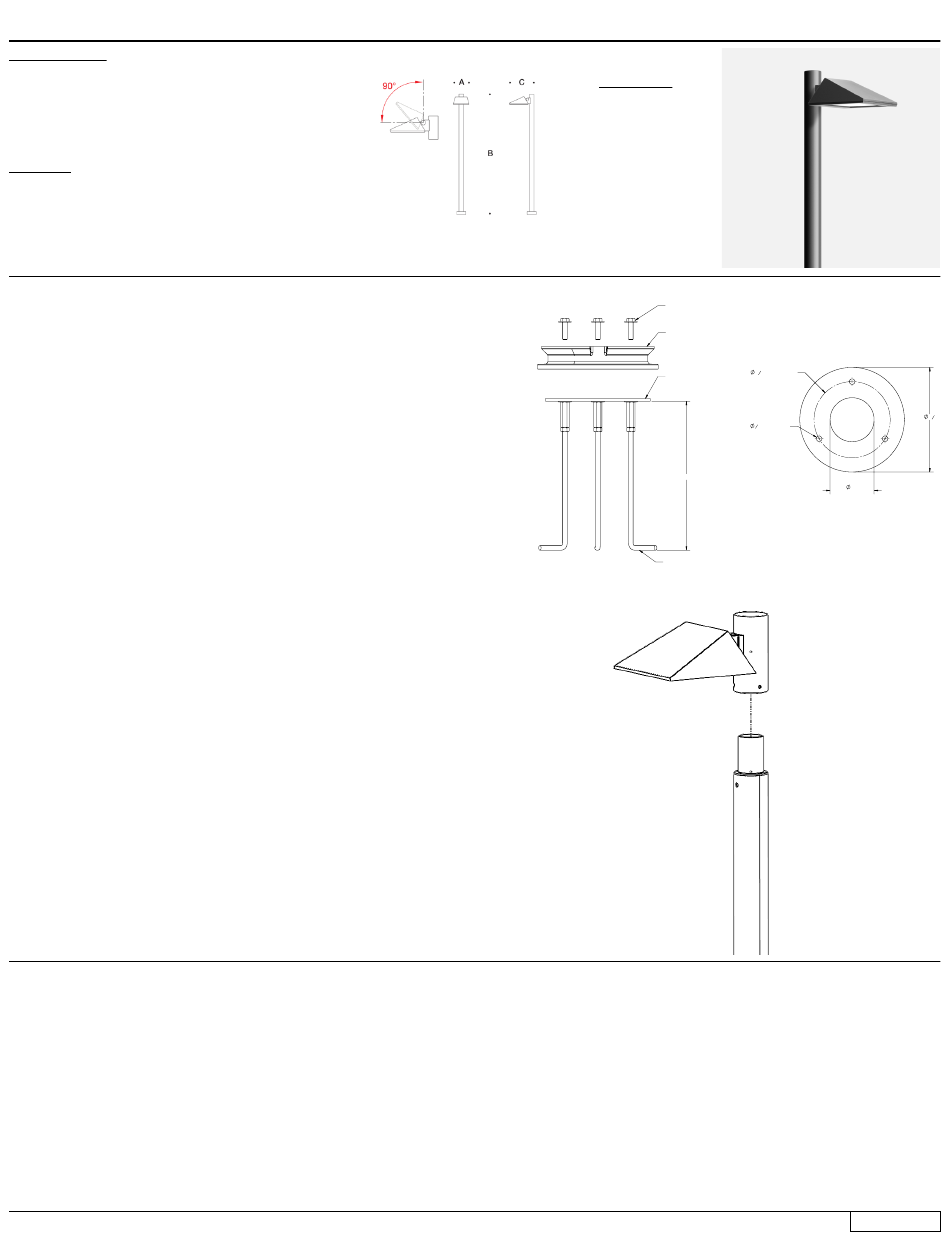

Figure 1:
Figure 2:
REV CHANGED BY
(3) BOLTS
(3) POLE BASE (NOT INCLUDED IN ANCHOR KIT)
5 1 " BOLT CIRCLE
ANCHOR TEMPLATE 4
" BOLT HOLE
3
8
11"
CONDUIT ENTRY
1000 BEGA Way, Carpinteria, California 93013
APPROVED:
TYPE:
(3) ANCHOR BOLTS
PROPRIETARY AND CONFIDENTIAL
5/16" - 18 X 10"
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY
OF BEGA NORTH AMERICA, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF BEGA NORTH AMERICA, INC. IS PROHIBITED.
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 245
DESCRIPTION DATE
7 "
1
8
3"
P (805) 684-0533 - www.bega-us.com
DATE: DESCRIPTION: ANCHORAGE KIT
SIZE PART NO. REV
79818
-
B
NOT TO SCALE 8/23/2022 SHEET 2 OF 2
Updated: 09/20/22
84 245 1 of 2
