BEGA 84 218 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
• 3mm Hex Key
• Digging tool
Overview:
LED Watts: 4.2W
System Watts: 6.0W
Input Voltage: 12-24V AC
Weight: 7.5 lbs.
Protection Class: IP65
Notice to Installer:
1. For use with 12-24V AC magnetic landscape transformers only.
2. Voltage must NOT drop below 10V at fixture location.
3. Turn main power OFF before start of installation.
4. Luminaires most be installed 10 feet or more from pool, spa or fountain.
5. Wiring connection points must be made in a watertight location.
6. Anchorage tube length 11 3/4''.
Installation: Luminaire
1. Establish an area for fixture placement and prepare the soil for anchorage by digging
a hole (12" maximum depth).
2. Dig a trench from the anchorage hole to the power source. The depth of the trench
will be determined by national, state, and local codes.
3. Install at least 3" of pea gravel or similar in the bottom of the anchorage hole for
drainage.
4. Loosen (2) set screws on the garden bollard to release the anchorage post.
[Figure 1]
5. Bring 12-24V supply wiring into the bottom of the anchorage post and feed through
to the top until 12" of the cable comes up through the top of the anchorage post.
6. Bury supply wiring cable in trench.
7. Place anchorage post into the hole and fill in the hole with packed soil, ensuring that
the post is vertical and secure.
8. Make wire splices from supply wiring coming out of anchorage post to bollard wiring
coming down from bollard shaft. For maximum wire run lengths, see the table below.
9. Push splices into bollard shaft.
10. Mount the bollard onto the anchorage post until the bottom of the bollard hits the
ground. Tighten (2) set screws to secure bollard to anchorage shaft. [Figure 2]
11. Connect supply wiring to main power. Turn on the main power.
Max. Run Length (ft) Per Wire Size: 2 Volt drop
Connected
LED Watts 18
40 46
30 61
20 92
15 122
10 183
5 366
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2021
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
Wire Size (AWG)
16 14 12
73 116 185
97 155 246
146 232 369
195 309 492
292 464 738
585 928 1477

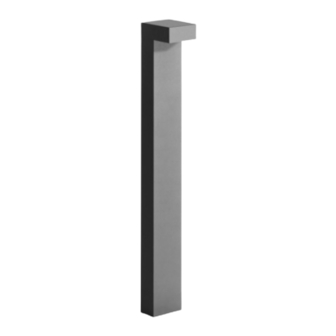

Garden and pathway bollard – Direct burial anchorage
Dimensions
A C
A: 4 3/8''
B: 27 1/2''
B
C: 4 3/8''
D

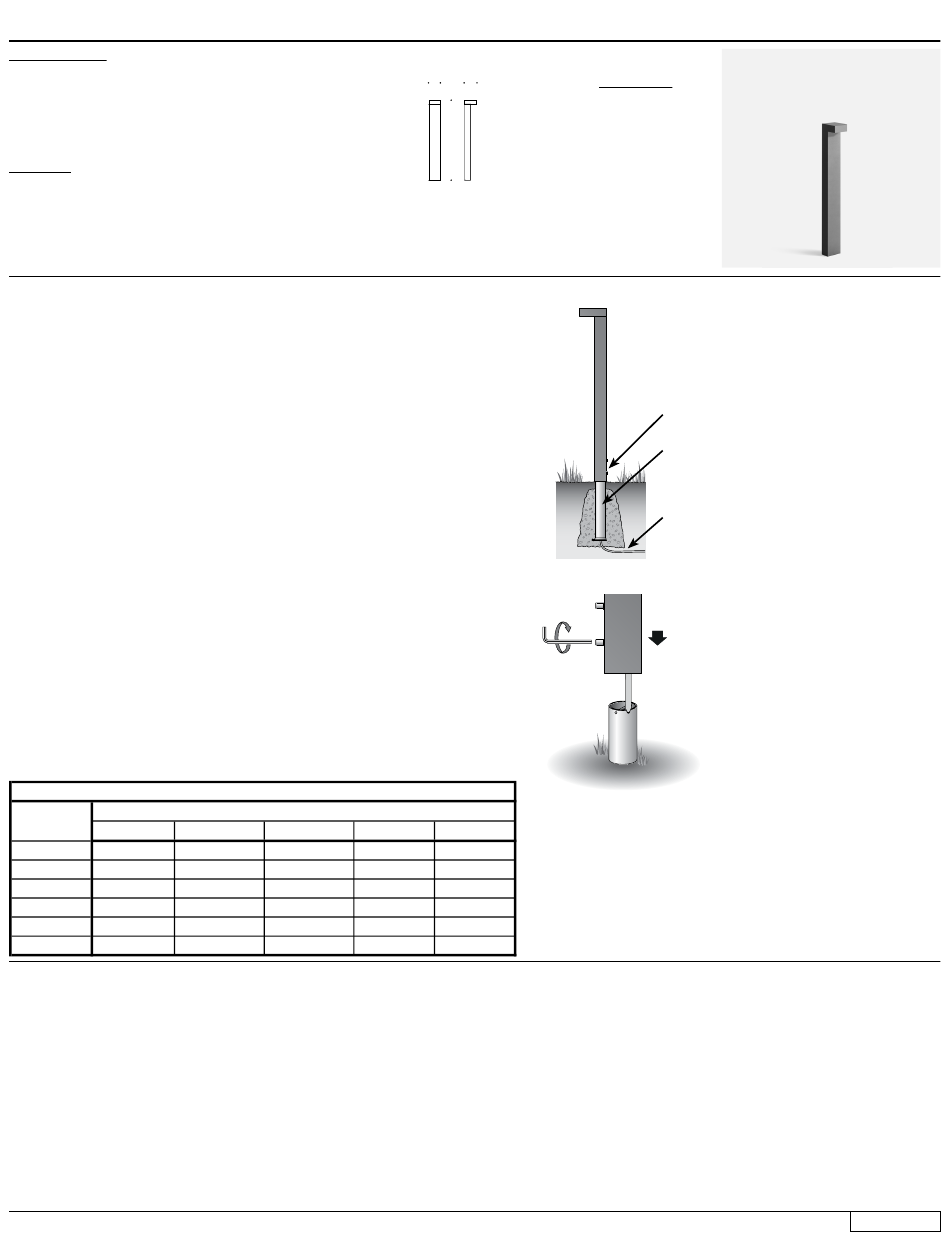

Figure 1: Product Diagram
Figure 2:Fixture Installation
10
294
392
588
784
1176
2353
Set Screws
Anchorage
Supply Wiring
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 218
Updated: 03/22/21
84 218 1 of 2
