BEGA 84 242 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
• 4mm Hex key
Overview:
LED Watts: 31.6W
System Watts: 38.0W
Controllability: 0-10V dimmable down to 0.1%
Weight: 51.1 lbs.
Protection Class: IP66
Notice to Installer:
1. See page 2 for specific product safety warnings.
2. For pole top applications only.
3. Slip fits 3" O.D. poles only.
4. For use with tenon or pole insertion depth of 5-3/8" only. Pole inner dimensions
2-3/8" minimum.
5. LED module and integral driver provided by BEGA.
6. Pole top luminaire supplied with 25 feet of cable to route through pole.
7. Fixture should not be opened during installation.
Installation: Luminaire
1. Lead luminaire wires into top of pole, route through pole.
2. Slip luminaire onto top of pole and secure by tightening (8) M8 set screws on pole,
evenly (12Nm). [Figure 1]
3. Obtain separately packaged pole-top extension and screw on top of luminaire.
Do not overtighten.
4. Make supply wiring and luminaire wiring connections inside pole base:
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
Dimming (if applicable):
DIMMING WIRE (+) TO POSITIVE LUMINAIRE DIM CONTROL WIRE
DIMMING WIRE (-) TO NEGATIVE LUMINAIRE DIM CONTROL WIRE
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2022
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

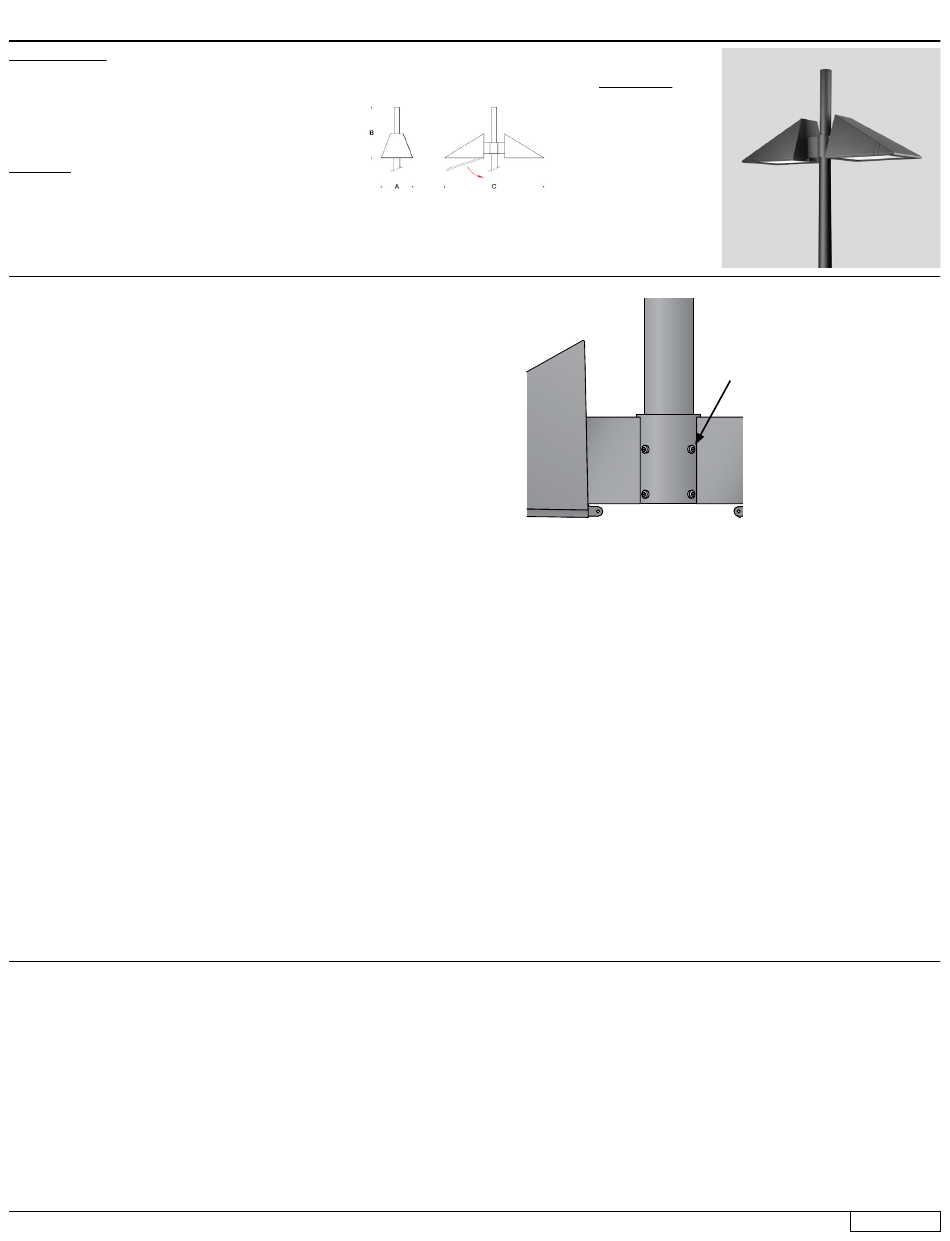

Pole top luminaire
Luminaire tête de mât

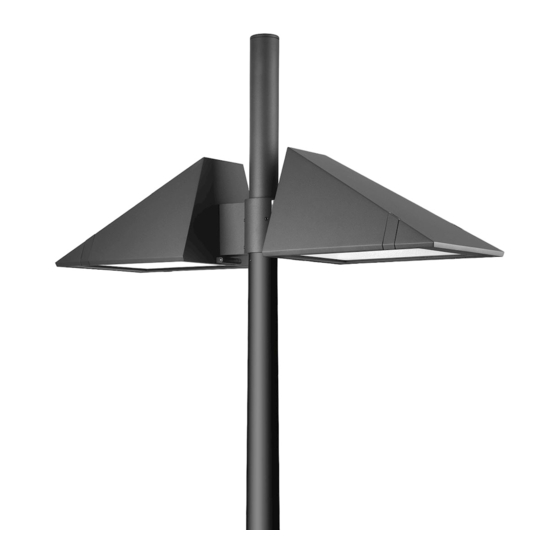

Pole-top luminaire – Asymmetric wide beam – Twin
Dimensions
A: 13 3/4"
B: 22 7/8"
C: 46 7/8"
Figure 1: Mounting Screws
Gebrauchsanweisung
Anwendung
Aufsatzleuchte mit asymmetrisch-bandf
Lichtstärkeverteilung.
Die asymmetrisch-bandförmige
Lichtstärkeverteilung eignet sich besond
die Beleuchtung von Straßen nach
DIN EN 13201.
Für Lichtpunkthöhen von 3000 - 6000 m
Produktbeschreibung
Set Screws
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 242
Updated: 10/10/22
84 242 1 of 2
