BEGA 84 239 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
• 5mm hex head screwdriver
• Adjustable wrench
Overview:
LED Watts: 11.5W
System Watts: 18.0W
Controllability: 0-10V, TRIAC, and ELV dimmable
Weight: 13.9 lbs.
Protection Class: IP65
STANDARD FIXTURE INSTALLATION (SEE PAGE 2 FOR OPTIONS)
Notice to Installer:
1. See page 3 for specific product safety warnings.
2. Fixture may be damaged if connected to conduit systems that contain water - Article
300-5G of the National Electric Code requires that "Conduits or raceways through which
moisture may contact energized live parts shall be sealed or plugged at either or both
ends."
3. 79817 anchorage kit (included) must be installed in concrete pad/foundation.
4. It is recommended that when installing in planting areas the bollard base be slightly
elevated to avoid prolonged submerging during heavy rains.
5. Wet location listing does not imply suitability for exposure to standing water for long
periods of time.
6. LEDs are high-quality electronic components! Please avoid touching the light
output opening of the LED directly during installation.
79817 Anchor Kit Installation:
1. Provide means to bring supply wiring to the bollard in accordance with local code. The
template has a 2-3/8" conduit hole for conduit entry.
2. Assemble anchorage kit. Unscrew the (3) hex bolts from the female couplers. Remove
each hex bolt and washer. Align each anchor bolt with the hole in the template. Attach
each anchor bolt to the template by replacing the washer and hex bolt and tightening.
3. Determine the finished grade for the application. Use leveling hardware to adjust template
to desired finished height after pouring.
4. Install anchorage kit using either method:
A. Attach template to forming or cross bracing using the (2) nail holes provided in
the template. Level template properly. Pour concrete.
B. Insert anchorage assembly into poured concrete. Concrete must be vibrated to
ensure proper anchorage setting. Level template properly.
84239 Luminaire Installation:
1. Remove (3) hex bolts and washers, once anchorage is set.
2. Leave template in place to provide a smooth, flat surface to mount the base.
3. Turn the base plate and remove from bollard, after loosening the 5mm set screw.
4. Align base plate holes with anchorage holes.
5. Bolt the base plate to the anchorage kit using the (3) hex bolts and washers
6. Make supply wiring connections to wire leads from driver inside the fixture
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE;
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE;
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE.
Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE DRIVER DIM CONTROL WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE DRIVER DIM CONTROL WIRE
7. Place the bollard over the base plate so that the (3) notches in the base plate align with
the top.
8. Secure the bollard by tightening the 10mm set screw at the base.
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2021
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

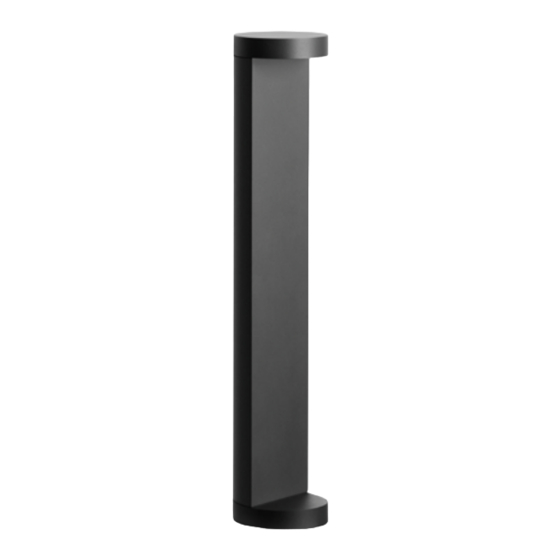

Shielded Bollard - Asymmetric
Dimensions
A A
A: 7-1/2"
B: 39-3/8"
A
B
B
(3) BOLTS
BOLLARD BASE
(NOT INCLUDED
IN ANCHOR KIT)
ANCHOR TEMPLATE
Figure 1:
3 " BOLT CIRCLE
15
16
11"
" BOLT HOLE
3
8
2 " CONDUIT HOLE
3
8
Figure 2:
(3) ANCHOR BOLTS
(5/16" - 18 X 10")
"
3
4 6 "
5
8
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
REV CHANGED BY
84 239
1000 BEGA Way, Carpinte
APPROVED:
TYPE:
PROPRIETARY AND CONFIDE
THE INFORMATION CONTAINED IN
OF BEGA NORTH AMERICA, INC.
ANY REPRODUCTION IN PART OR
PERMISSION OF BEGA NORTH AM
Updated: 03/02/21
84 239 1 of 3
