Mounting the Sensor

The window/door sensor includes a sensor and a magnet that need line up.

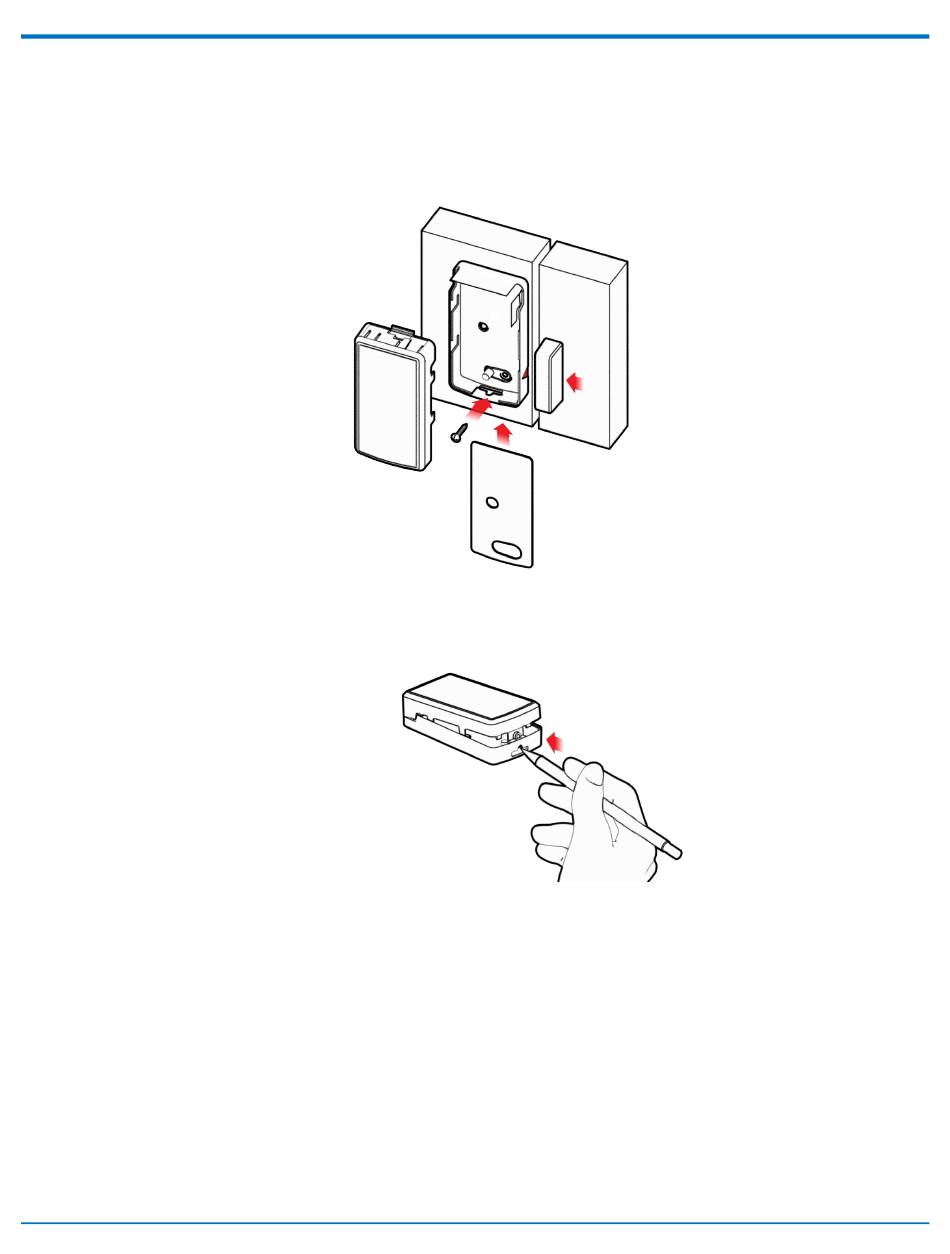

1. Use the included large adhesive pad to secure the sensor case on the door or window frame with the
notch facing the door or window as shown.
For increased security using the included tamper screw:
1.
2.
3.
4.
The tab will break away and send a tamper alert if the case is forcibly removed.
.
5. Attach the magnet piece to the door so it aligns with the natch on the sensor.
®
Radio Bridge LoRaWAN
Open the case. To do this, use a pen or similar object to press the button on the opposite
side of the case.
Stick the adhesive pad where you want to install the sensor.
Attach the case over the adhesive using the included tamper screw as shown.
Reassemble the case.
