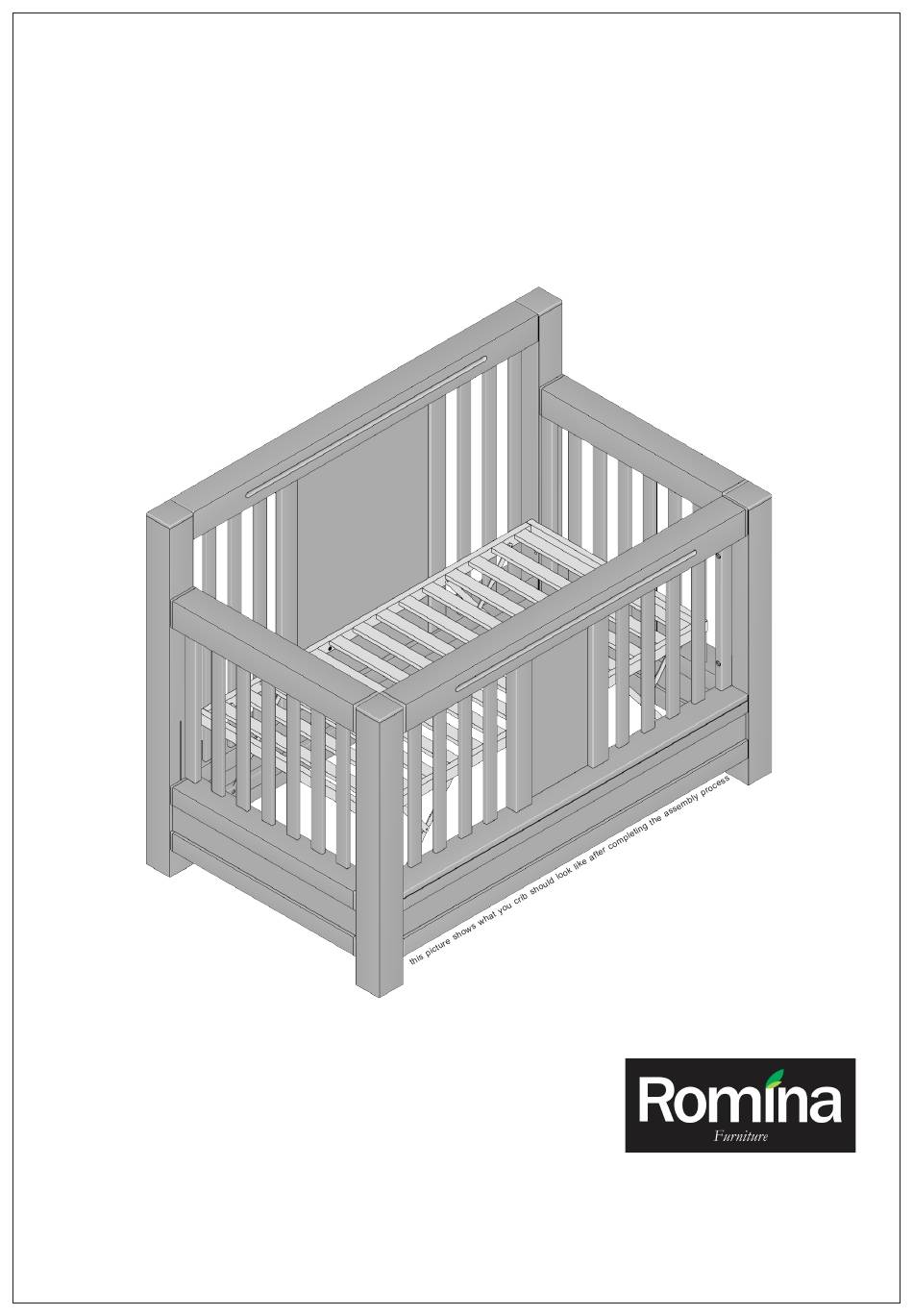

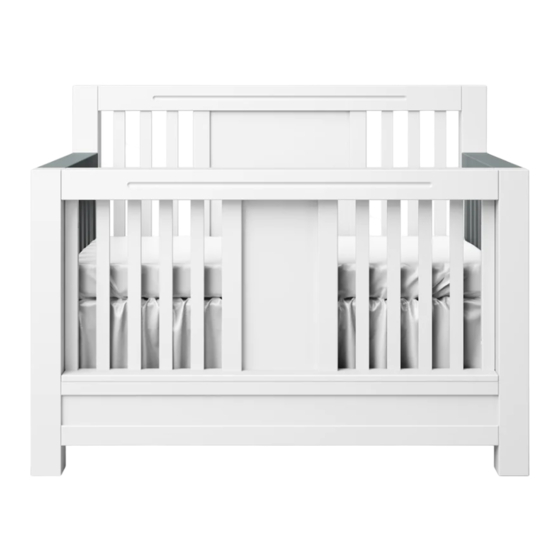

ASSEMBLY INSTRUCTIONS FOR THE
4501 VENTIANNI
THIS CRIB CONFORMS TO APPLICABLE
REGULATIONS
PROMULGATED
THE
CONSUMER
PRODUCT
COMMISION AND BY THE AMERICAN
SOCIETY FOR TESTING AND MATERIALS.
READ
ALL
INSTRUCTIONS
BEFORE
ASSEMBLING
CRIB. KEEP THE INSTRUCTION
BOOKLET FOR FURTHER USE.
NEVER
USE
THE
PLASTIC
SHIPPING
BAGS
OR
PLASTIC FILM AS MATTRESS
COVERS, AS THEY CAN CAUSE
SUFFOCATION.
MAKE SURE TO SELECT THE
CORRECT
SIZE
MATTRESS.
INFANTS CAN SUFFOCATE IN THE
GAPS BETWEEN THE CRIB SIDES
AND A MATTRESS THAT IS TOO
SMALL.
CONVERTIBLE CRIB
BY
SAFETY
THE
WARNING: THE PROPER USE OF THIS
OTHER
CRIB IS IMPORTANT FOR YOUR BABY'S
SAFETY. IN ORDER TO KEEP YOU
BABY SAFE AND SECURE, AS WELL AS
AVOID POTENTIAL INJURY OR DEATH,
PLEASE READ AND BECOME FAMILIAR
WITH ALL THE WARNINGS, CAUTIONS
AND INSTRUCTIONS IN THIS BOOKLET.
KEEP THIS INSTRUCTION BOOKLET
FOR FURTHER USE.
DO NOT THROW THIS BOOKLET AWAY!
4300 Northlake Ct, Ste E, Charlotte,
NC 28216
Phone: 980-585-1460
www.rominafurniture.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VENTIANNI 4501 and is the answer not in the manual?

Questions and answers

Related Manuals for Romina VENTIANNI 4501

Summary of Contents for Romina VENTIANNI 4501

  • Page 1 ASSEMBLY INSTRUCTIONS FOR THE 4501 VENTIANNI CONVERTIBLE CRIB THIS CRIB CONFORMS TO APPLICABLE REGULATIONS PROMULGATED CONSUMER PRODUCT SAFETY COMMISION AND BY THE AMERICAN SOCIETY FOR TESTING AND MATERIALS. READ INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP THE INSTRUCTION BOOKLET FOR FURTHER USE. NEVER PLASTIC WARNING: THE PROPER USE OF THIS...
  • Page 2 FASTENERS, MISSING PARTS, OR SHARP EDGES BEFORE AND AFTER ASSEMBLY AND FREQUENTLY DURING USE. SECURELY TIGHTEN LOOSE BOLTS AND OTHER FASTENERS. DO NOT USE CRIB IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT ROMINA FURNITURE FOR REPLACEMENT PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED. DO NOT SUBSTITUTE PARTS.
  • Page 3 Wood, like any natural material is likely to present variations of grain and texture which will result in slight color variations or richness in the finish. These differences make each Romina Furniture item as beautiful and unique as you and your baby are.
  • Page 4 Please refer to this number order to identify the correct one. Be sure to use the proper size in the event of needing to contact ROMINA and shape specified in the instructions. Be sure to COMPLETELY FURNITURE or your local supplier.
  • Page 5 STEP 1 (Two adults are required in order to complete this step) Attach the stabilizing bars (SB) to the left and right panels (LP & RP) of the crib using 4 medium Allen bolts (4) and 4 washers (7). Align the tenons attached at the end of the stabilizing bars with the lower holes drilled on the inner faces of the left and right panels of the crib.
  • Page 6 FIGURE 2 WARNING! COMPLETELY TIGHTEN! STEP 2 (One adult is required in order to complete this step) There are three different positions for the mattress support (the highest one being intended for a newborn child and the lowest one for a child that is maximum 35” tall - see cautions note). You must adjust the height of the mattress support (depending on your child’s height), by inserting all 4 bolts and nuts (Y) in the same position (see FIGURE 2).
  • Page 7 STEP 3 (Two adults are required in order to complete this step) Attach the mattress support (MS) to the stabilizing bars (previously mounted in STEP 1) by using the 4 round head bolts (6), 4 washers (8) and a Phillips screwdriver (which is not included). The lock washer must be attached to the bolt before inserting it through the metal bracket of the mattress support.
  • Page 8 STEP 4 (Two adults are required in order to complete this step) Take the footboard of your crib (FB) and carefully place it on the floor with the drilled side facing upwards, while being careful not to scratch its finish. Then, using 4 medium Allen bolts (4), 4 washers (7) and the Allen wrench supplied (1), attach the right and left panels (RP &...
  • Page 9 STEP 7 (Two adults are required in order to complete this step) Turn your crib back on its feet. Using the Allen wrench (1) supplied, you must completely tigten all 8 Allen bolts (4+7) and (5+7)which remained untightened from all previous steps (see FIGURE 6). REMINDER You have a total of 8 Allen bolts, distributed as following: - 4 large bolts (5+7) in the headboard (HB);...
  • Page 10 ASSEMBLY INSTRUCTIONS FOR THE 4501 VENTIANNI DAY BED OPTION THIS CRIB CONFORMS TO APPLICABLE REGULATIONS PROMULGATED CONSUMER PRODUCT SAFETY COMMISION AND BY THE AMERICAN SOCIETY FOR TESTING AND MATERIALS. READ INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP THE INSTRUCTION BOOKLET FOR FURTHER USE. NEVER PLASTIC WARNING (FOR DAY BED OPTION ONLY):...
  • Page 11 STEP A Using the supplied Allen wrench (1), completely unscrew the 4 Allen bolts (x) (previously mounted in the factory) located 2 by 2 on the lateral sides of the legs. Afterwards, remove the middle panel (MP) by pulling it upwards and then towards yourself (see FIGURE A).
  • Page 12 STEP B (Two adults are required in order to complete this step) Carefully take the crib and place it with the footboard (FB) facing towards the floor, making sure not to scratch the finish (see FIGURE B). Using the supplied Allen wrench (1) and a Phillips screwdriver (which is not supplied), completely unscrew both Allen bolts (4+7), which fix the stabilizing bar (SB) and both round head bolts (6+8), which fix the mattress support (MS) to the front stabilizing bar.
  • Page 13 STEP B (Two adults are required in order to complete this step) Attach the wooder rail (WR) and fix it using both small Allen bolts (3) and the supplied Allen wrench (1). Rotate the front stabilizing bar (SB) back to its original position and fix it using both medium Allen bolts and washers (4+7) removed earlier.
  • Page 14 Adjusting the mattress support - STEP 1 Carefully take the crib and place it with the footboard (FB) facing towards the floor, making sure not to scratch the finish (see FIGURE B). Using a Phillips screwdriver (which is not supplied), completely unscrew all 4 round head bolts (6+8), which fix the mattress support (MS) to the stabilizing bars.
  • Page 15 NOTE: YOUR 4501 CONVERTIBLE CRIB CAN BE CONVERTED INTO A FULL SIZE BED WITH THE PURCHASE OF ROMINA ITEM CODE CKC 4501 (CONVERSION KIT FOR CRIBS, CODE 4501). THE ASSEMBLY INSTRUCTIONS FOR THE FULL SIZE BED OPTION CAN BE FOUND INSIDE OF THE CKC 4501 PACKAGE.
  • Page 16 PERIODICALLY INSPECT CRIB FOR DAMAGED HARDWARE, LOOSE JOINTS OR SPLINTERED EDGES. DO NOT USE CRIB IF PARTS ARE DAMAGED OR BROKEN! CONTACT YOUR DEALER OR ROMINA FURNITURE FOR ASSISTANCE AND REPLACEMENT PARTS. PLEASE BE SURE TO HAVE YOUR MODEL CODE WRITTEN DOWN BEFORE YOU MAKE CONTACT.
  • Page 17 (PAGE INTENTIONALLY LEFT BLANK)
  • Page 18 (PAGE INTENTIONALLY LEFT BLANK)
  • Page 19 (PAGE INTENTIONALLY LEFT BLANK)
  • Page 20 Regular cleaning with mild soap on a soft cloth, followed by a clean damp cloth, then a dry cloth, will preserve the original luster and beauty of this fine finish of your Romina Furniture product. Visit www.rominafurniture.com for updates, special offers and more new designs.
